Body Control System Schematics (IPM Power and Ground)

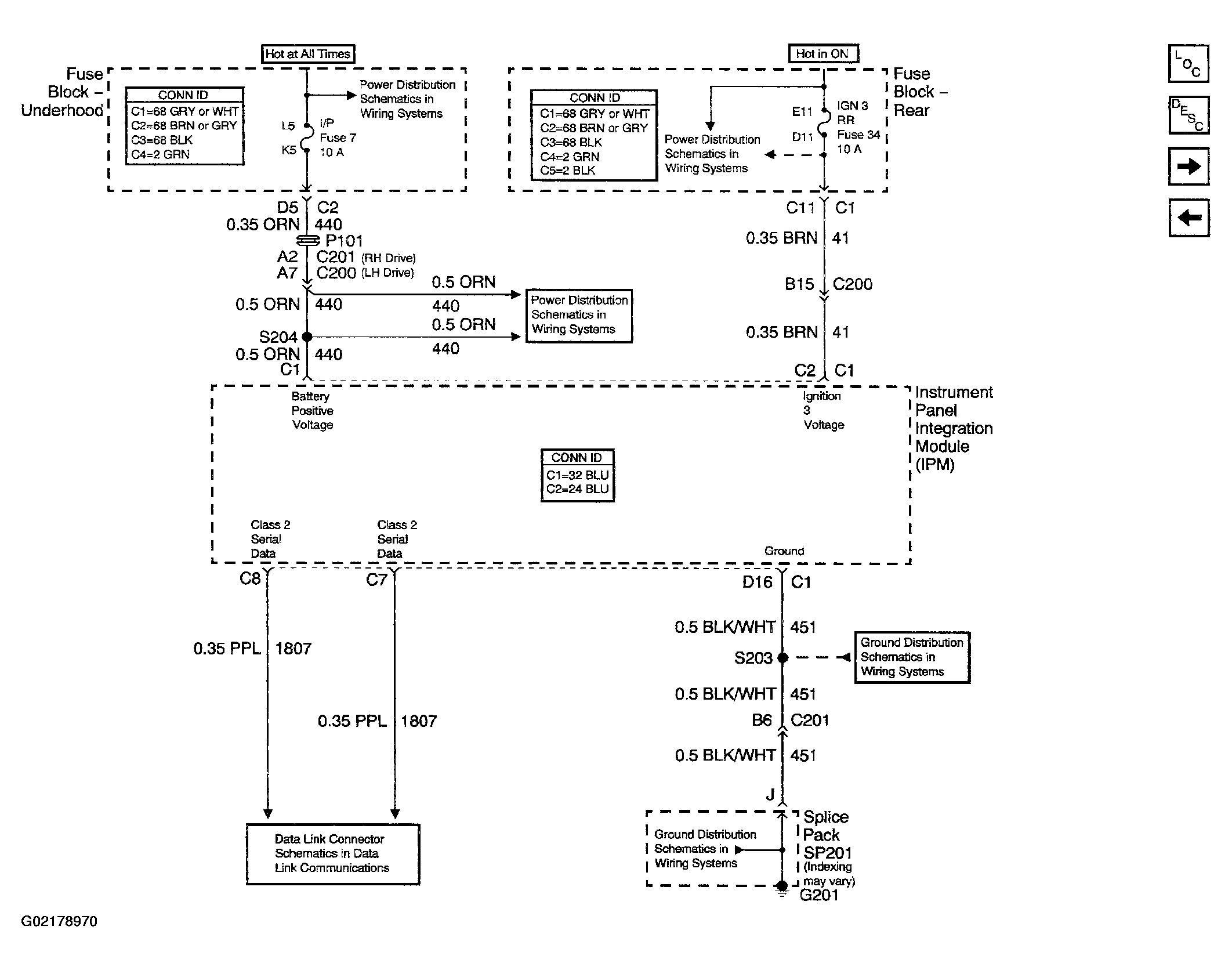

Fig 1: Body Control System Schematics (IPM Power & Ground)

G02178970

Courtesy of GENERAL MOTORS CORP.
