Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT  in Front Suspension.
  3. Rotate the stabilizer shaft downward.
  4. Remove the electrical harness clip from the power steering gear heat shield.
  5. Remove power steering gear heat shield mounting bolts.
  6. Remove the power steering gear heat shield.

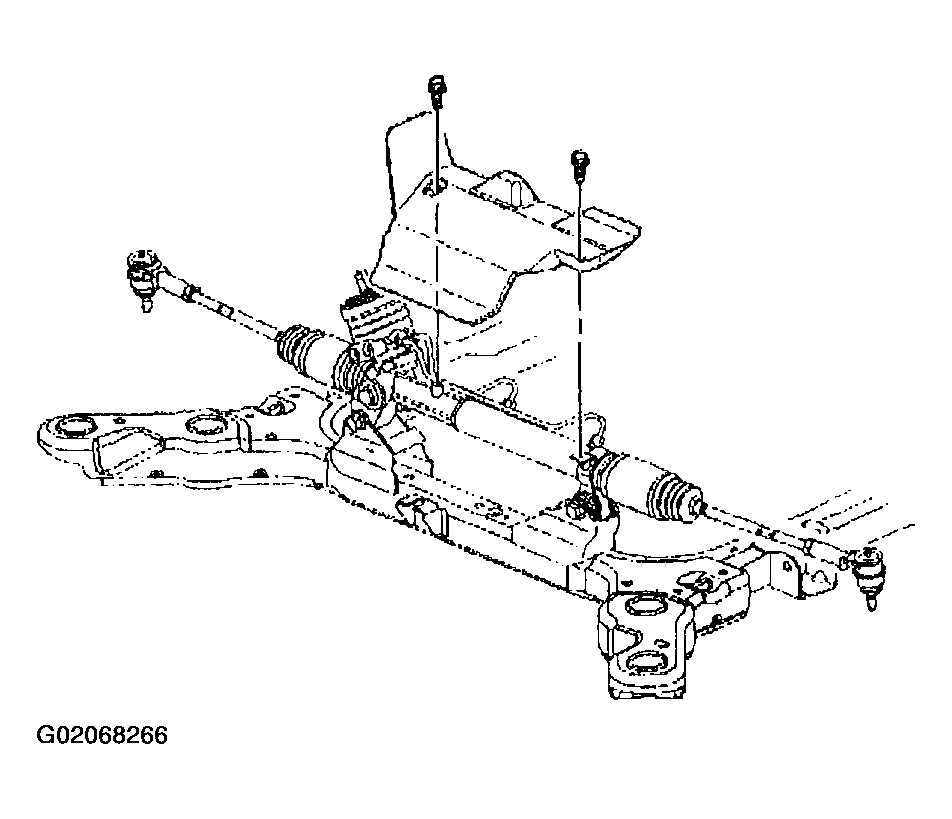

    Fig 1: Removing Power Steering Gear Heat Shield & Mounting Bolts
    G02068266Courtesy of GENERAL MOTORS CORP.
