TCC/Cruise Release Switch Connector End View

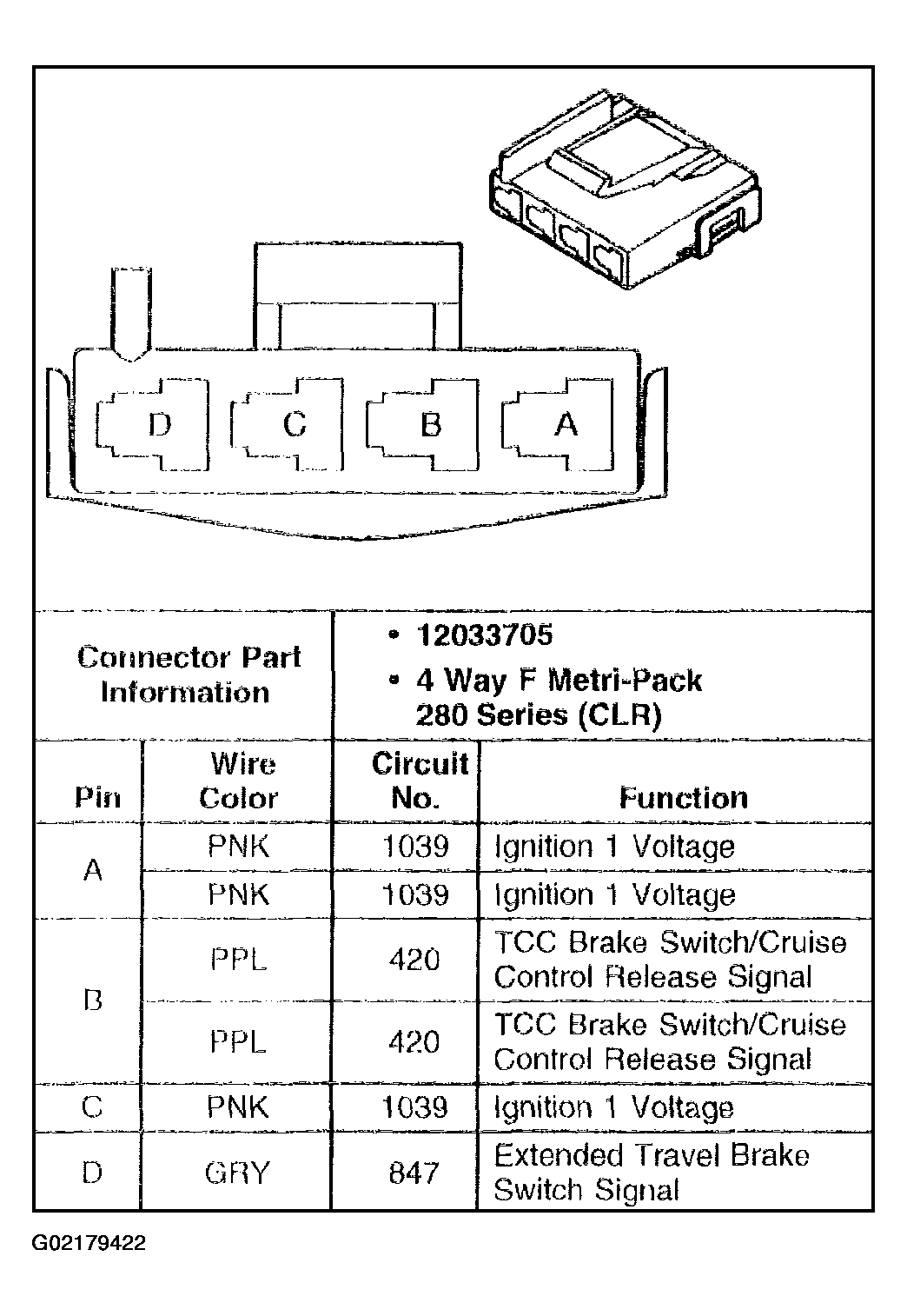

Fig 1: TCC/Cruise Release Switch

G02179422

Courtesy of GENERAL MOTORS CORP.
