Sunload Sensor Connector End View - Right

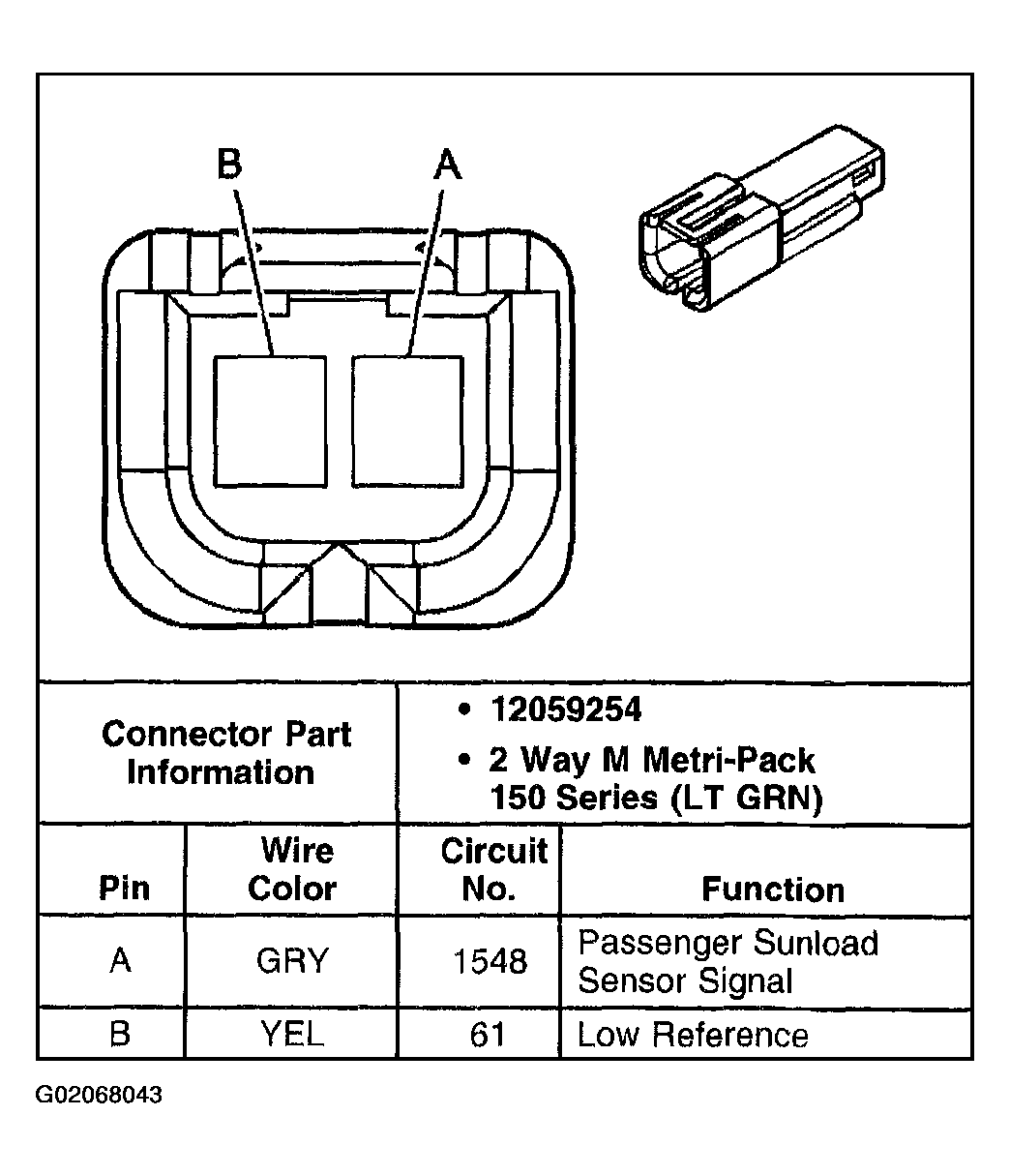

Fig 1: Sunload Sensor - Right

G02068043

Courtesy of GENERAL MOTORS CORP.
