Seat Front Vertical Position Sensor Connector End View - Driver

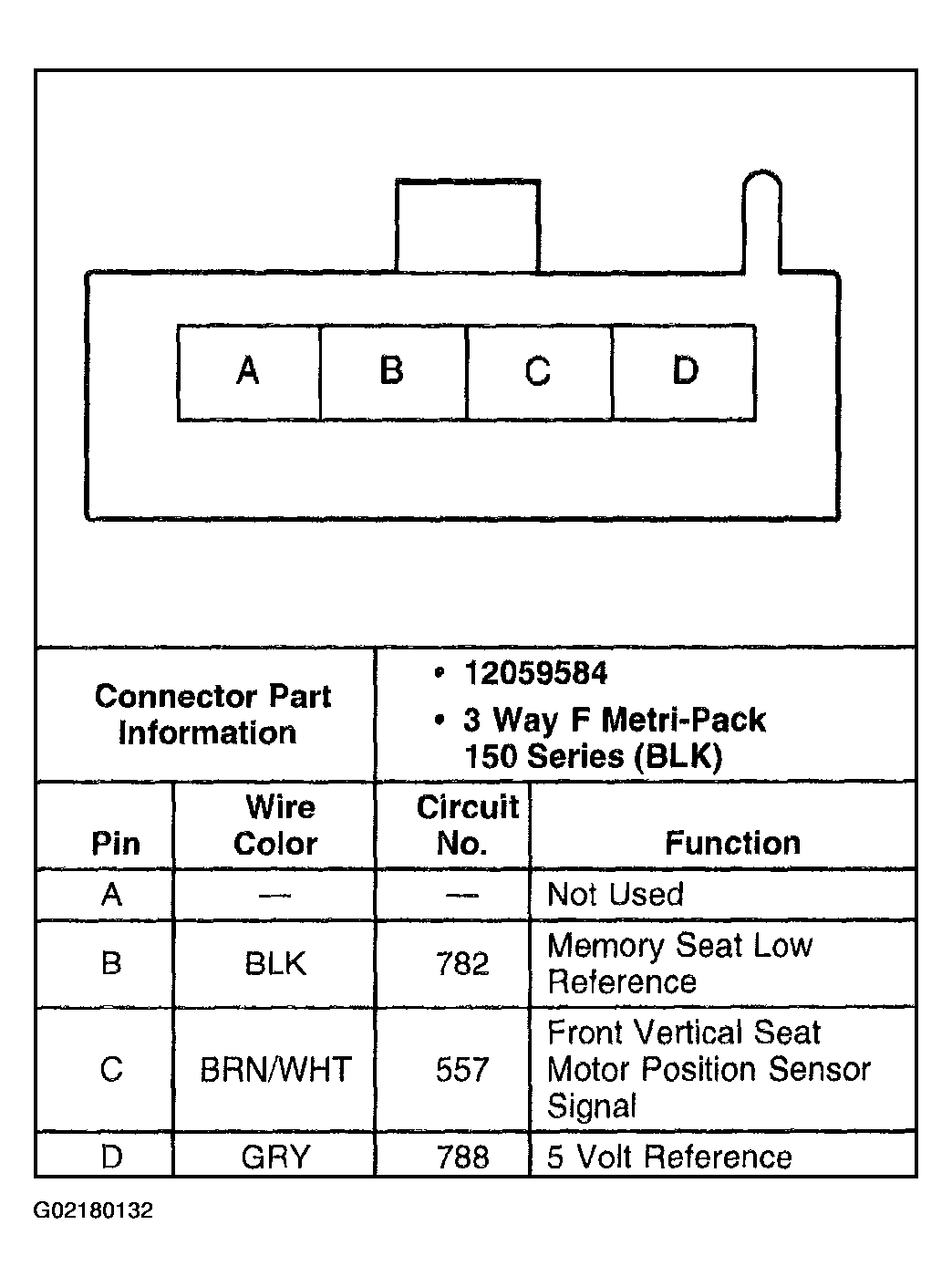

Fig 1: Seat Front Vertical Position Sensor - Driver

G02180132

Courtesy of GENERAL MOTORS CORP.
