Seat Adjuster Switch Connector End View - Driver

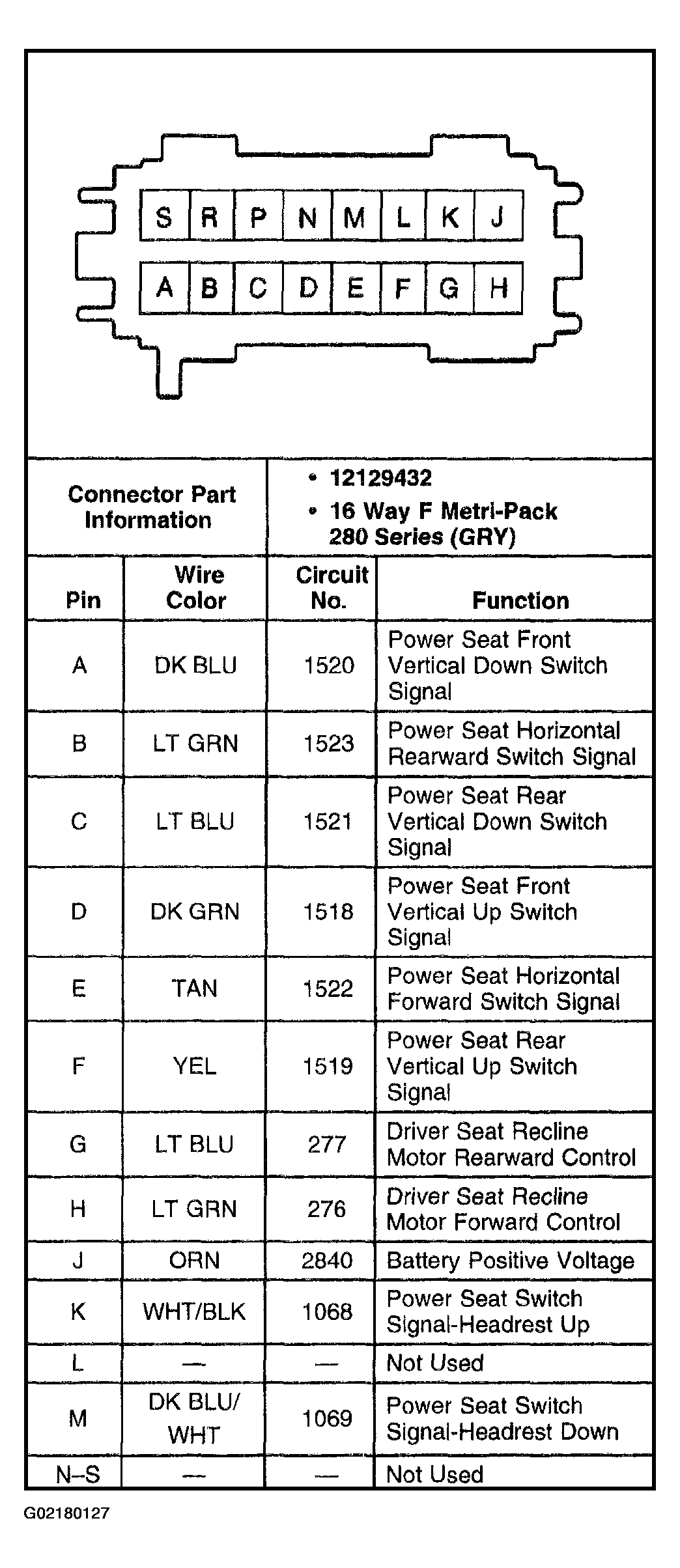

Fig 1: Seat Adjuster Switch - Driver (A45)
G02180127Courtesy of GENERAL MOTORS CORP.

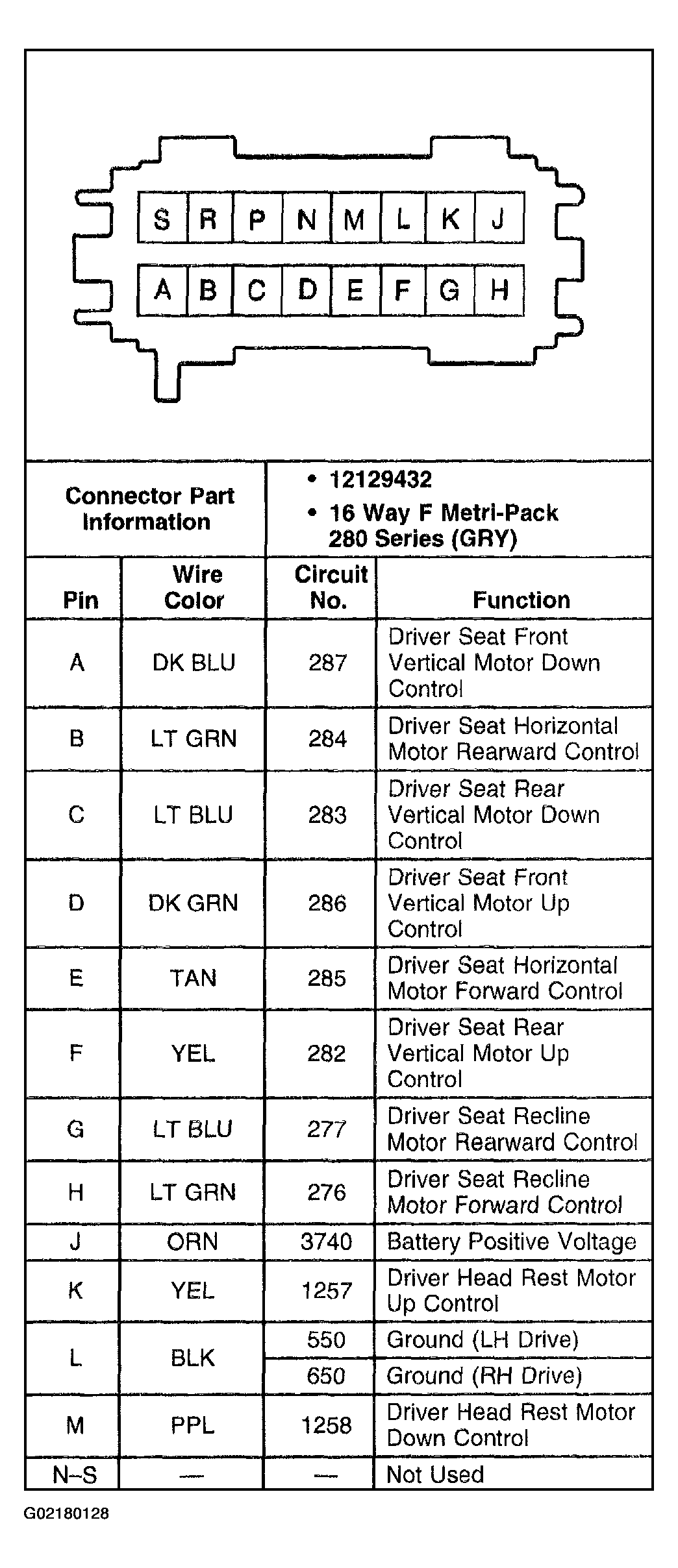

Fig 1: Seat Adjuster Switch - Driver (Without A45)
G02180128Courtesy of GENERAL MOTORS CORP.
