Left Rear Door Module (LRDM) Connector End View C5

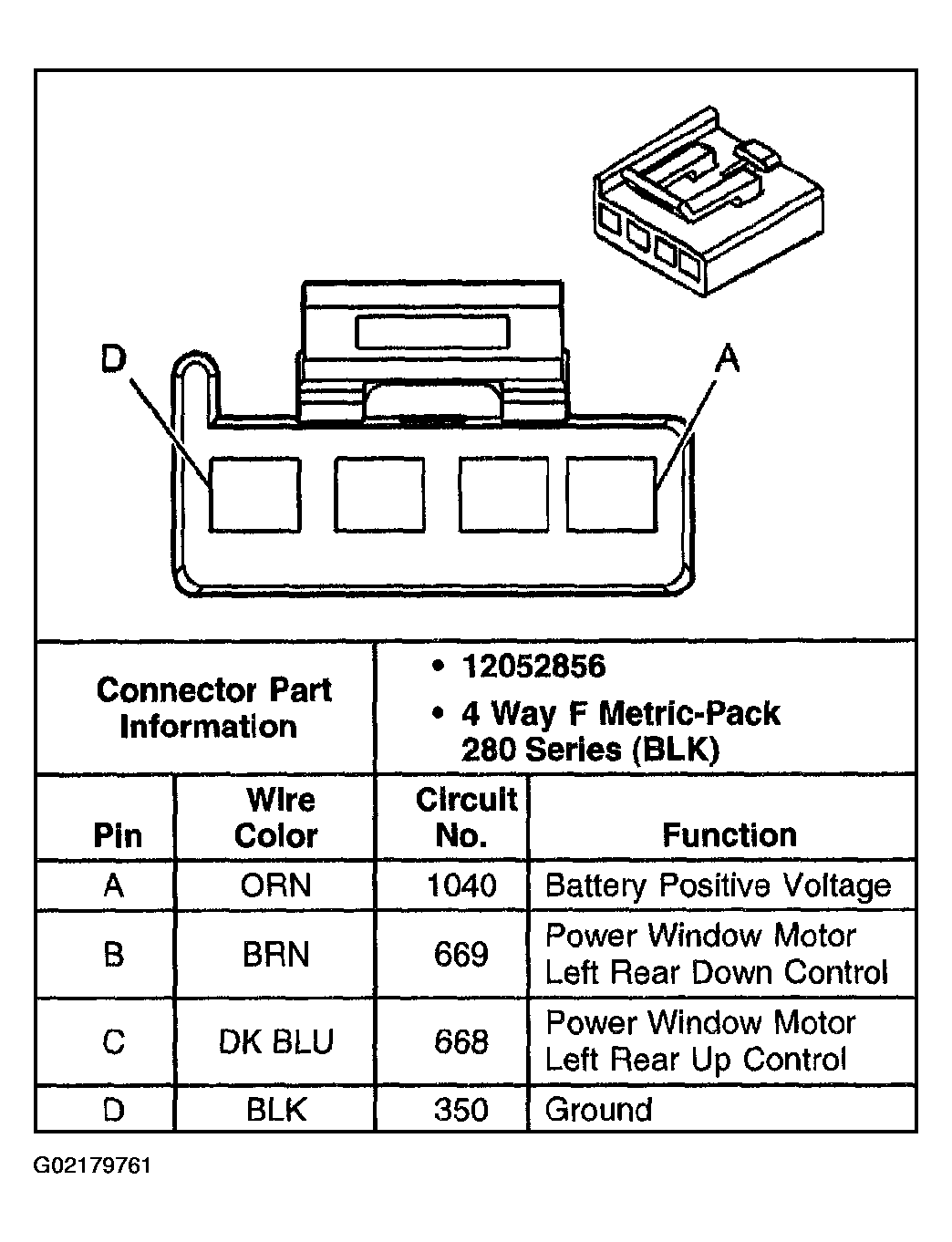

Fig 1: Left Rear Door Module (LRDM) C5

G02179761

Courtesy of GENERAL MOTORS CORP.
