Heated Seat Module Connector End View - LR C1

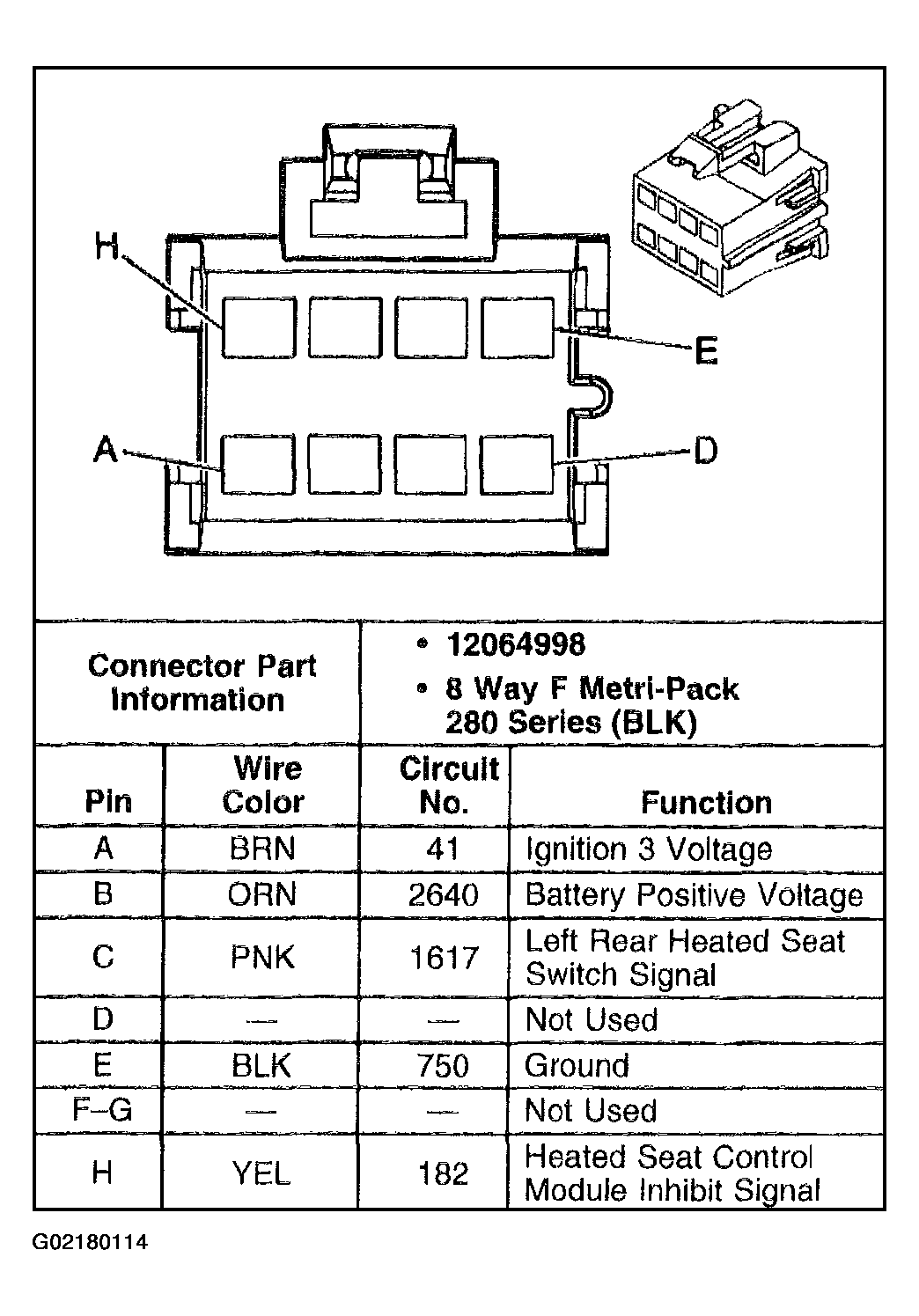

Fig 1: Heated Seat Module - LR C1

G02180114

Courtesy of GENERAL MOTORS CORP.
