Heated Seat Module Connector End View - Front Passenger C3

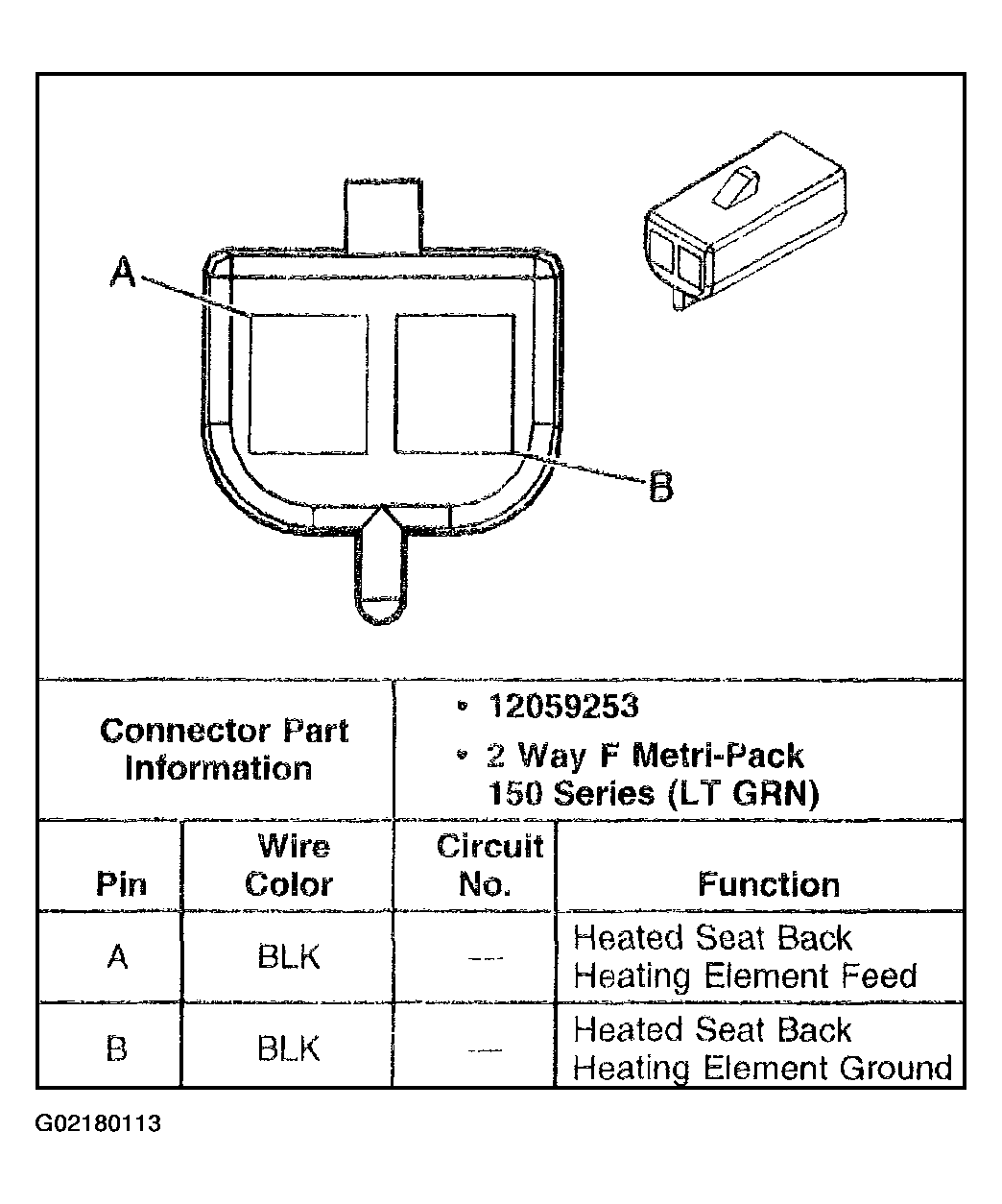

Fig 1: Heated Seat Module - Front Passenger C3

G02180113

Courtesy of GENERAL MOTORS CORP.
