Head Rest Position Sensor Connector End View - Driver

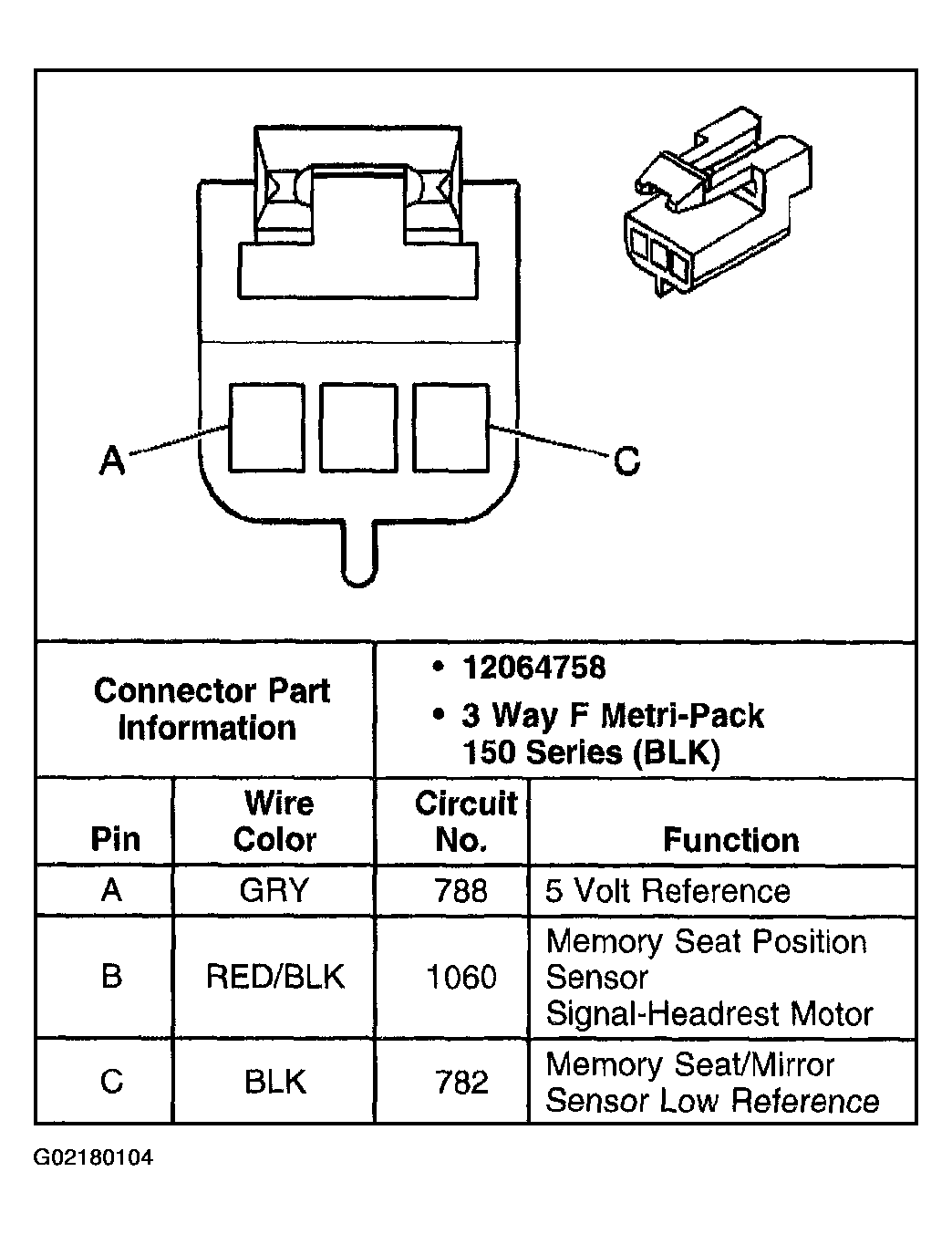

Fig 1: Head Rest Position Sensor - Driver

G02180104

Courtesy of GENERAL MOTORS CORP.
