HVAC Control Assembly Connector End View - Auxiliary

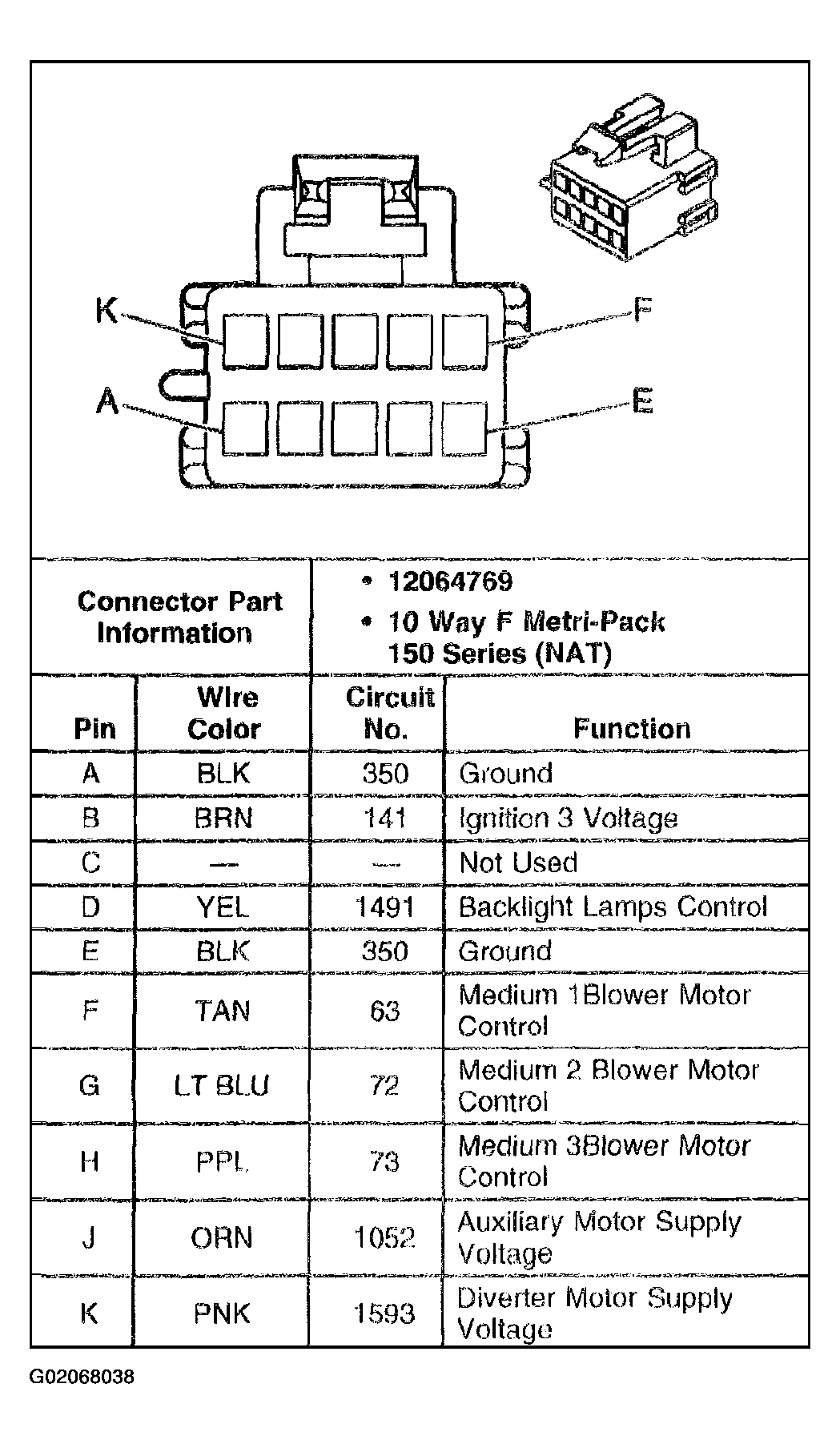

Fig 1: HVAC Control Assembly - Auxiliary

G02068038

Courtesy of GENERAL MOTORS CORP.
