Front Passenger Door Module (FPDM) Connector End View C5

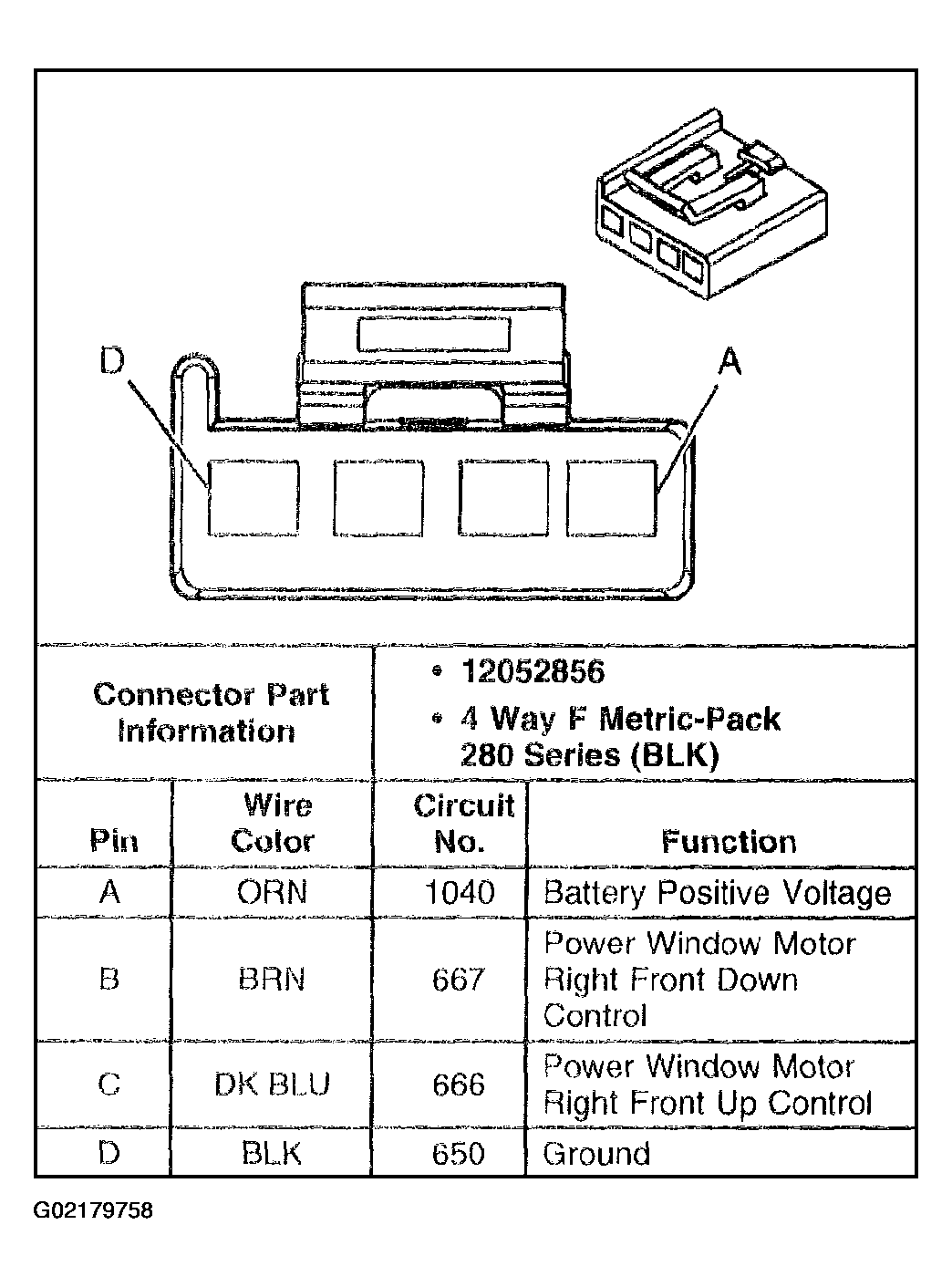

Fig 1: Front Passenger Door Module (FPDM) C5

G02179758

Courtesy of GENERAL MOTORS CORP.
