Front Passenger Door Module (FPDM) Connector End View C1

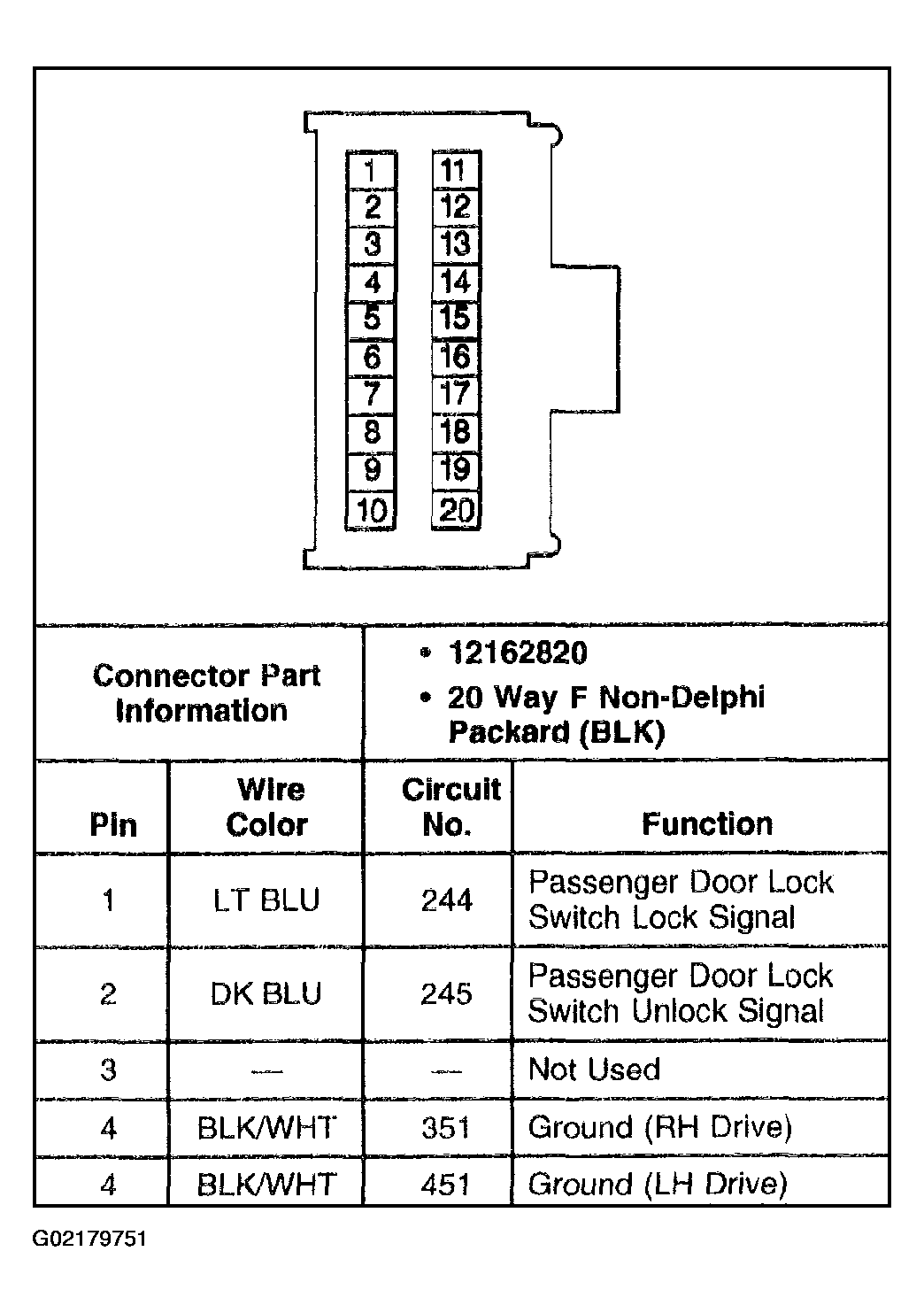

Fig 1: Front Passenger Door Module (FPDM) C1 (1 Of 2)
G02179751Courtesy of GENERAL MOTORS CORP.

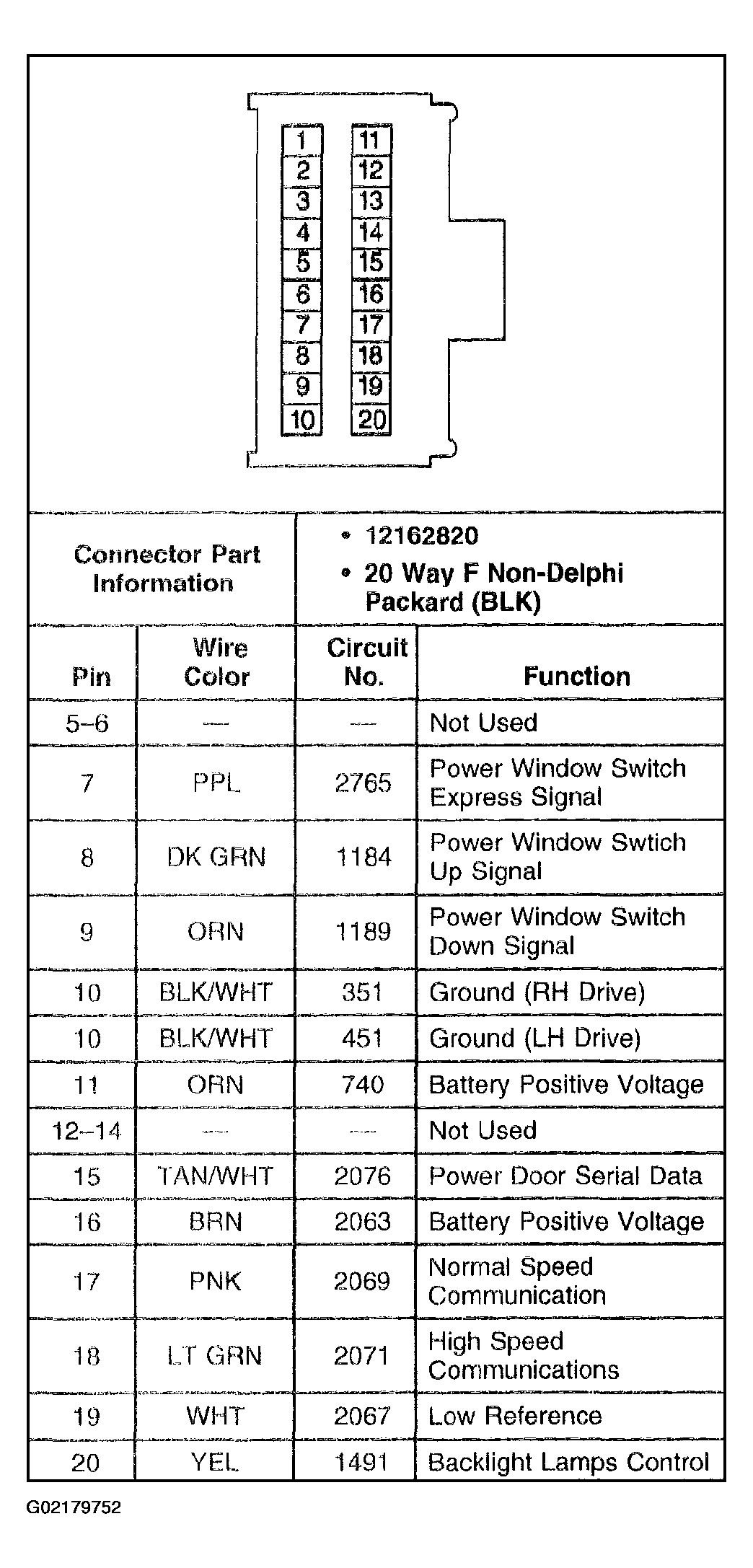

Fig 2: Front Passenger Door Module (FPDM) C1 (2 Of 2)
G02179752Courtesy of GENERAL MOTORS CORP.
