Driver Door Module (DDM) Connector End View C5

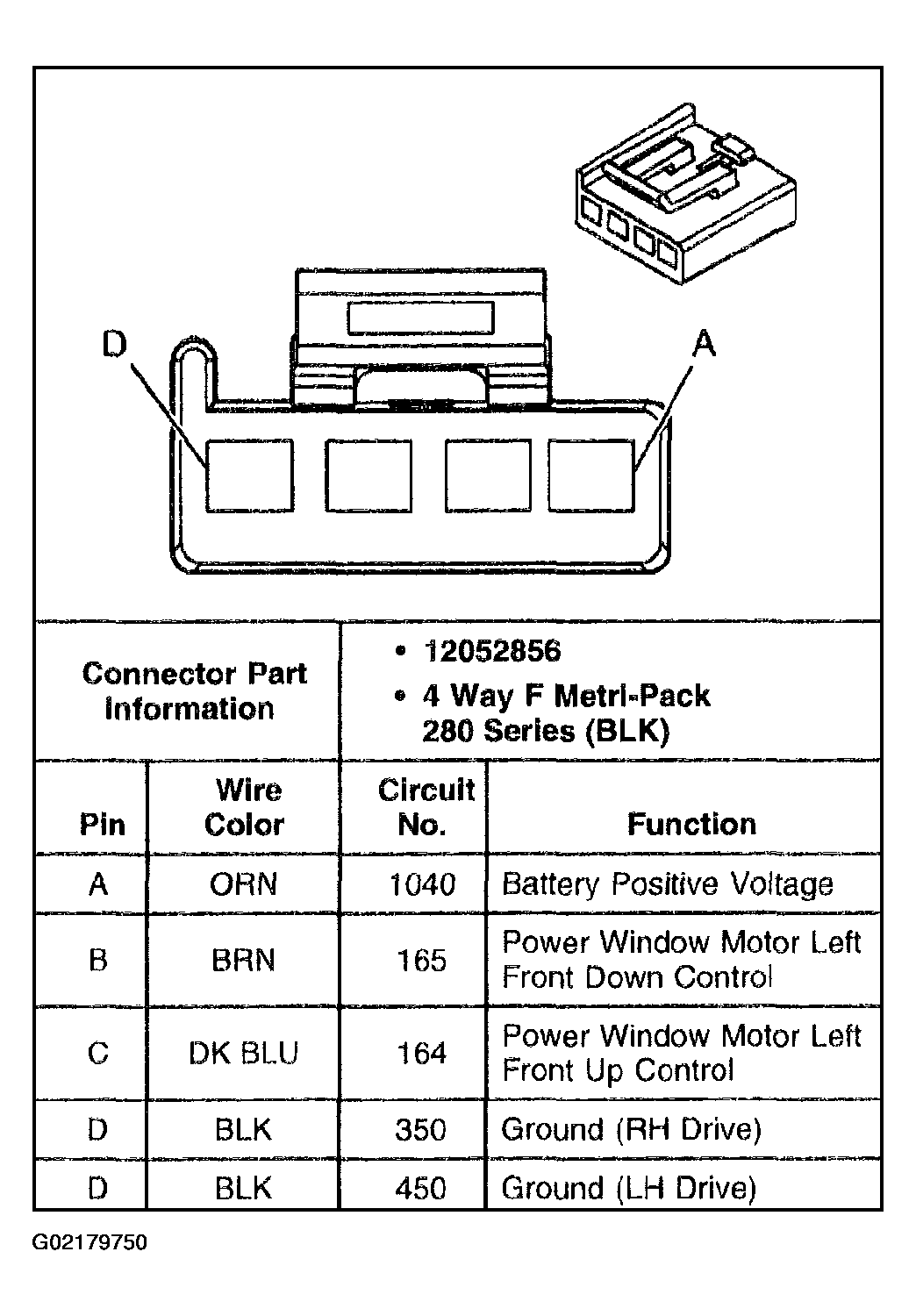

Fig 1: Driver Door Module (DDM) C5

G02179750

Courtesy of GENERAL MOTORS CORP.
