Door Lock Switch Connector End View - LR

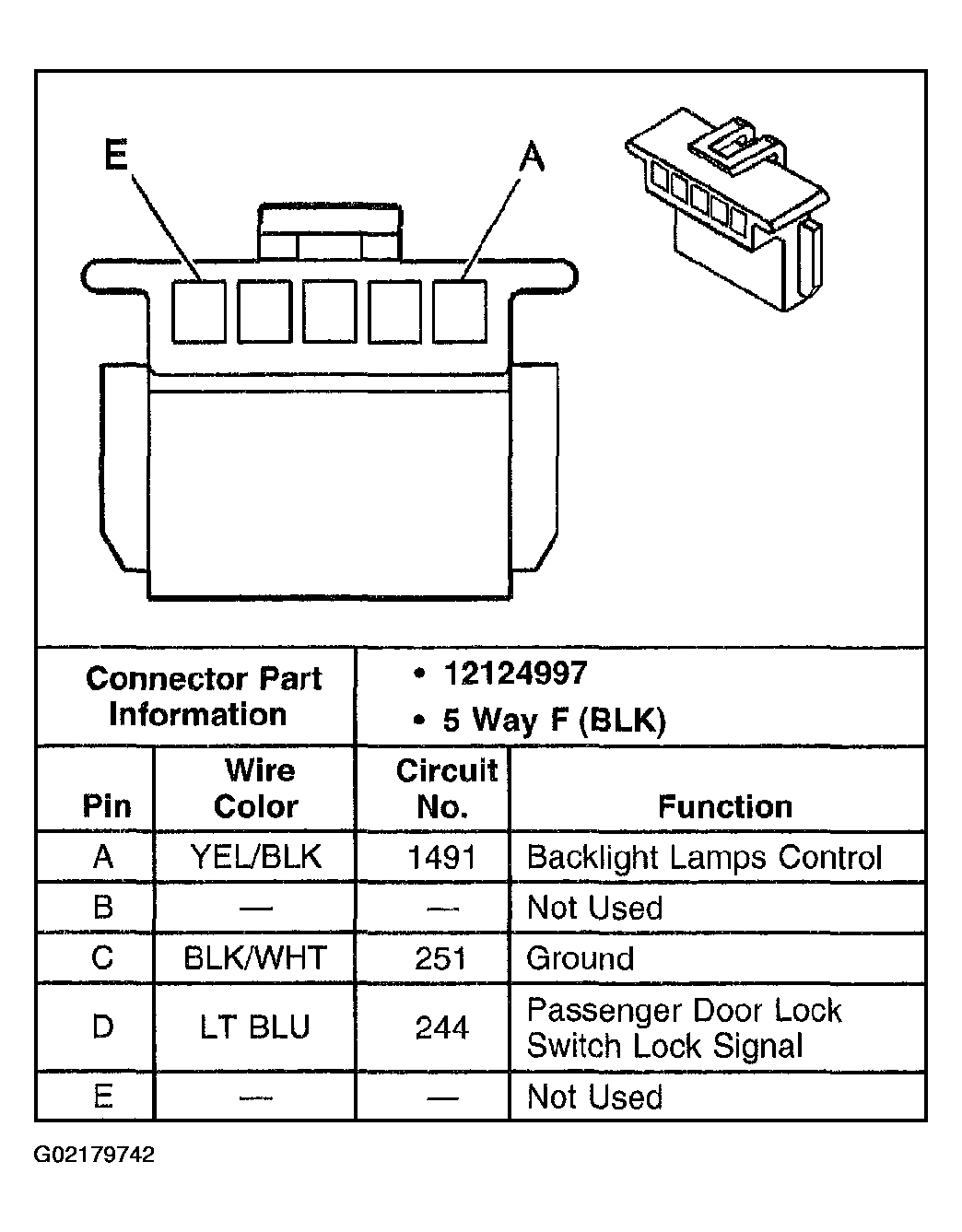

Fig 1: Door Lock Switch - LR

G02179742

Courtesy of GENERAL MOTORS CORP.
