Door Lock Switch Connector End View - Driver

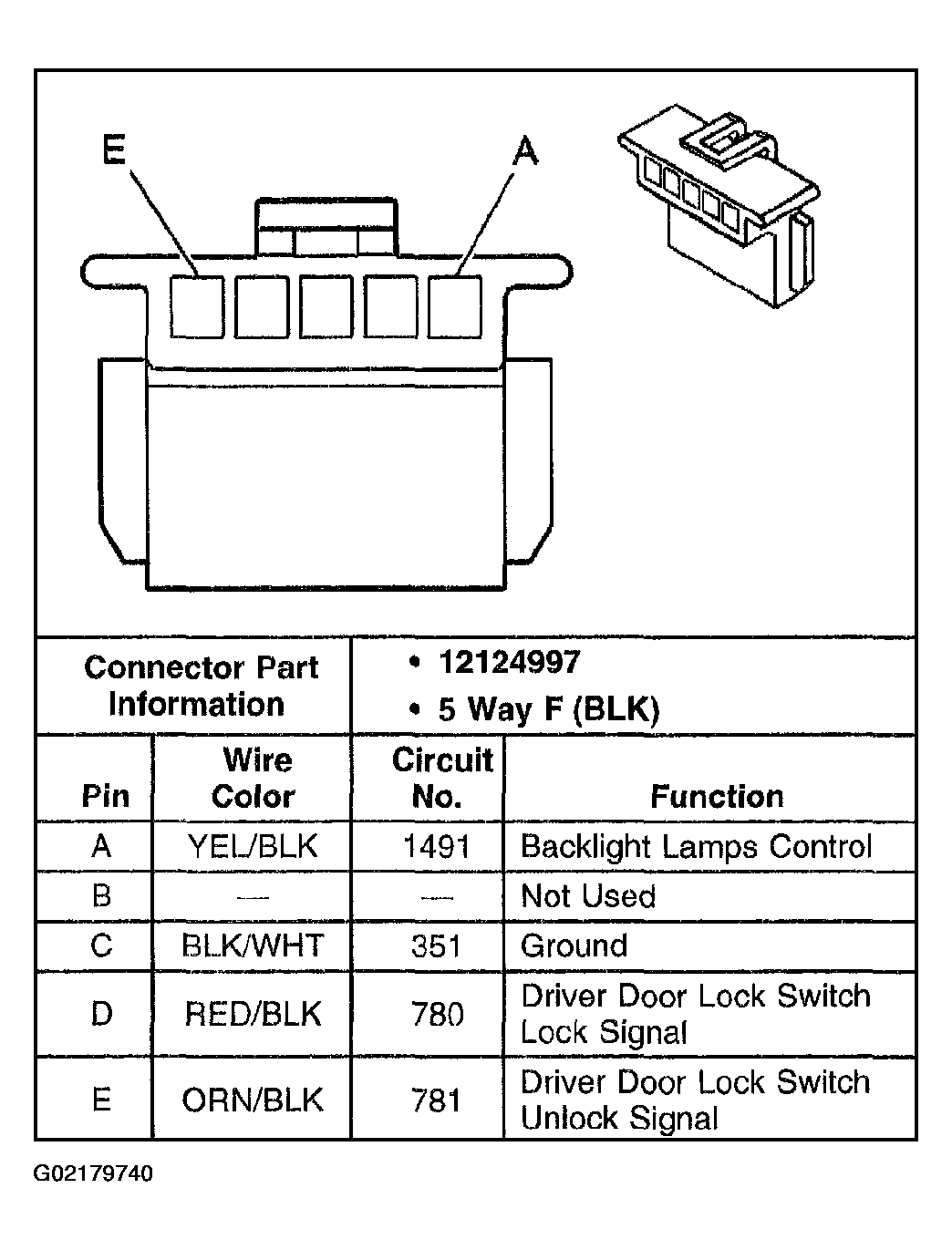

Fig 1: Door Lock Switch - Driver

G02179740

Courtesy of GENERAL MOTORS CORP.
