Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry the trim cover outward in order to remove the cover from the rain sensor module.
  2. Remove the trim cover from the rain sensor module.

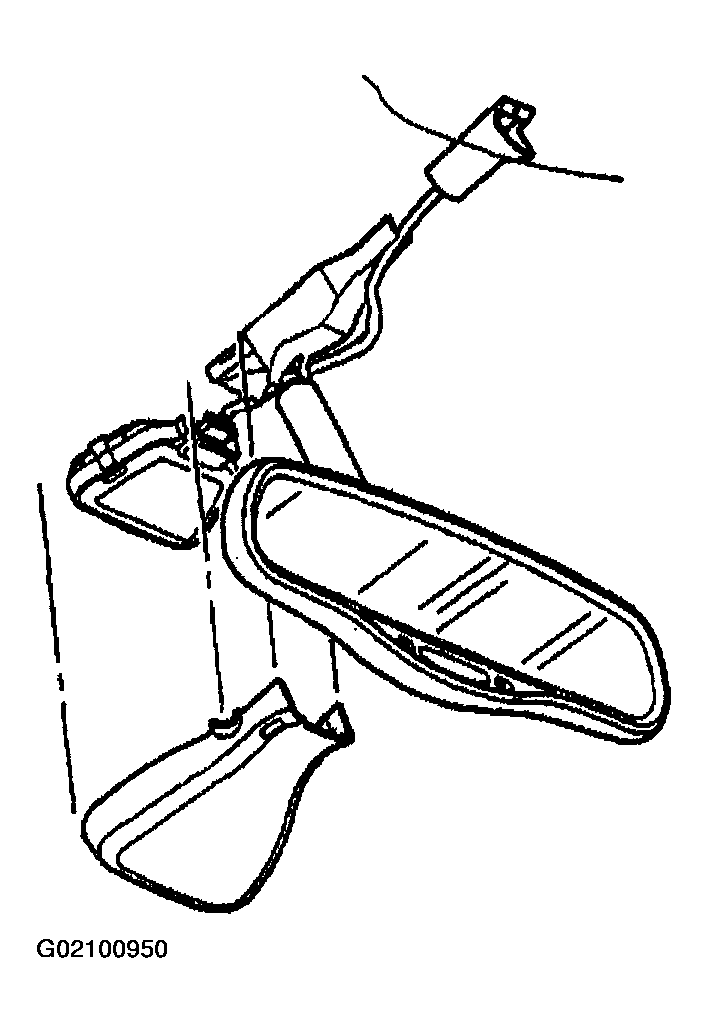

    Fig 1: Removing Trim Cover From Rain Sensor Module
    G02100950Courtesy of GENERAL MOTORS CORP.
  3. Release the windshield coupler retaining clips.
  4. Remove the rain sensor module.
  5. Disconnect the electrical connector from the rain sensor module.

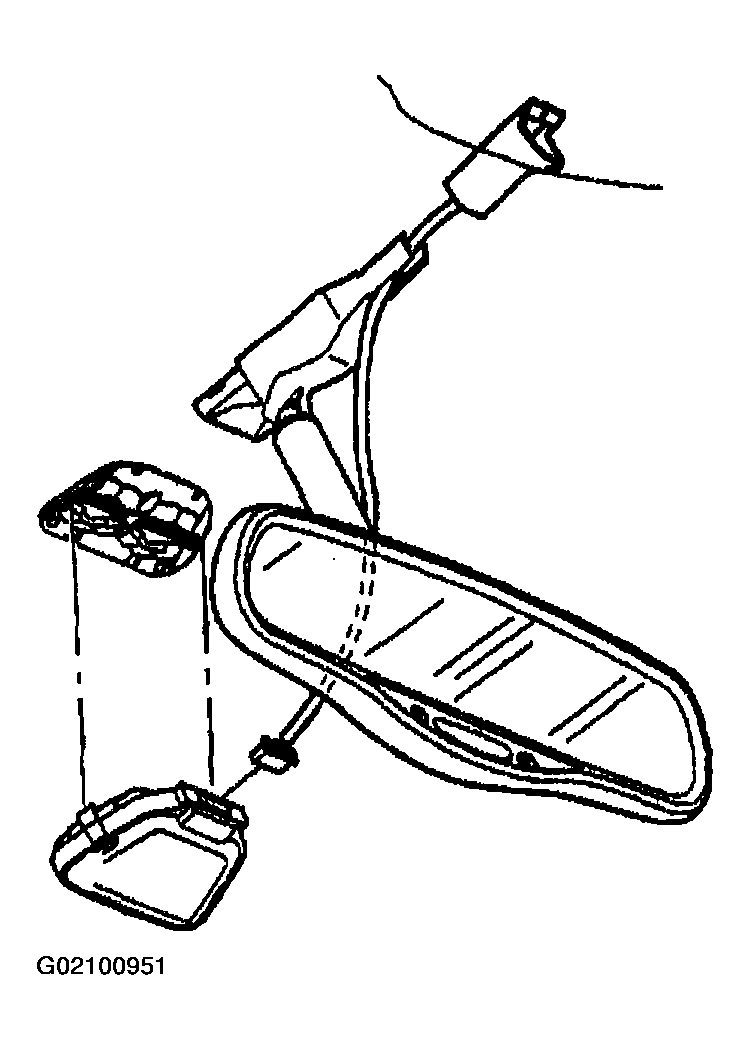

    Fig 2: Disconnecting Electrical Connector From Rain Sensor Module
    G02100951Courtesy of GENERAL MOTORS CORP.
