PID Values

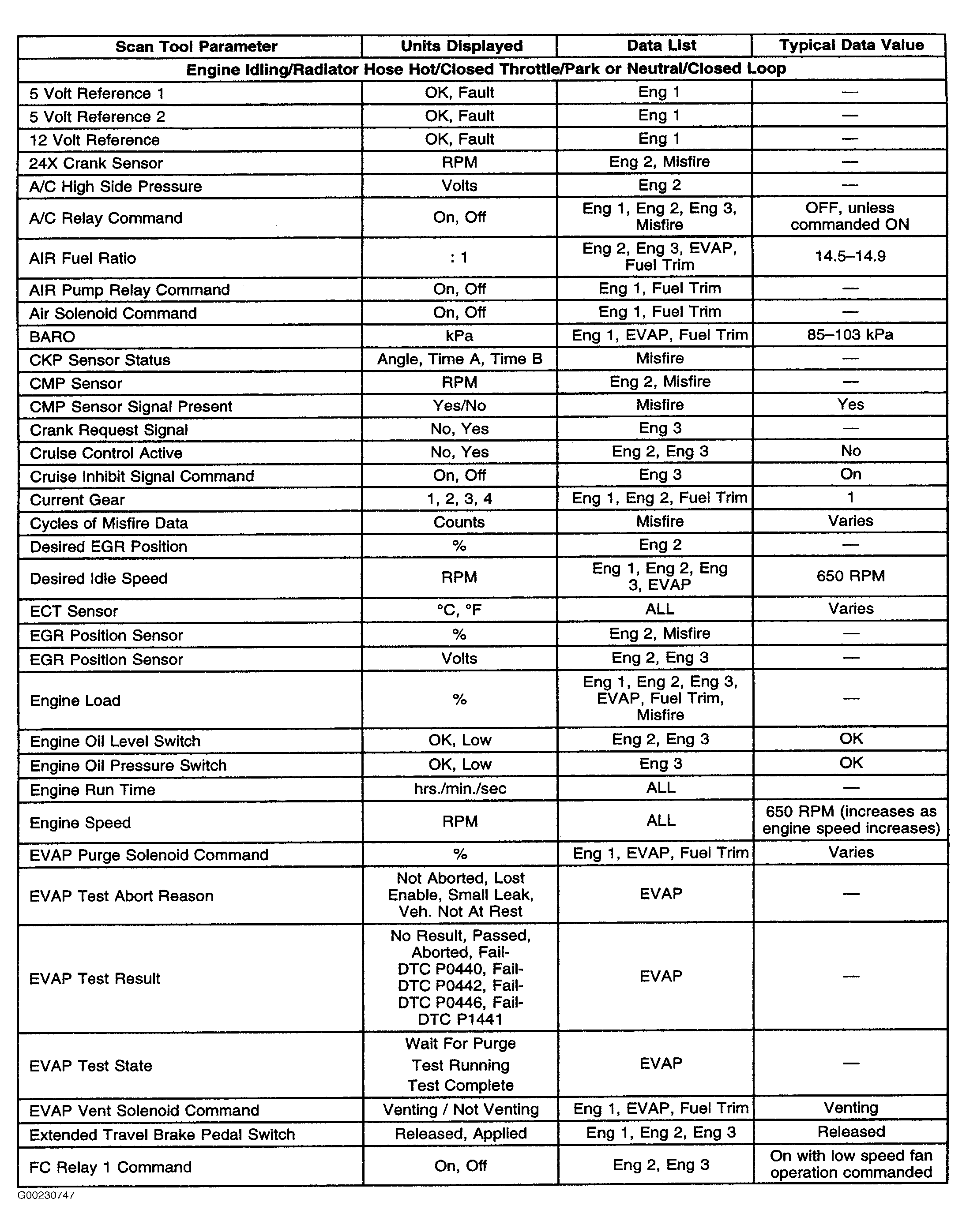

Fig 1: PID Values (1 Of 3)

G00230747

Courtesy of GENERAL MOTORS CORP.

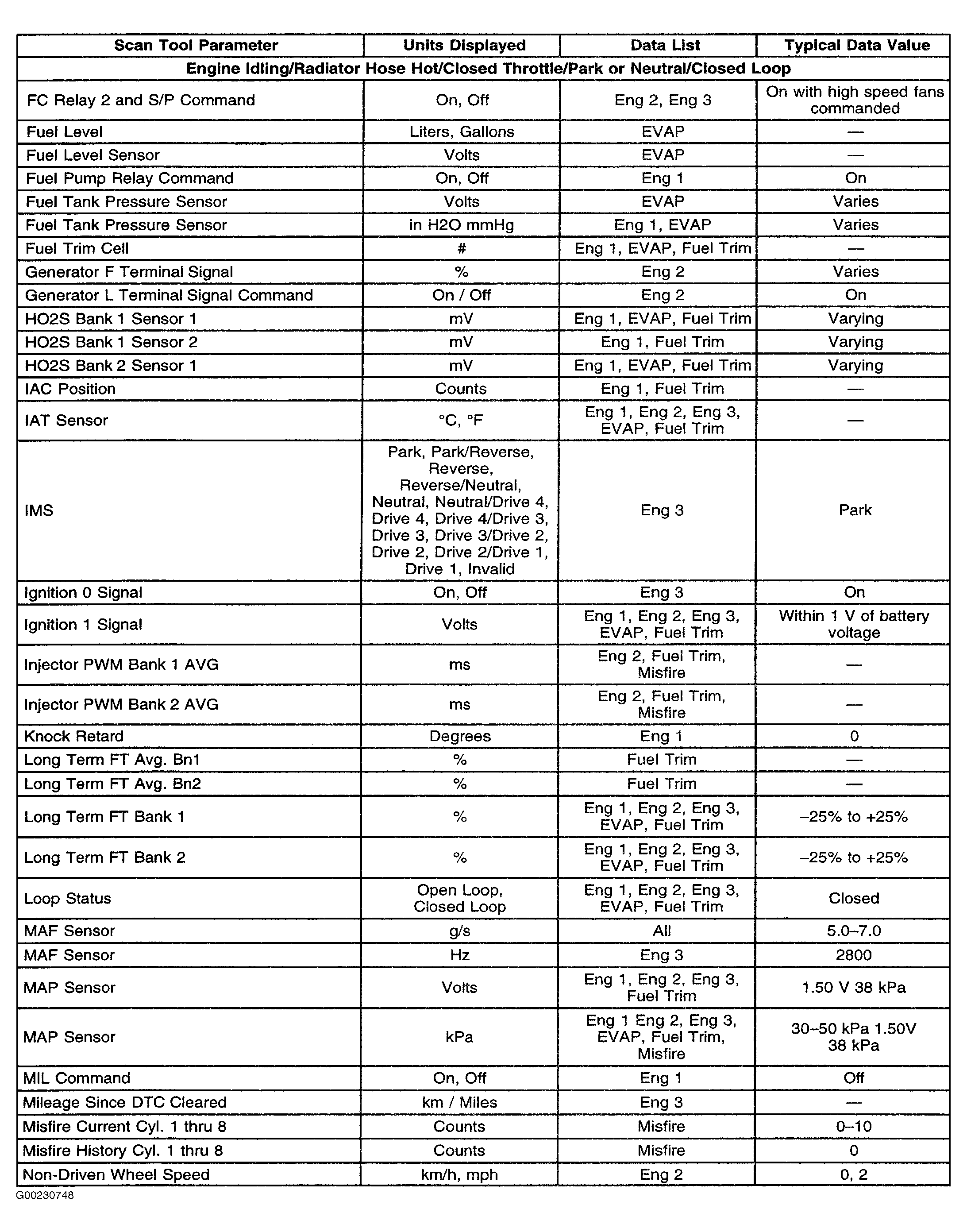

Fig 2: PID Values (2 Of 3)

G00230748

Courtesy of GENERAL MOTORS CORP.

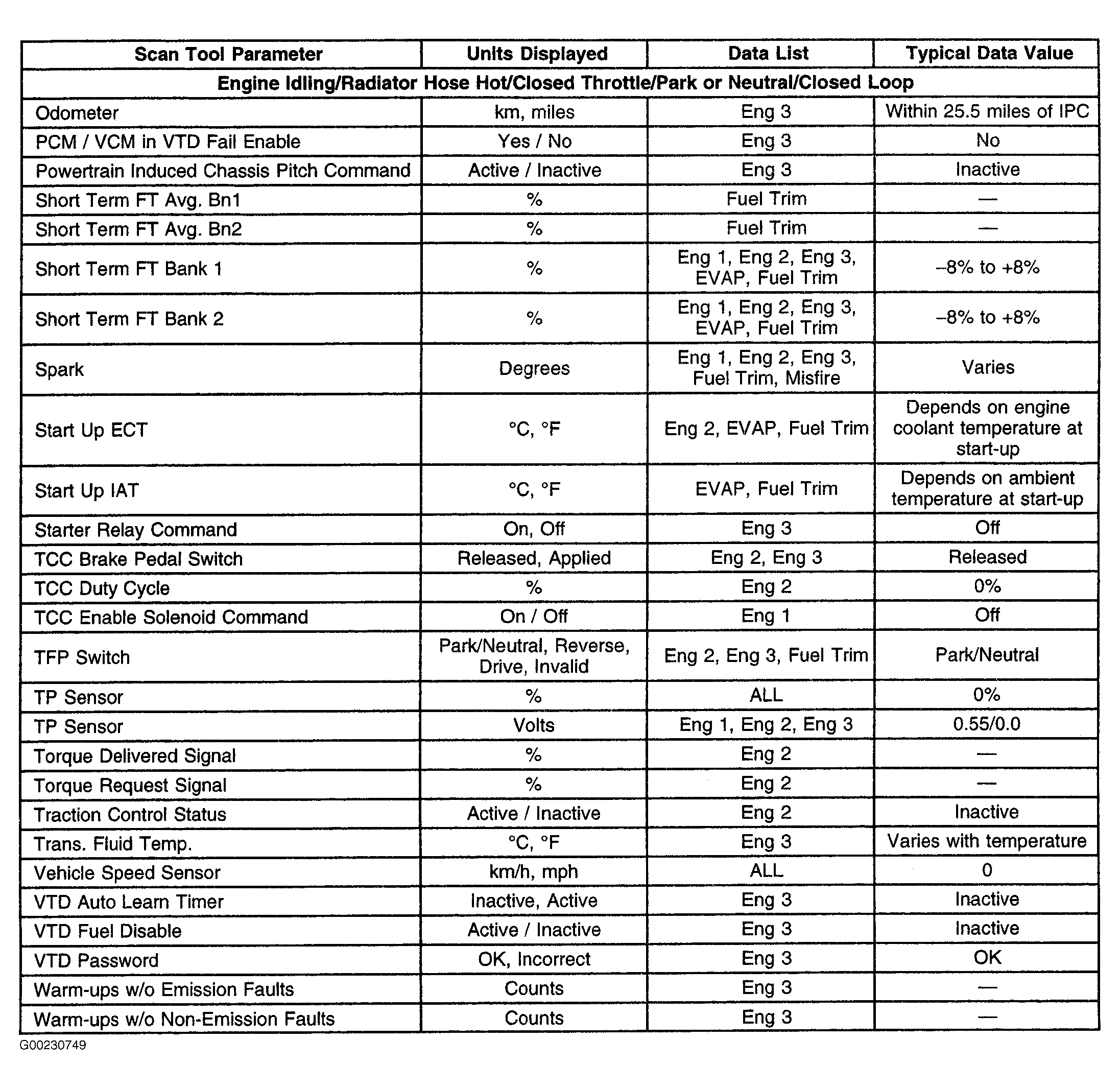

Fig 3: PID Values (3 Of 3)

G00230749

Courtesy of GENERAL MOTORS CORP.
