Wheel Speed Sensor (WSS) - RF

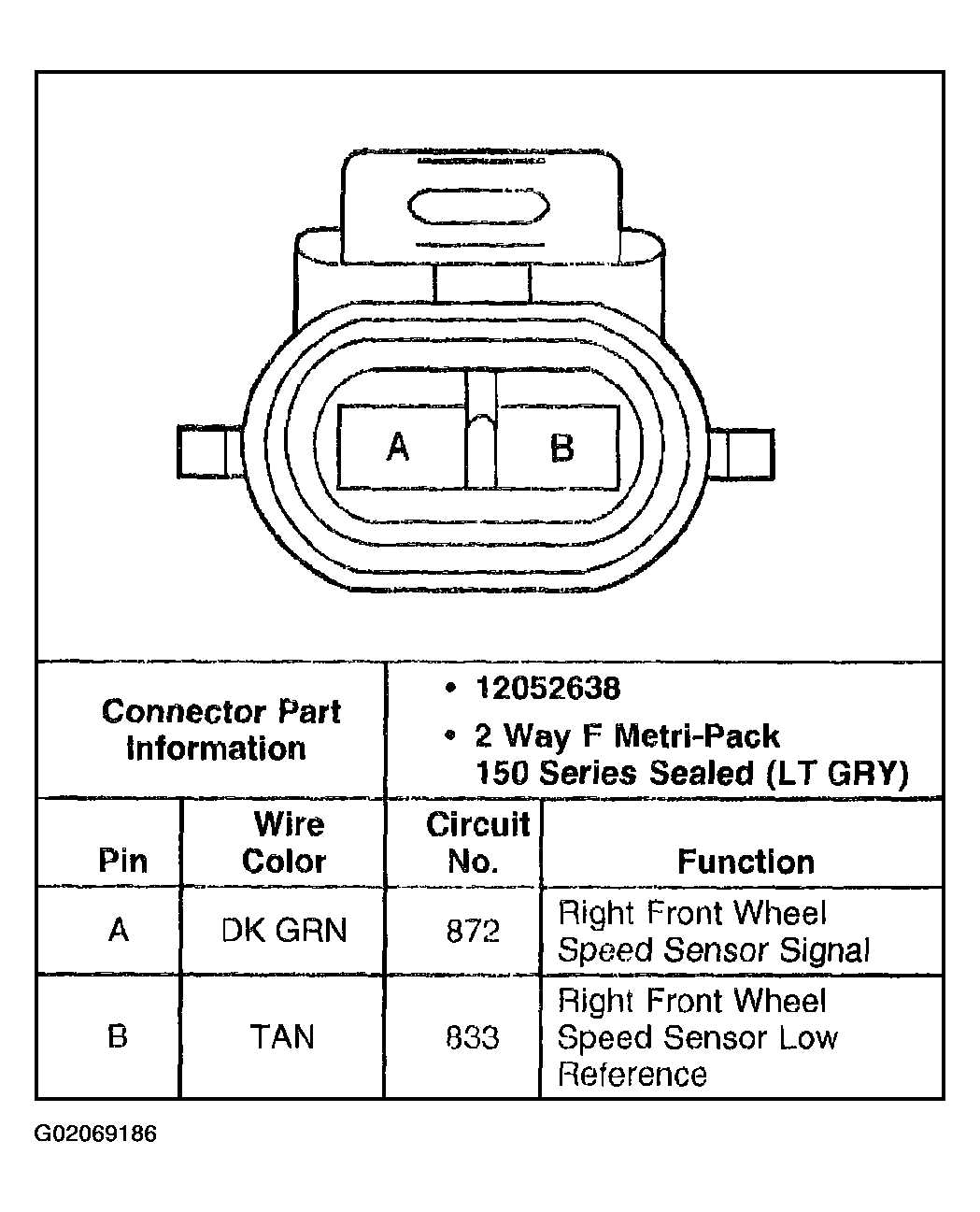

Fig 1: Identifying Speed Sensor (WSS) - RF Connector Terminals

G02069186

Courtesy of GENERAL MOTORS CORP.
