Wheel Speed Sensor (WSS) - LR

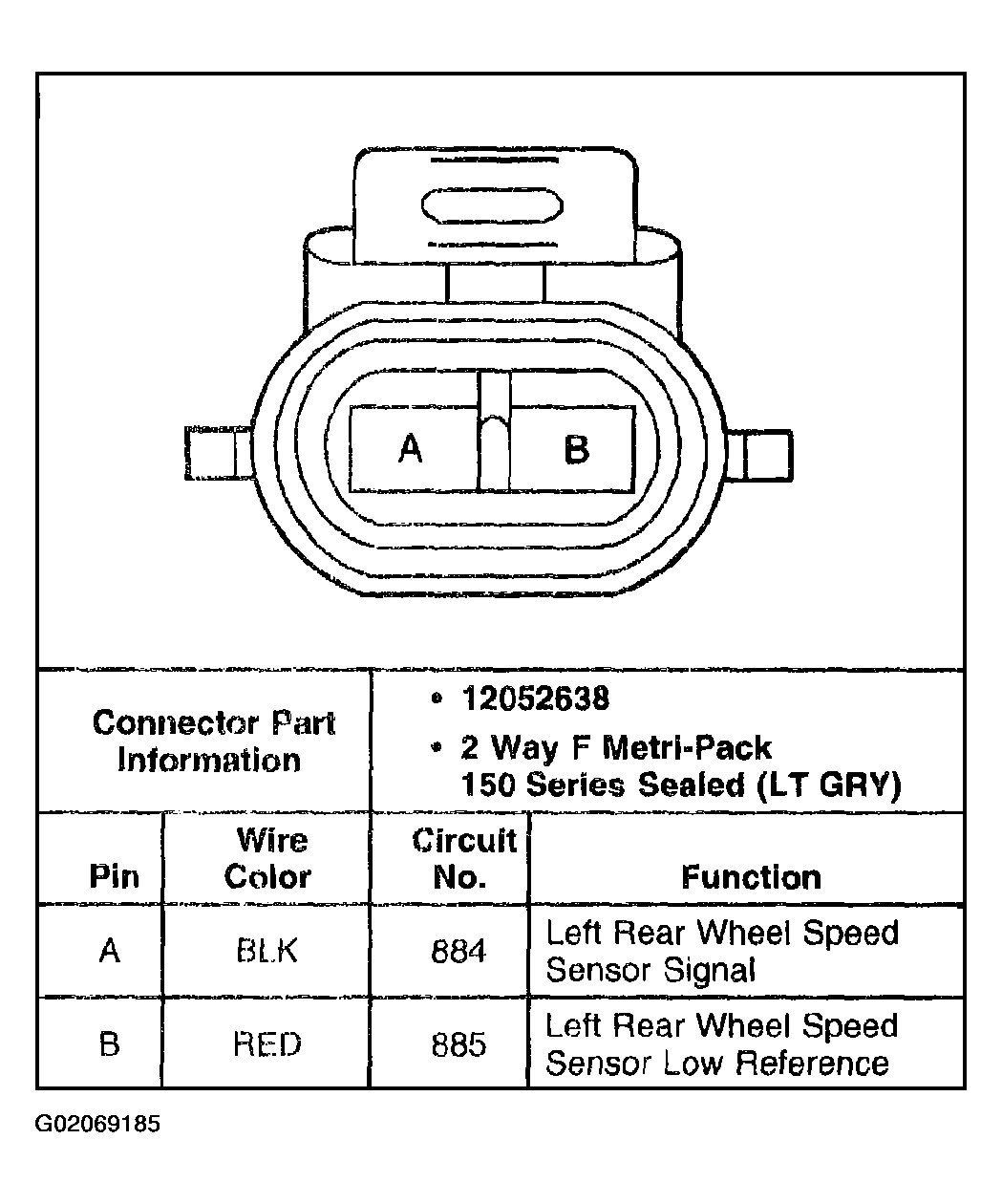

Fig 1: Identifying Speed Sensor (WSS) - LR Connector Terminals

G02069185

Courtesy of GENERAL MOTORS CORP.
