Power Window Schematics (Driver Power Window)

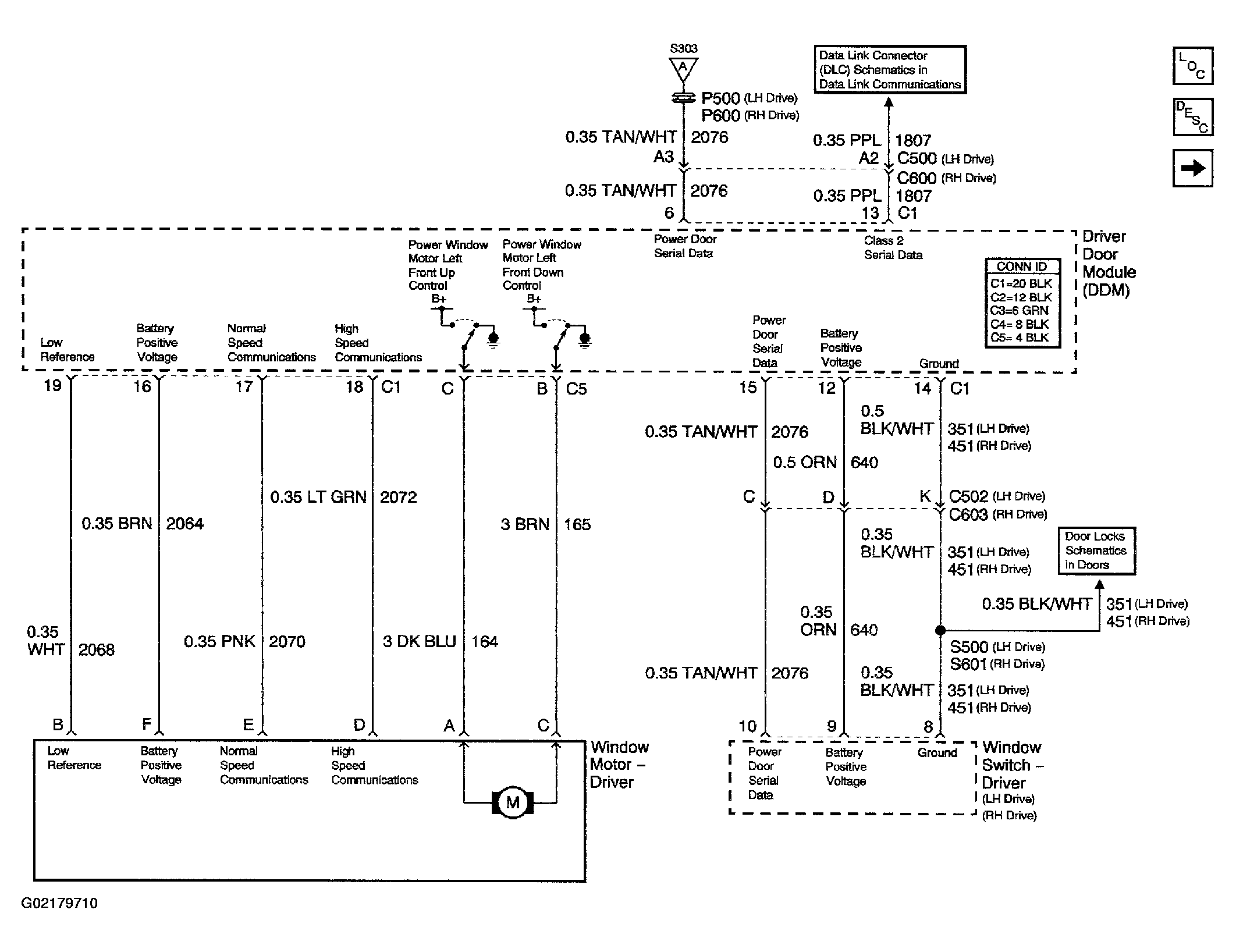

Fig 1: Power Window Schematics (Driver Power Window)

G02179710

Courtesy of GENERAL MOTORS CORP.
