Installation Procedure
- Install the weatherstrip.

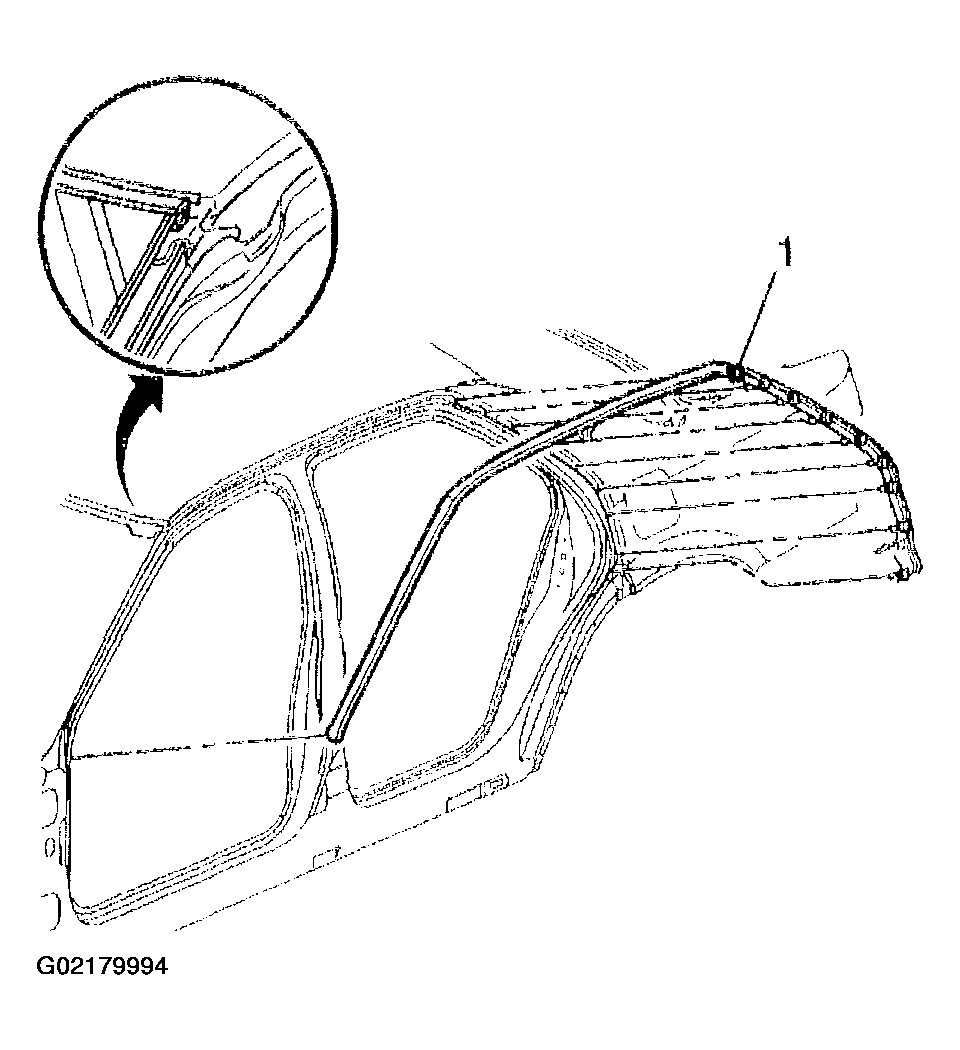

- Install the top retainer (1), securing the weatherstrip to the body lock pillar.
- Working downward insert the next seven retainers to the body lock pillar.
- Insert the last remaining retainer, securing the bottom of the auxiliary weatherstrip over the top of the lower rear auxiliary sealing strip.
- Working forward along the header, install the weatherstrip onto the flange.
