Removal Procedure

Place the window in the full up position.
Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
Disconnect the electrical connectors (1).

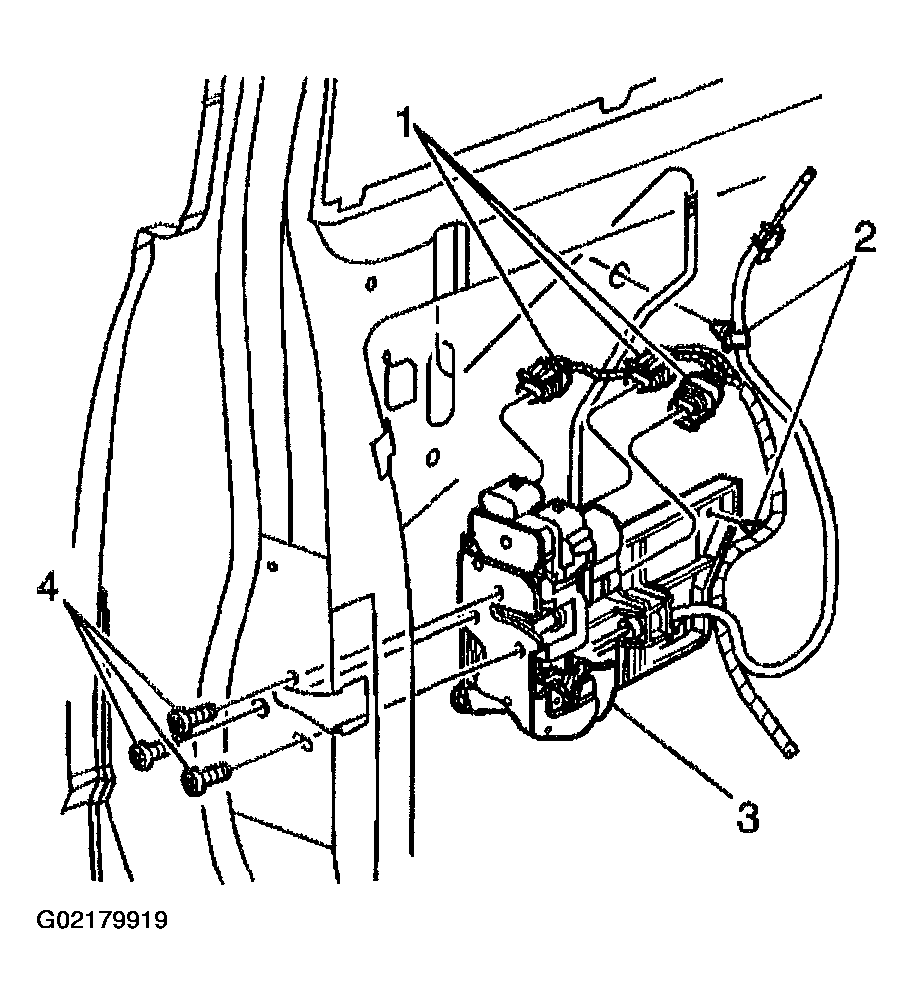

Fig 1: Disconnecting Front Door Latch Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Disconnect the retainer clip securing the inside door handle cable to the inner door panel.
Disconnect the lock cylinder rod (driver's door only).

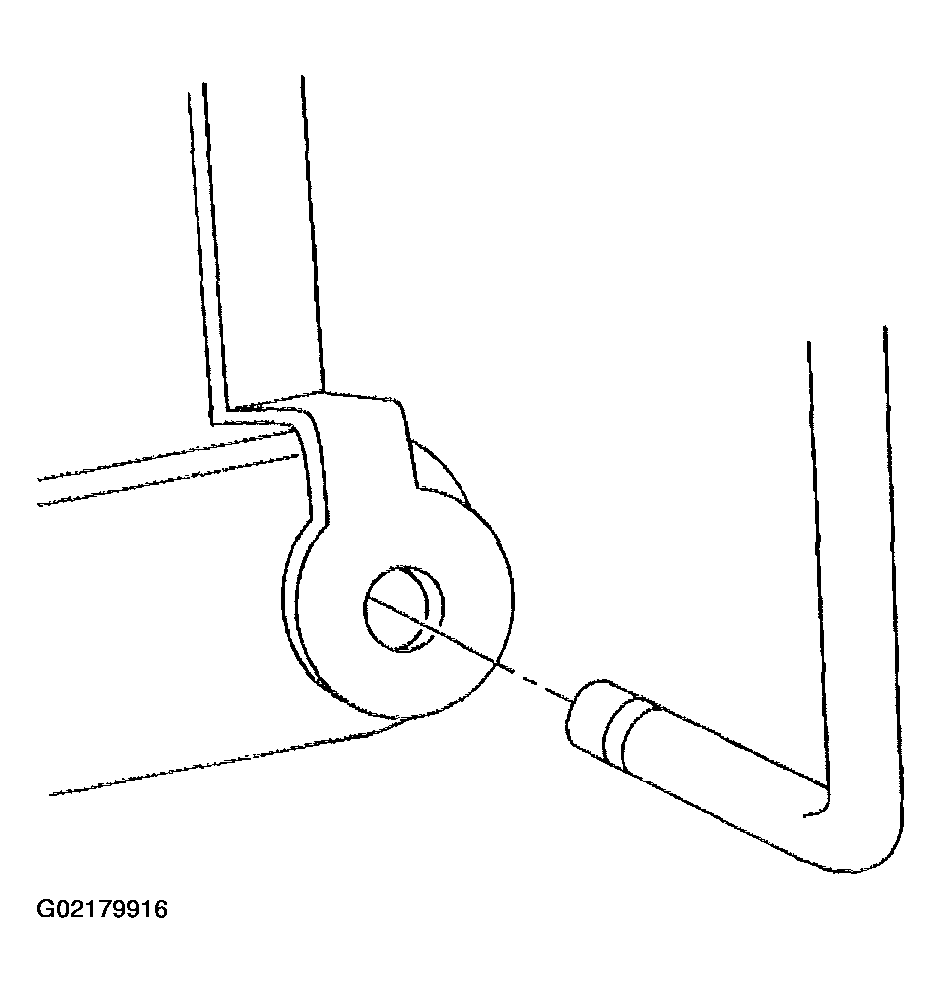

Fig 2: Disconnecting Lock Cylinder Rod
Courtesy of GENERAL MOTORS CORP.
Disconnect the outside door handle rod (1) from the door latch retainer clip (2).

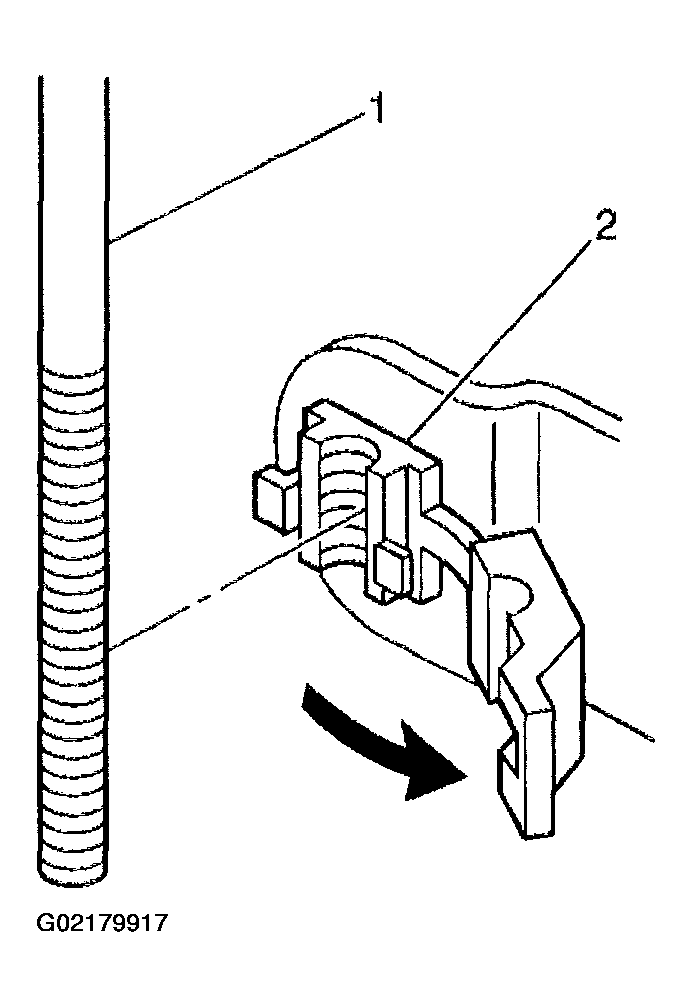

Fig 3: Disconnecting Outside Door Handle Rod From Door Latch Retainer Clip
Courtesy of GENERAL MOTORS CORP.
Remove the lock knob from the rod by twisting counterclockwise the knob.

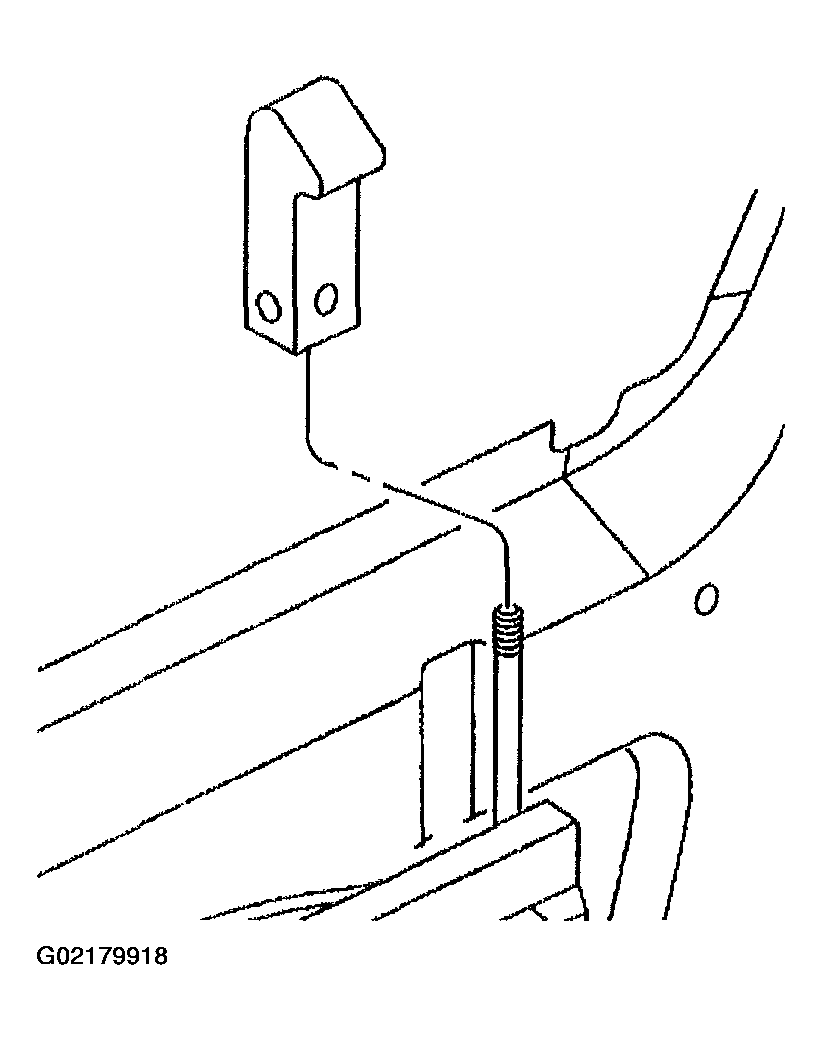

Fig 4: Removing Lock Knob From Rod
Courtesy of GENERAL MOTORS CORP.
Remove the three fasteners (4) from the door latch.
Remove the door latch (3) from the door.

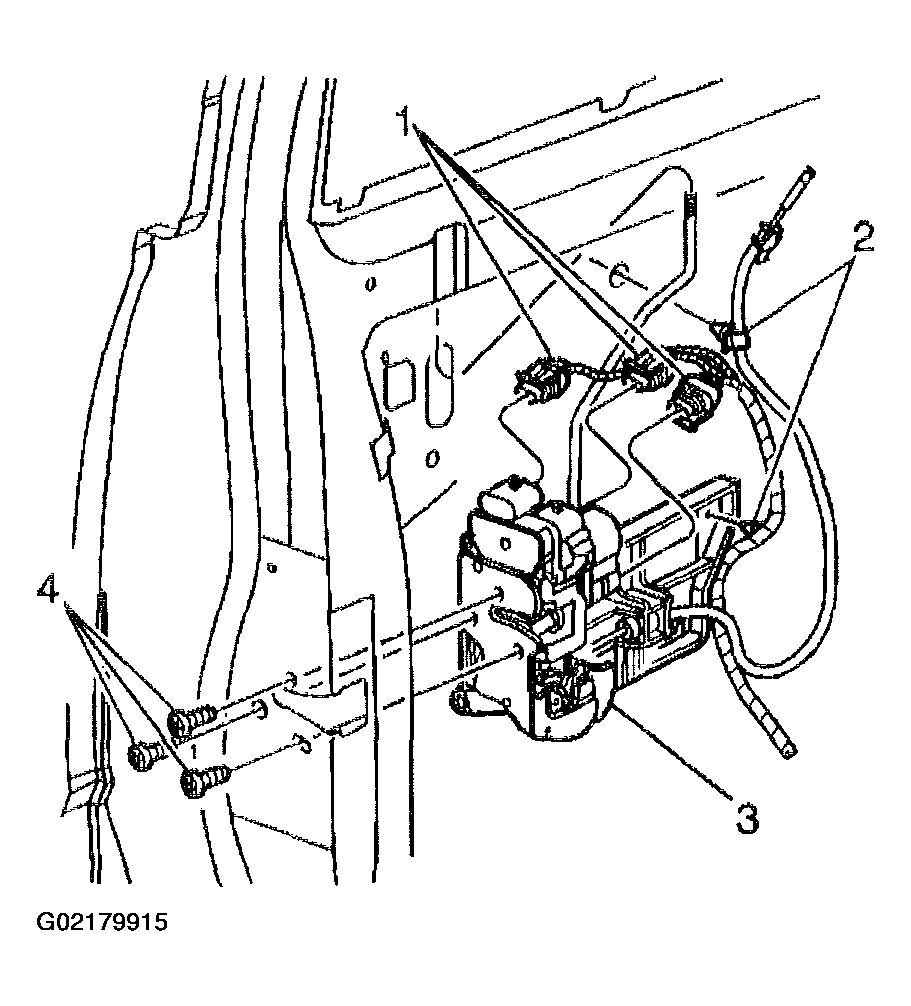

Fig 5: Removing Front Door Latch & Fasteners
Courtesy of GENERAL MOTORS CORP.
