Memory Seats Schematics (Memory/Personalization Function Switch)

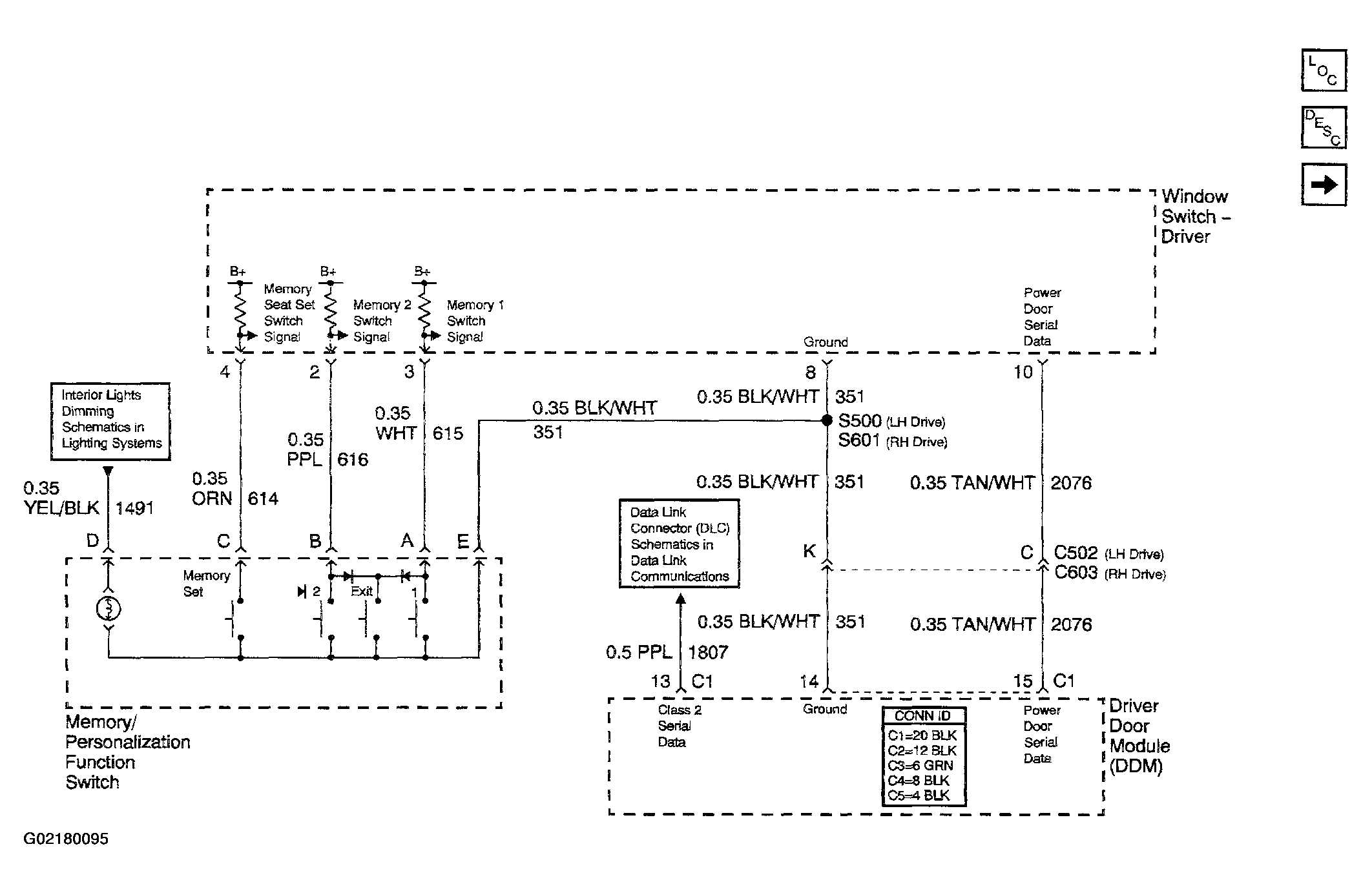

Fig 1: Memory Seats Schematics (Memory/Personalization Function Switch)

G02180095

Courtesy of GENERAL MOTORS CORP.
