Driver Door Module (DDM)

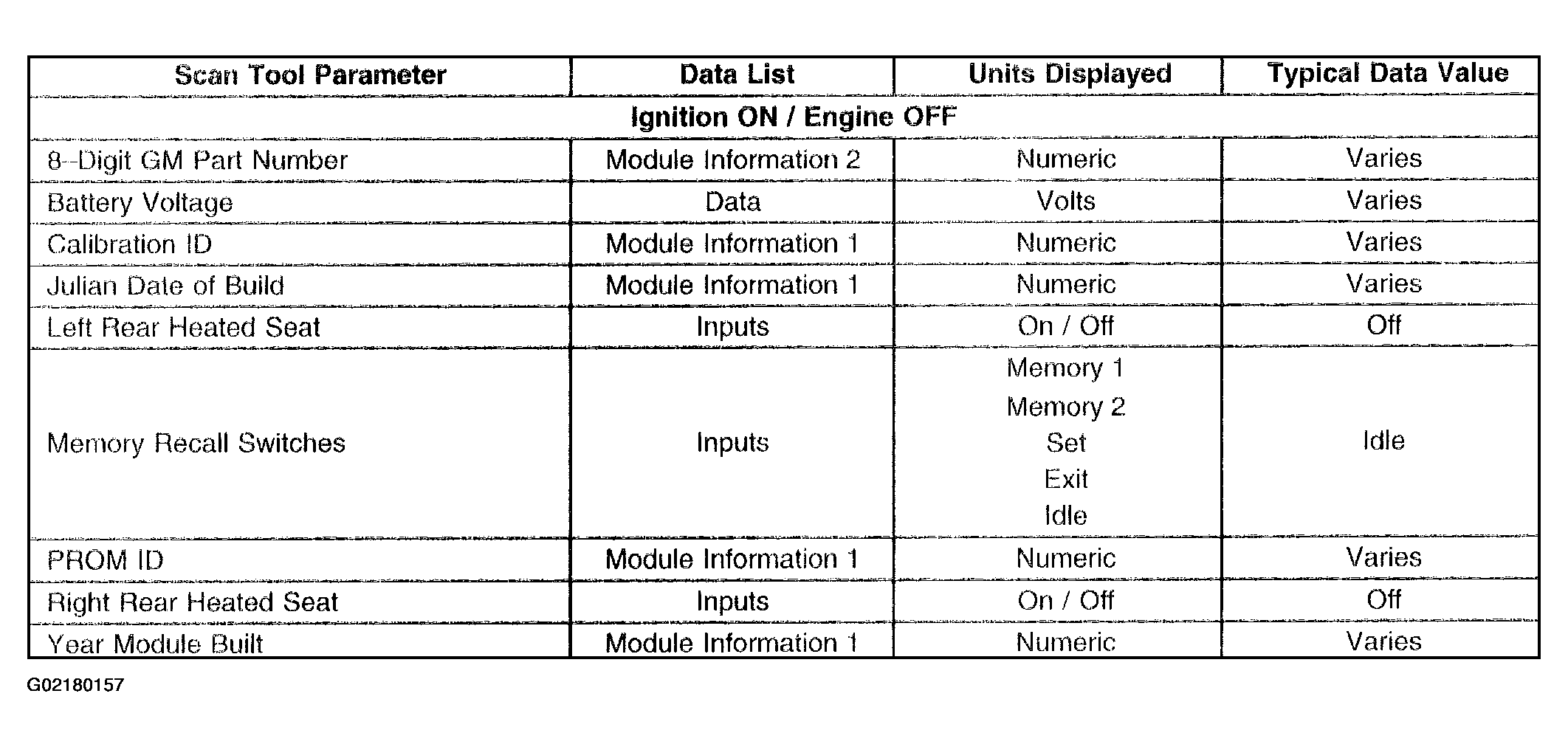

Fig 1: Driver Door Module (DDM)

G02180157

Courtesy of GENERAL MOTORS CORP.
