Heated Seat Module - Driver C3

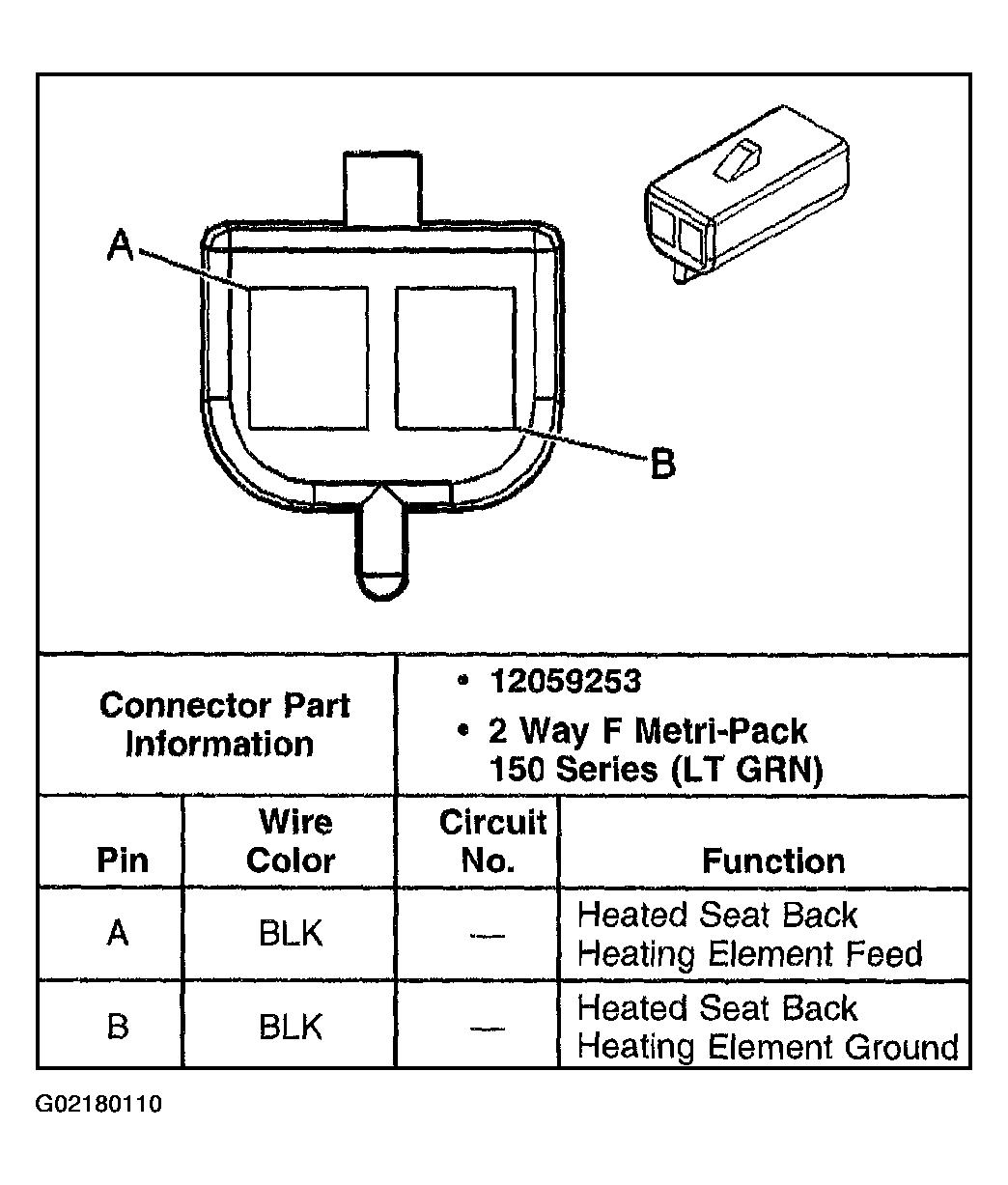

Fig 1: Heated Seat Module - Driver C3 Connector End View

G02180110

Courtesy of GENERAL MOTORS CORP.
