Keyless Entry Schematics

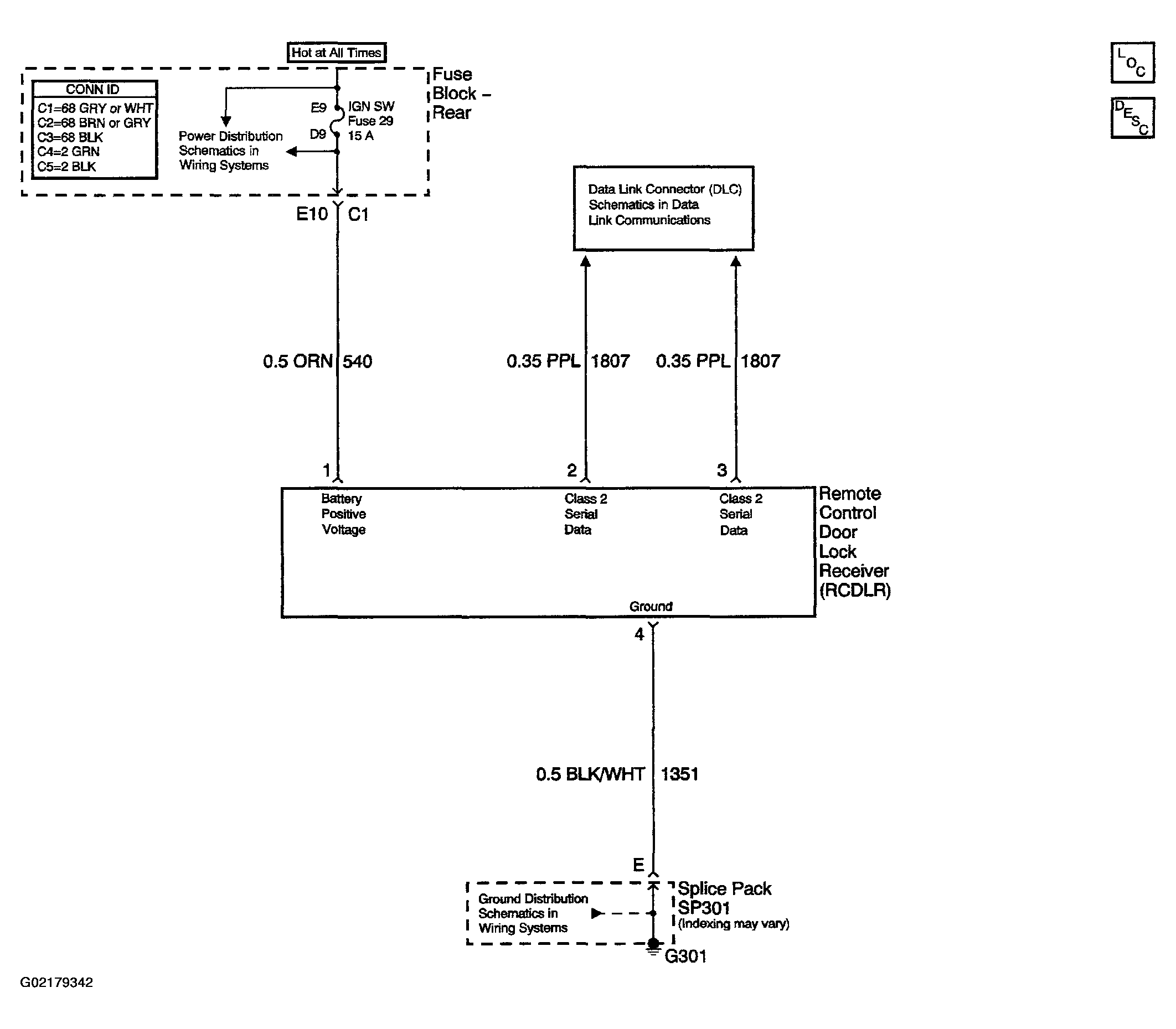

Fig 1: Keyless Entry Schematics

G02179342

Courtesy of GENERAL MOTORS CORP.
