Home
>>
Cadillac
>>
2003
>>
Seville SLS
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Entertainment System
>>
Diagnostic Information and Procedures
>>
Scan Tool Output Controls
>>
Bose Amplifier Scan Tool Output Control
Bose Amplifier Scan Tool Output Control

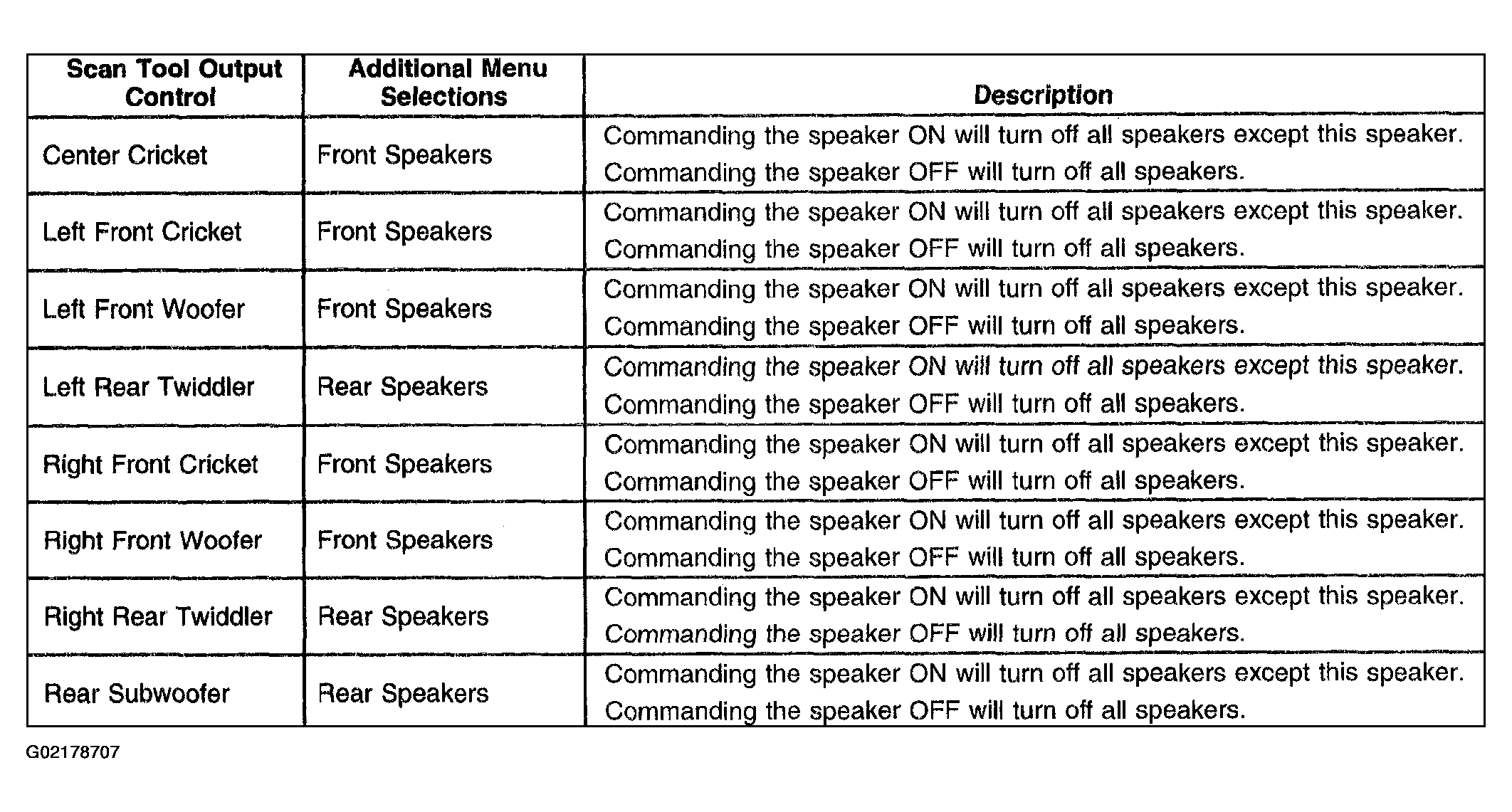

Fig 1: Bose Amplifier Scan Tool Output Control
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
