OnStar Schematics: Notes

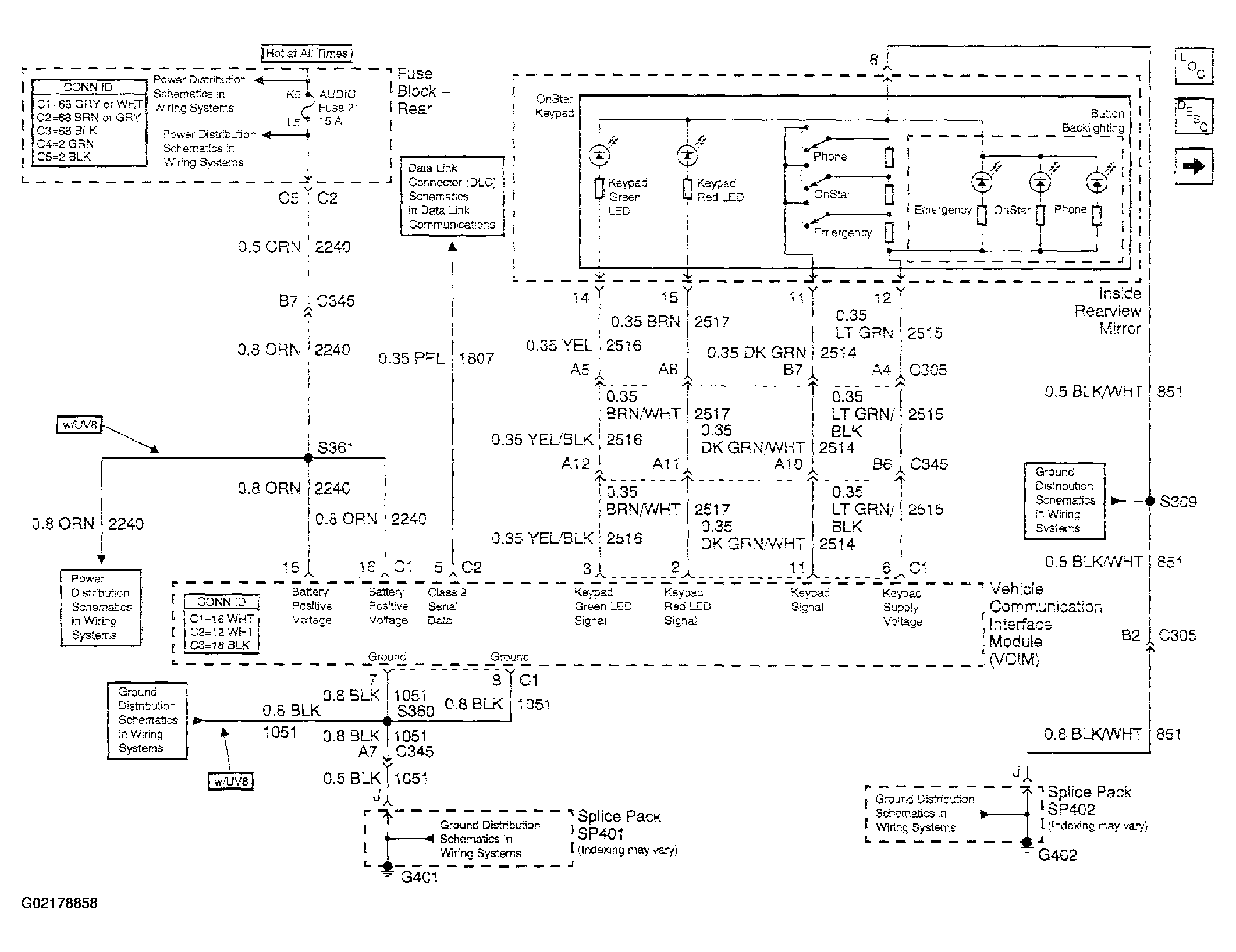

Fig 1: Onstar Schematic - Power, Ground & Onstar Keypad (Early Production)
G02178858Courtesy of GENERAL MOTORS CORP.

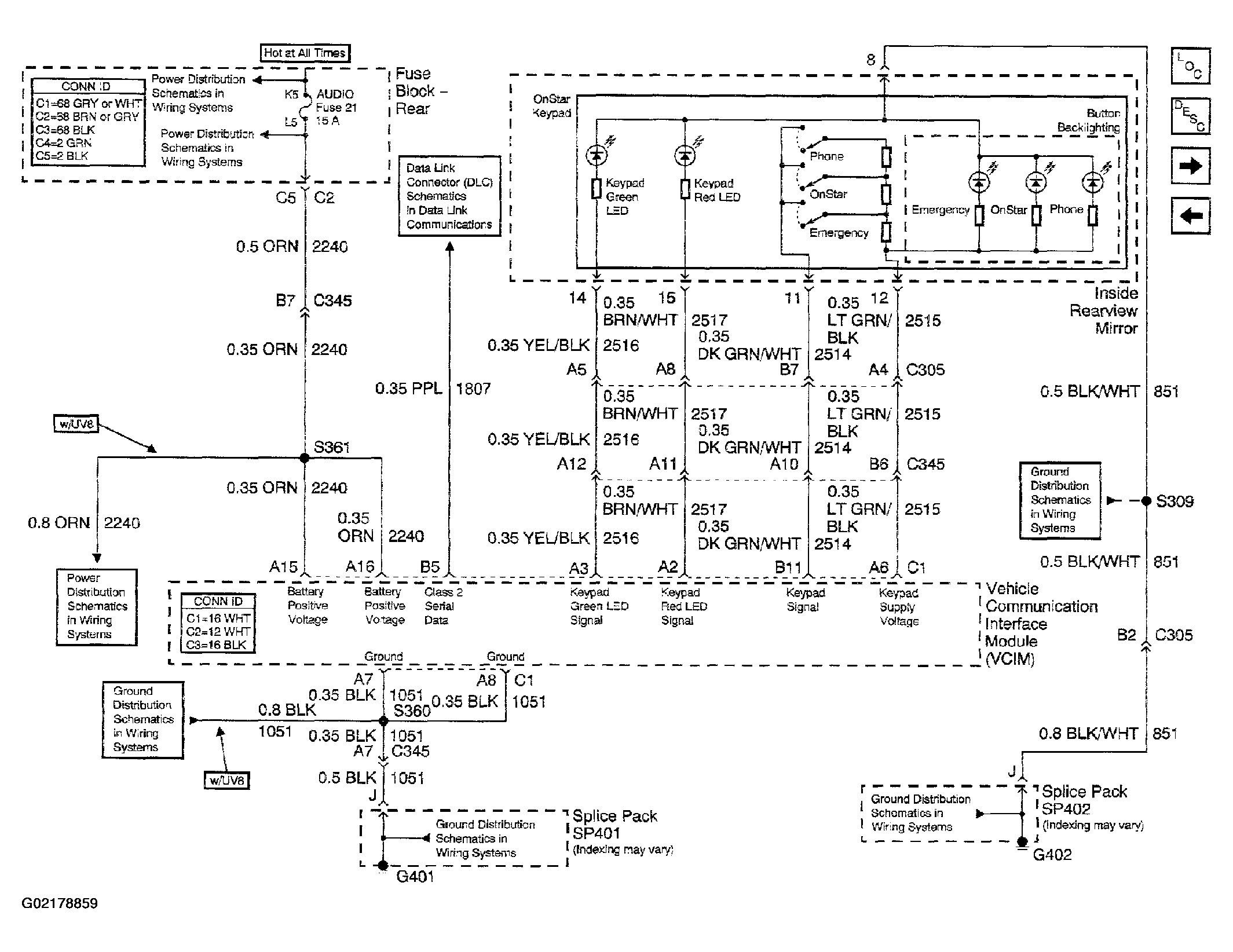

Fig 2: Onstar Schematic - Power, Ground & Onstar Keypad (Late Production)
G02178859Courtesy of GENERAL MOTORS CORP.
