Installation Procedure

  1. Install the GPS antenna module (2) to the rear shelf trim panel.
  2. Install the pushpins (1) in order to retain the antenna module to the rear shelf trim panel.

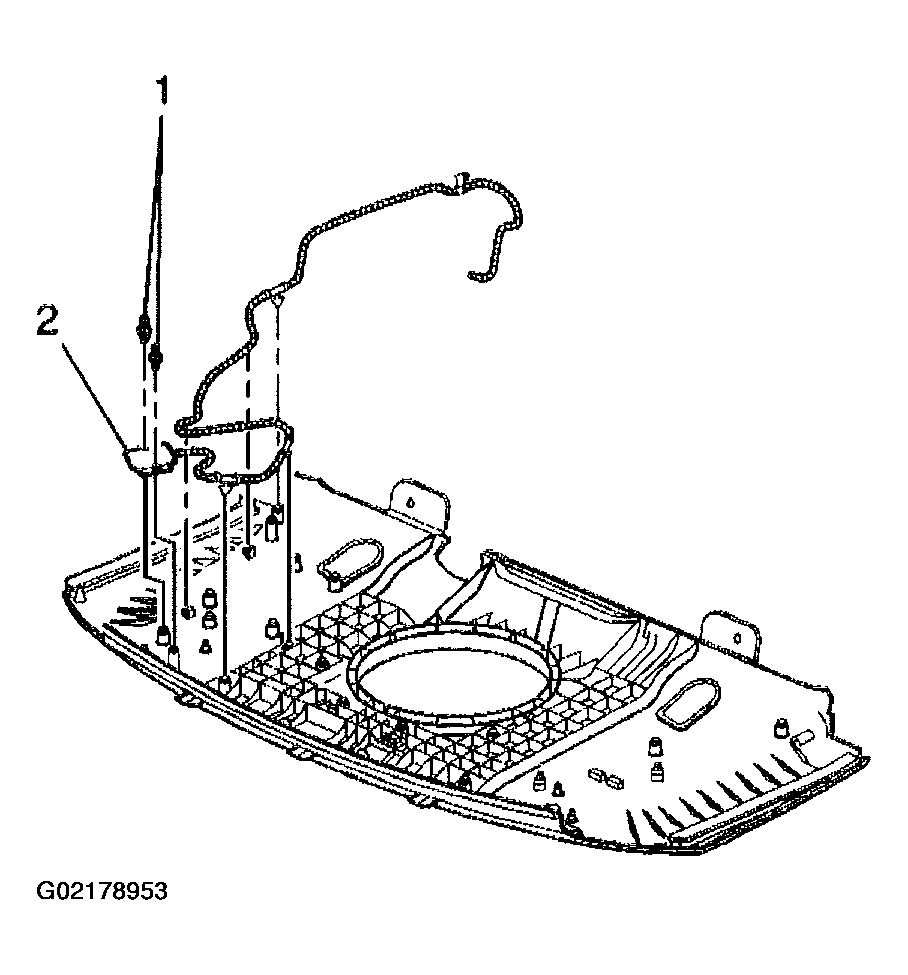

    Fig 1: Installing GPS Antenna Module & Pushpins
    G02178953Courtesy of GENERAL MOTORS CORP.
  3. Push the center of the pin down in order to lock the pins (1) in place.
  4. Install the GPS antenna wiring harness to the rear shelf trim panel in order to retain the wiring harness to the rear shelf trim panel.
  5. Install the rear shelf trim panel. Refer to INTERIOR TRIM  in Interior Trim.
