Removal Procedure

  1. Remove the rear compartment trim. Refer to BODY REAR END  in Body Rear End.
  2. Disconnect the electrical connector from the cellular telephone module.
  3. Remove the four fasteners (3) retaining the cellular telephone module and bracket assembly (2) to the rear shelf trim panel (1).

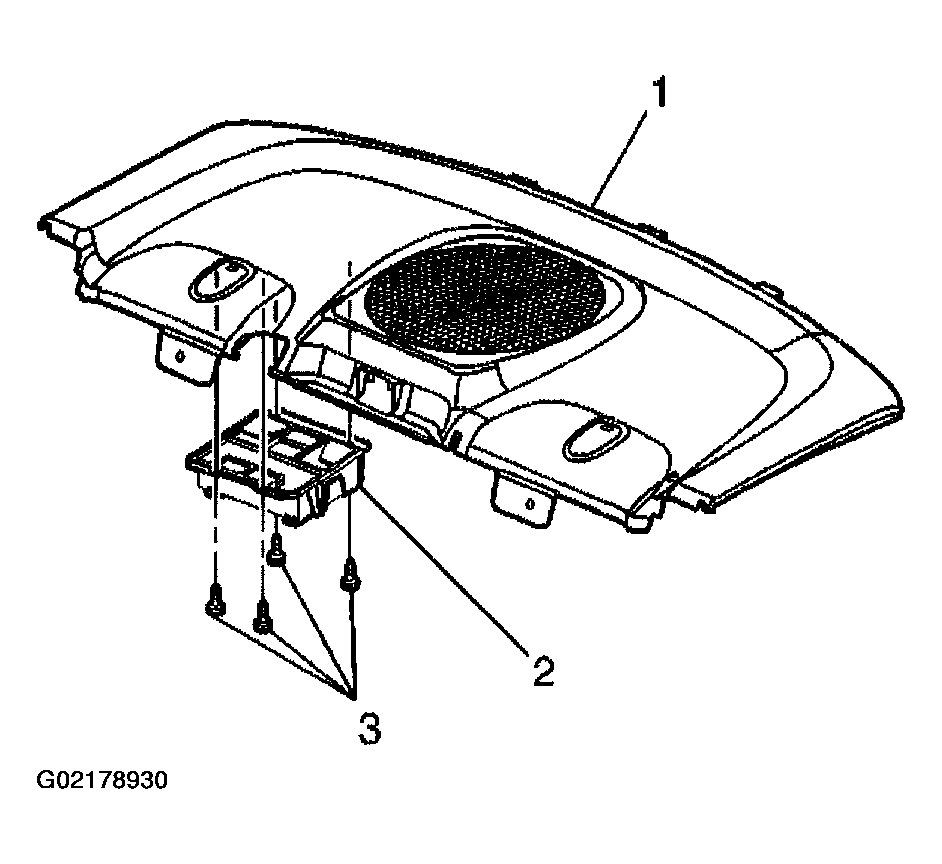

    Fig 1: Removing Cellular Telephone Module & Mounting Bracket Assembly Retaining Screws
    G02178930Courtesy of GENERAL MOTORS CORP.
  4. Remove the cellular telephone module and mounting bracket assembly (2) from the rear shelf trim panel.
  5. Release the cellular telephone module mounting bracket retaining tabs (2) and slide the cellular telephone module (3) out of the mounting bracket (1).

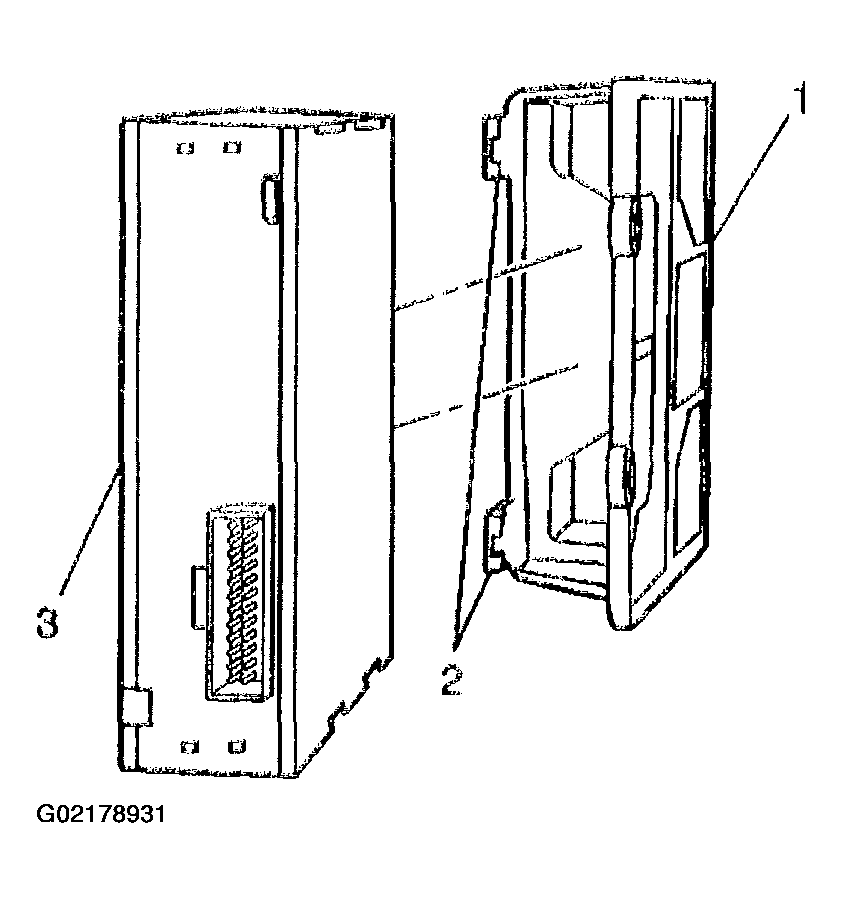

    Fig 2: Removing Cellular Telephone Module From Mounting Bracket
    G02178931Courtesy of GENERAL MOTORS CORP.
