Cruise Control Schematics (Cruise Control Module (CCM) Power and Ground)

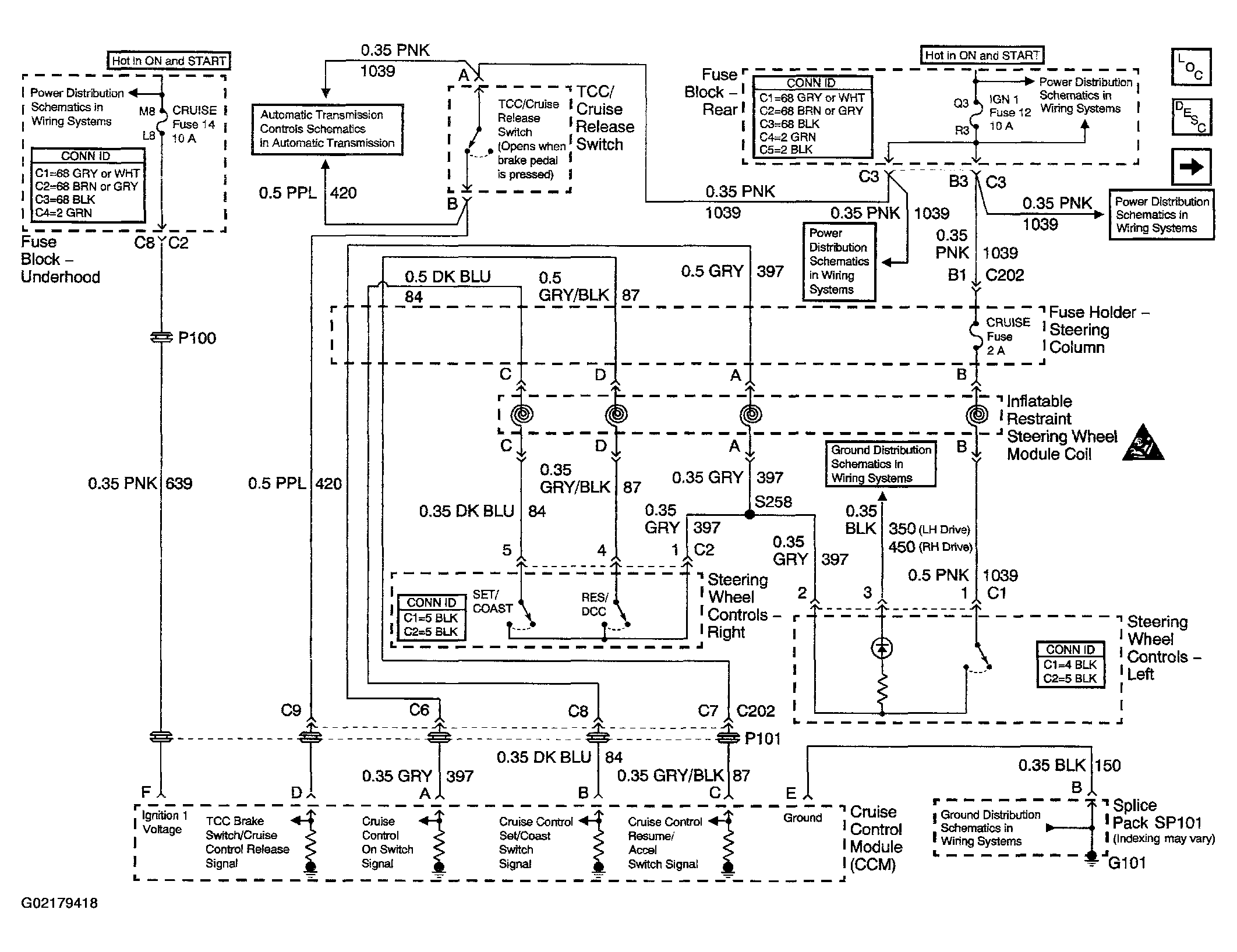

Fig 1: Cruise Control Schematics (Cruise Control Module (CCM) Power & Ground)

G02179418

Courtesy of GENERAL MOTORS CORP.
