Transfer Case Disassembled View

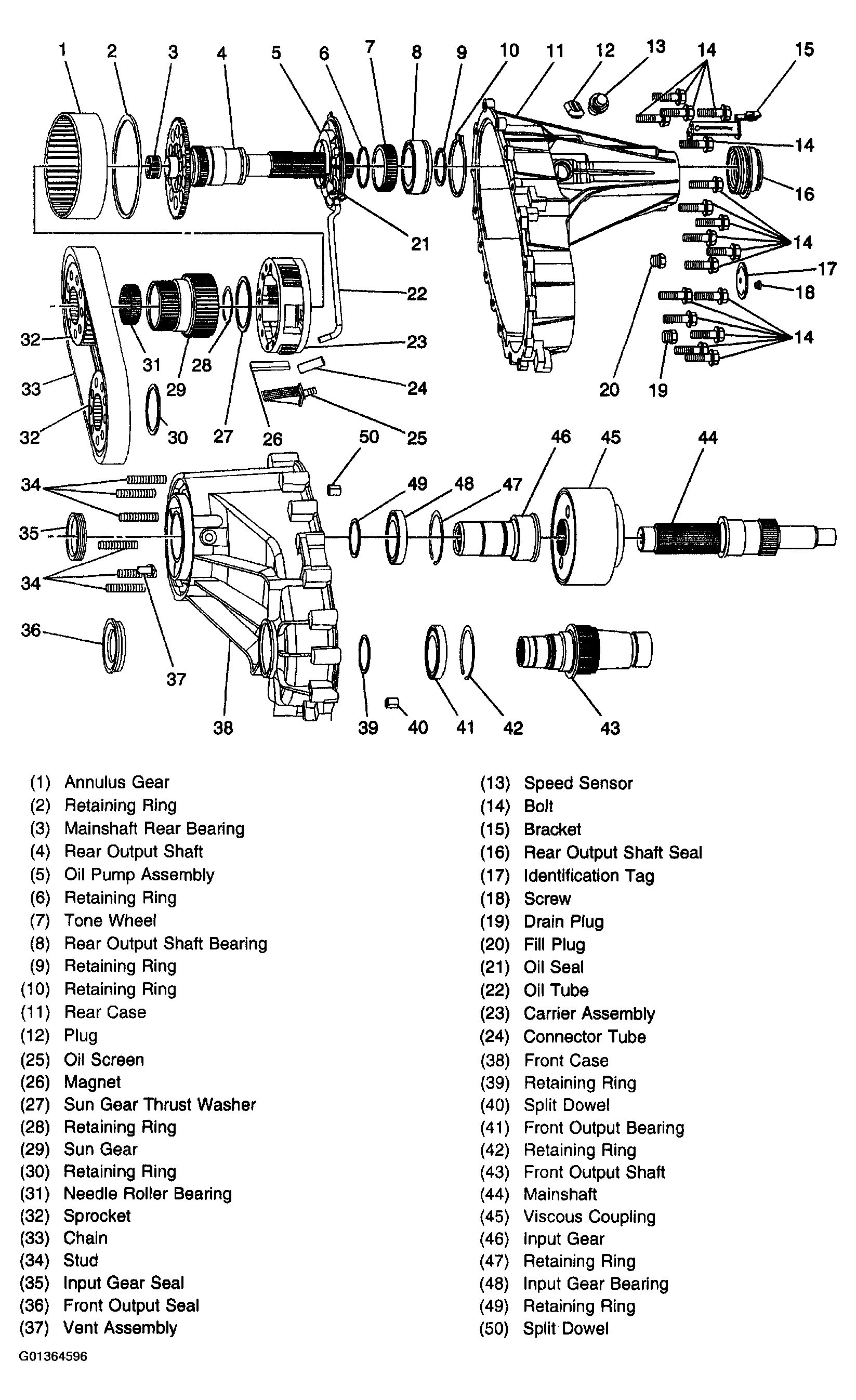

Fig 1: Exploded View Of Transfer Case Assembly

G01364596

Courtesy of GENERAL MOTORS CORP.
