Power Steering Fluid Leaks

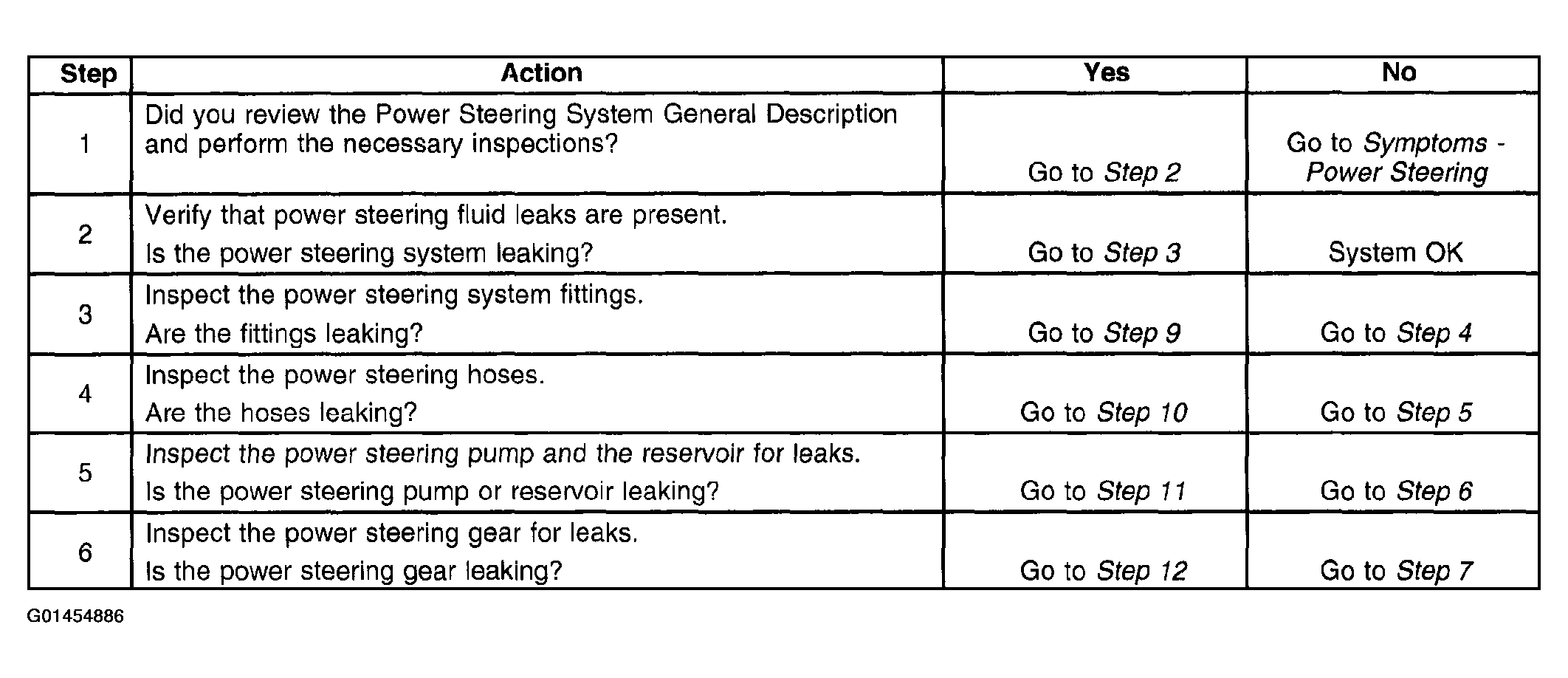

Fig 1: Power Steering Fluid Leaks Test Procedure (Step 1-6)
G01454886Courtesy of GENERAL MOTORS CORP.

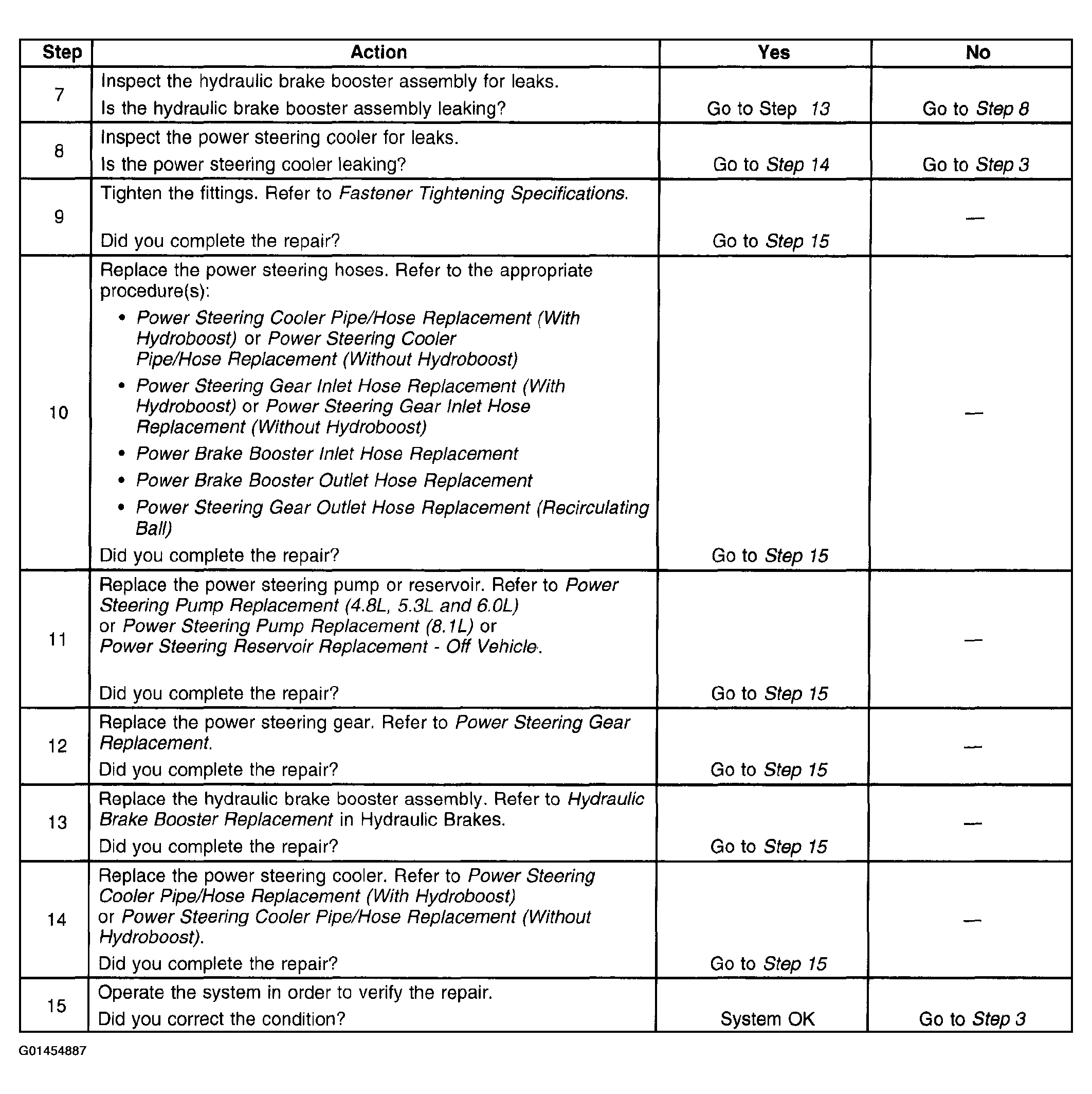

Fig 2: Power Steering Fluid Leaks Test Procedure (Step 7-15)
G01454887Courtesy of GENERAL MOTORS CORP.
