Seat Belt Schematics

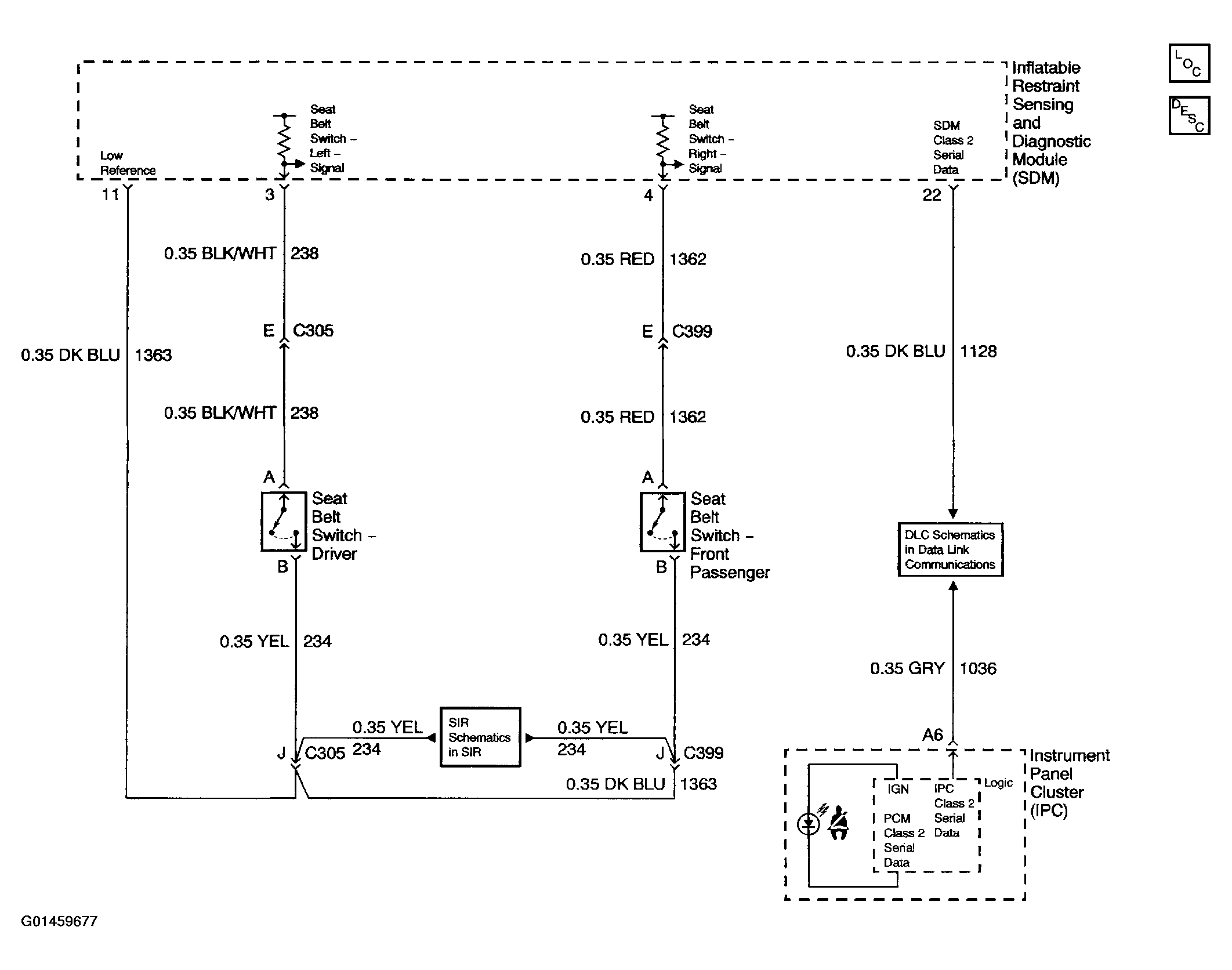

Fig 1: Seat Belt Schematics Diagram

G01459677

Courtesy of GENERAL MOTORS CORP.
