Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the bolt (1) to the seat belt anchor.

    Tighten

    1. Tighten the bolt to 52 N.m (38 lb ft).

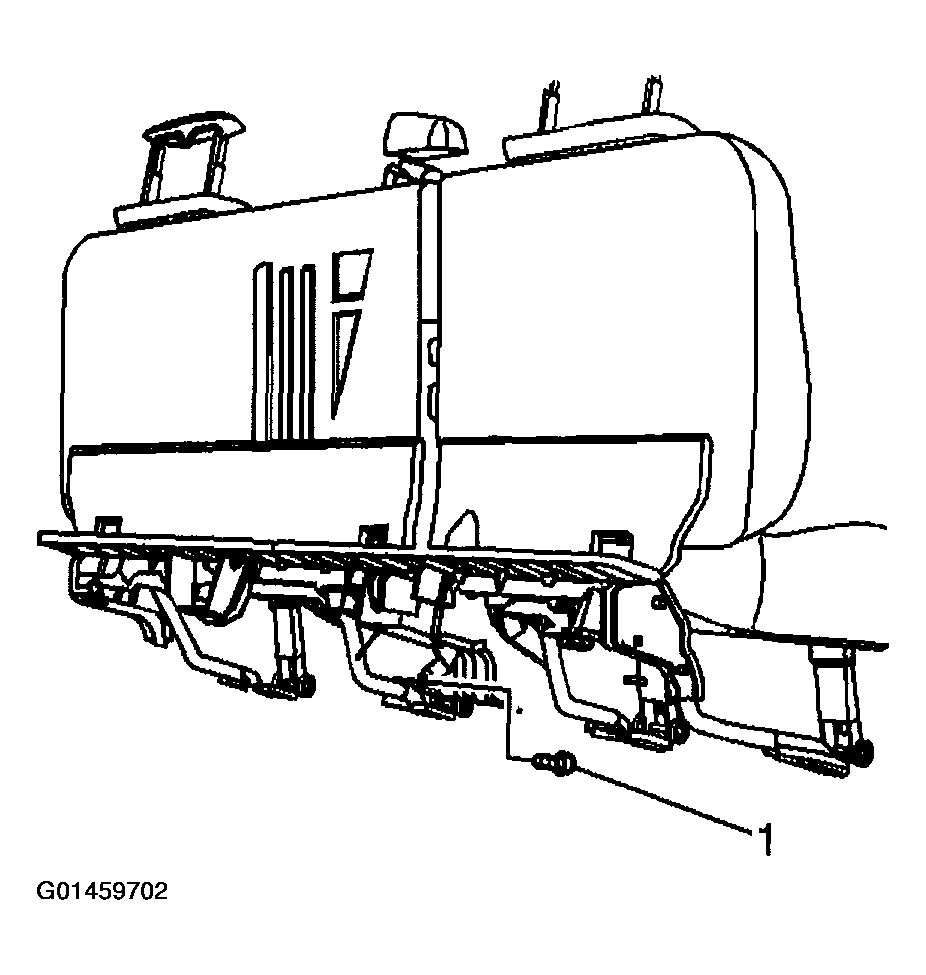

    Fig 1: Installing Bolt To Seat Belt Anchor
    G01459702Courtesy of GENERAL MOTORS CORP.
  2. Install the nut to the seat belt retractor.

    Tighten

    1. Tighten the nut to 52 N.m (38 lb ft).
  3. Install the J-Clip under the center armrest.

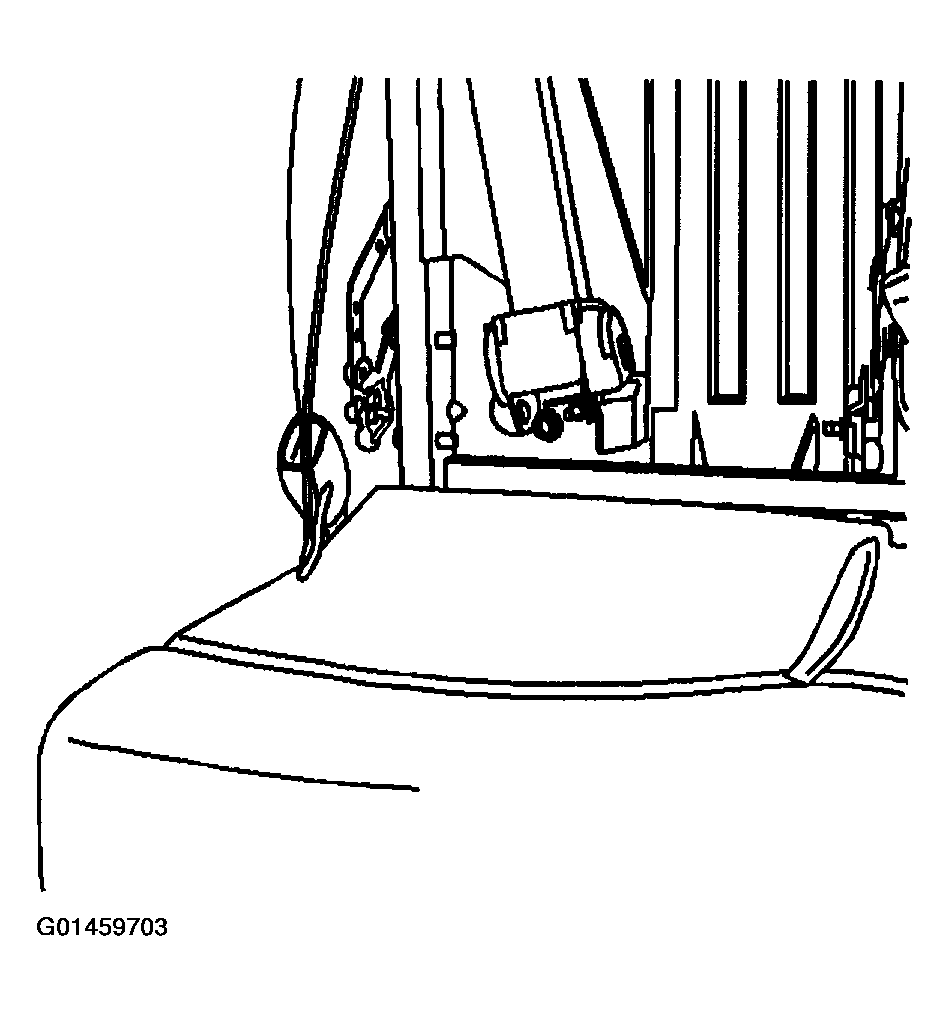

    Fig 2: Installing Nut To Seat Belt Retractor
    G01459703Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat armrest. Refer to ARMREST REPLACEMENT - REAR SEAT (BUCKET) or ARMREST REPLACEMENT - REAR SEAT (60/40 SPLIT) in SEAT SYSTEM s.
  5. Install the seat belt guide cover (1).

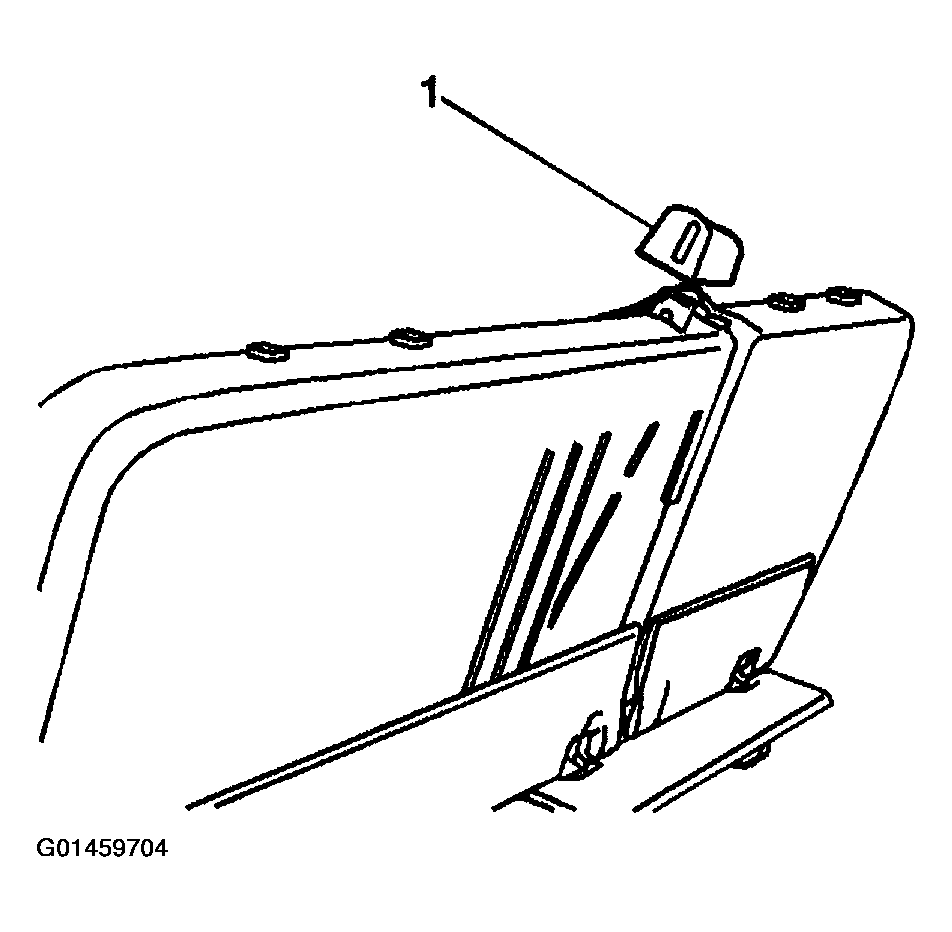

    Fig 3: Installing Seat Belt Guide Cover
    G01459704Courtesy of GENERAL MOTORS CORP.
