Installation Procedure

  1. Install the buckle assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt (13) that retains the buckle assembly (14) to the seat frame.

    Tighten

    1. Tighten the bolts to 53 N.m (39 lb ft).
  3. Install the rear seat cushion and cover. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT) or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (BENCH) in SEAT SYSTEM .

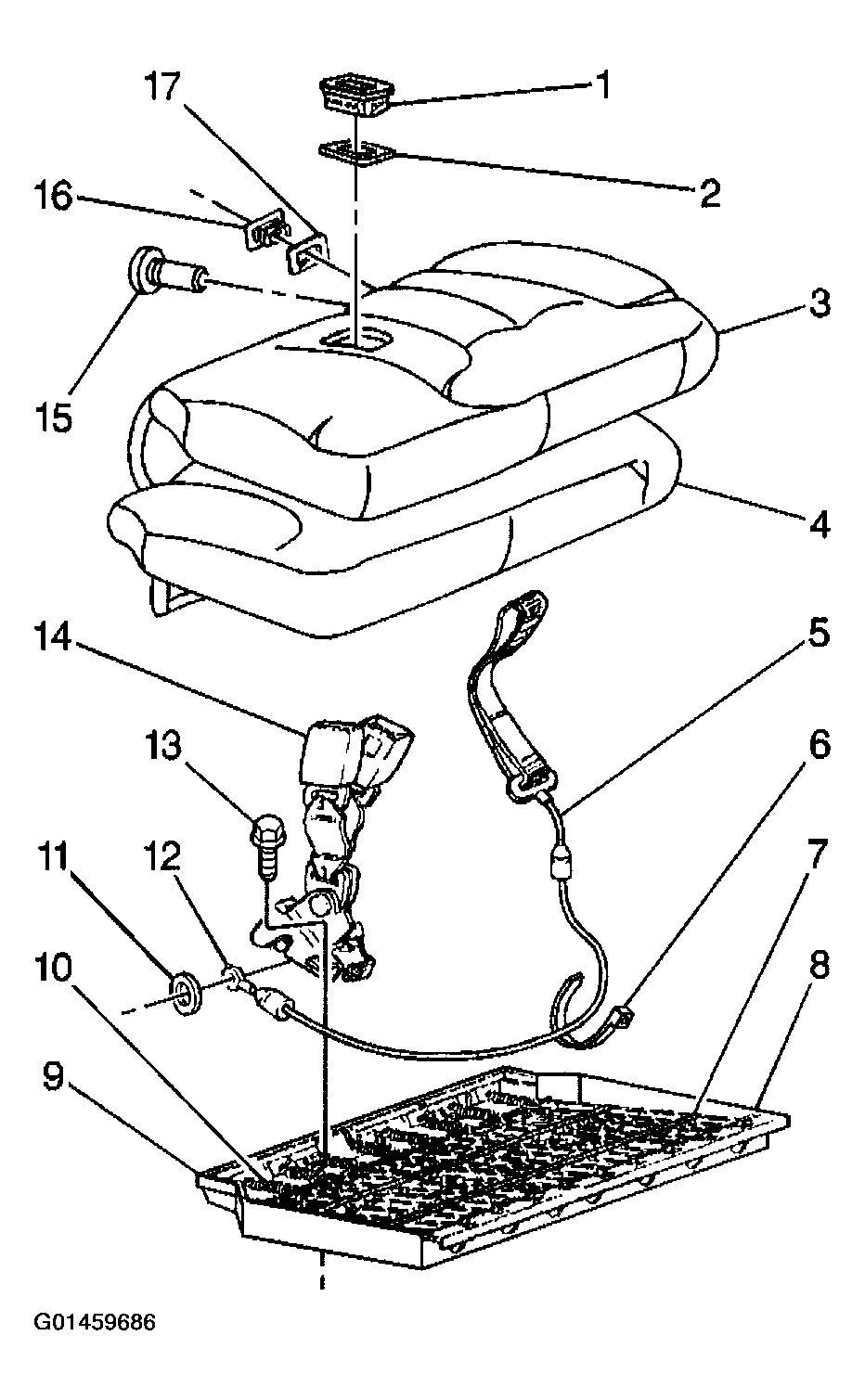

    Fig 1: Installing Buckle Assembly
    G01459686Courtesy of GENERAL MOTORS CORP.
