Removal Procedure

  1. Remove the front seat belt buckle nut (1).

    Disconnect the electrical connection (2). The right seat buckle is shown, the left is similar.

  2. Remove the seat belt buckle from the vehicle.

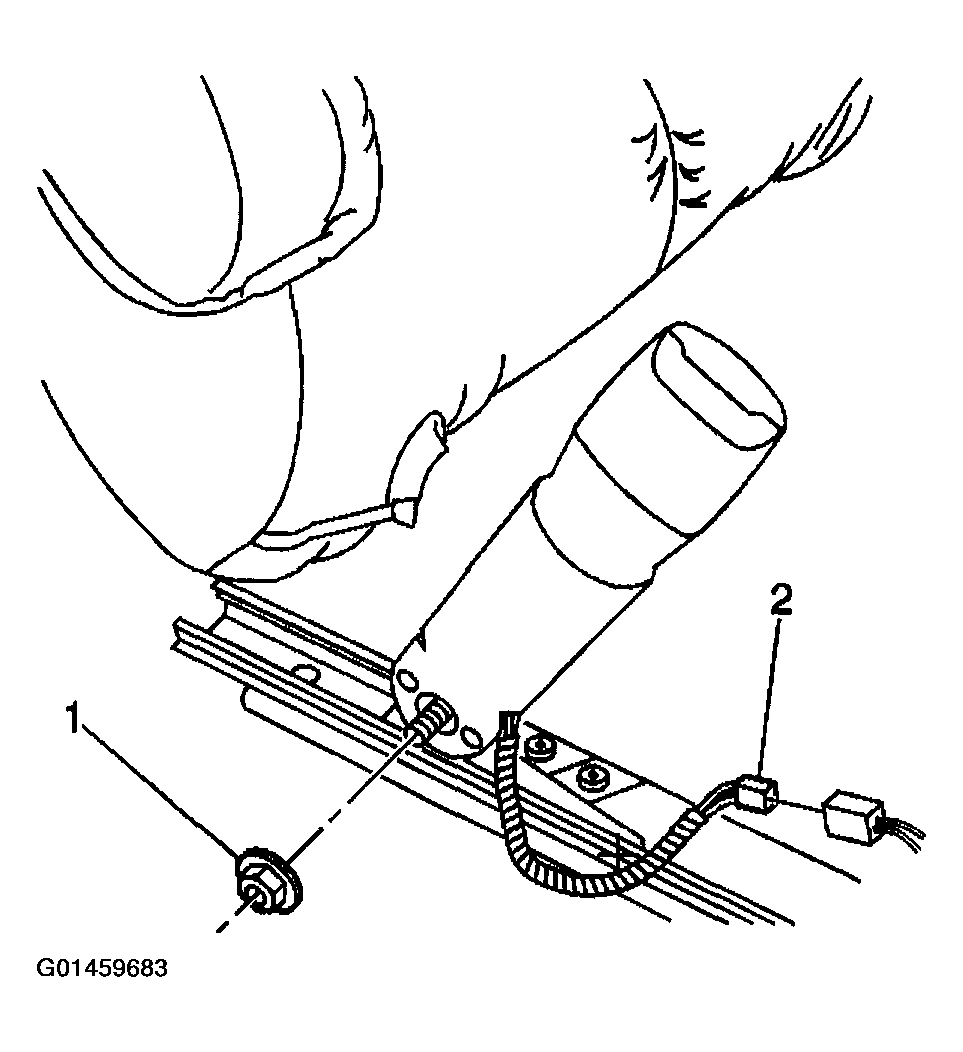

    Fig 1: Removing Front Seat Belt Buckle Nut
    G01459683Courtesy of GENERAL MOTORS CORP.
