Vehicle Speed Sensor Assembly Connector End View, Wiring Harness Side

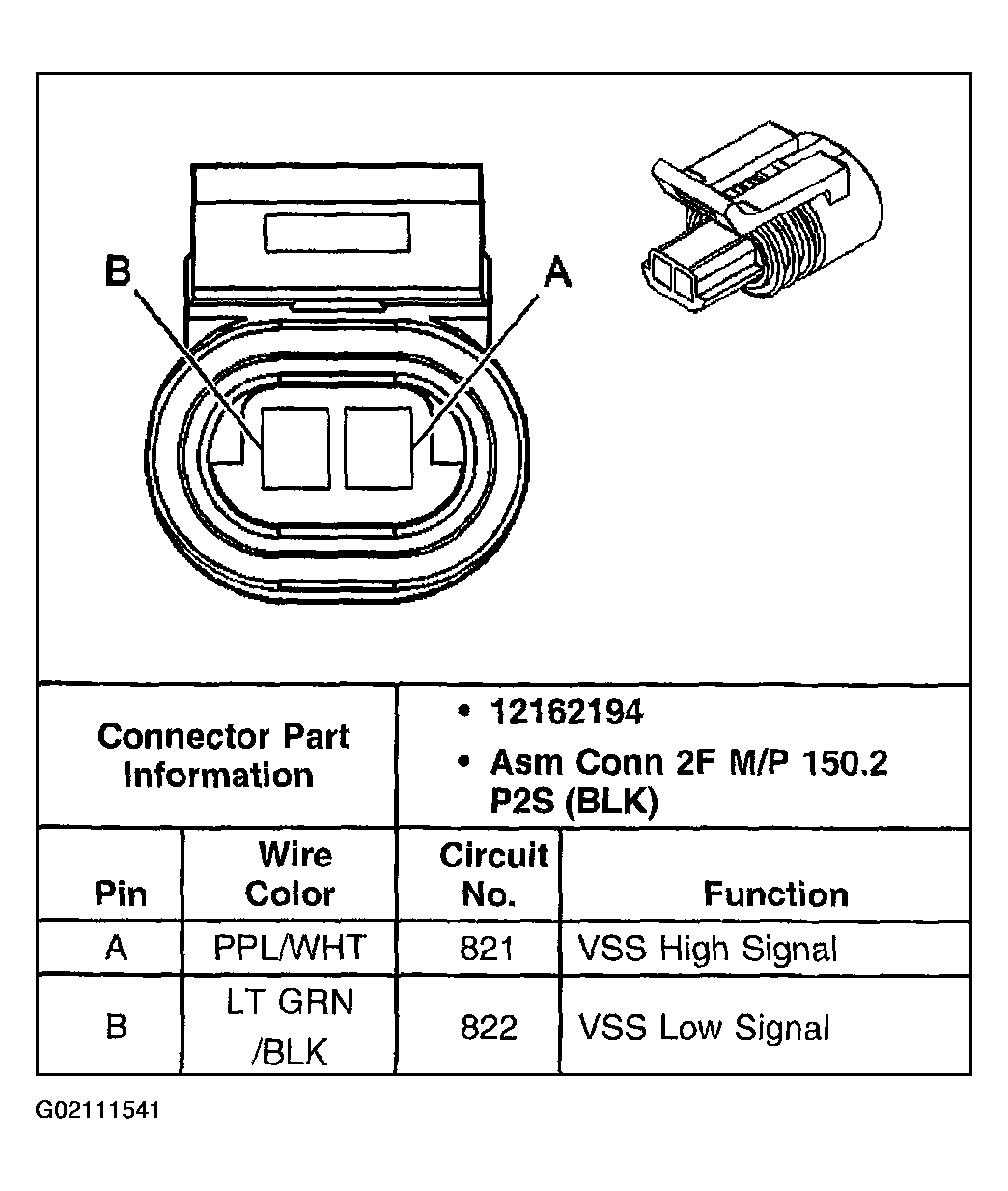

Fig 1: Vehicle Speed Sensor Assembly Connector End View, Wiring Harness Side

G02111541

Courtesy of GENERAL MOTORS CORP.
