Park/Neutral Position Switch - C1 Connector End View

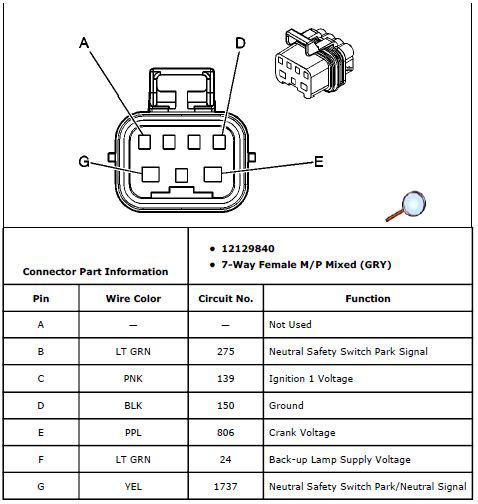

Fig 1: Park/Neutral Position Switch - C1 Connector End View

G00574299

Courtesy of GENERAL MOTORS CORP.
