Auxiliary Mode Actuator Connector End View

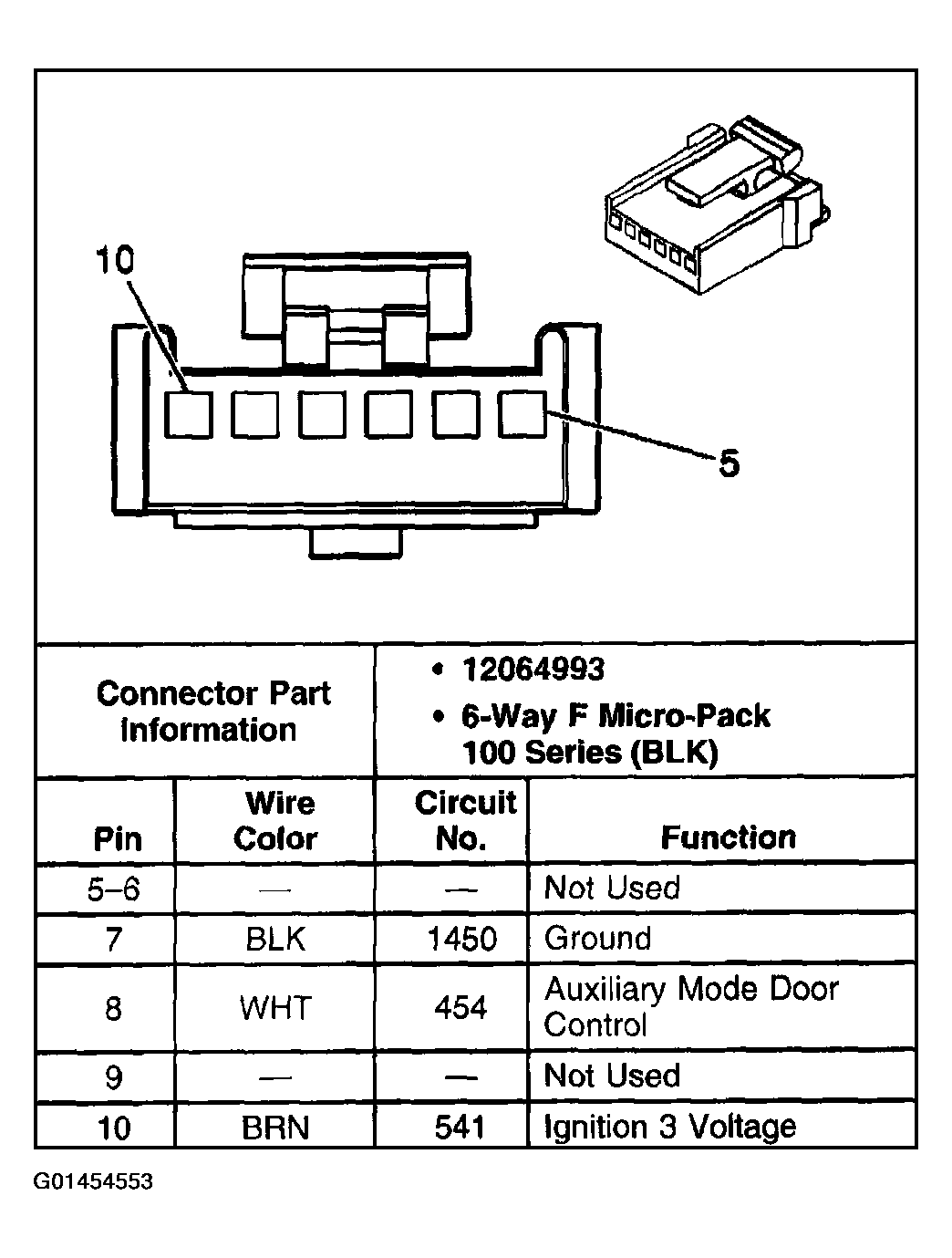

Fig 1: Auxiliary Mode Actuator Connector End View

G01454553

Courtesy of GENERAL MOTORS CORP.
