Auxiliary Air Temperature Sensor Assembly Connector End View - Inside

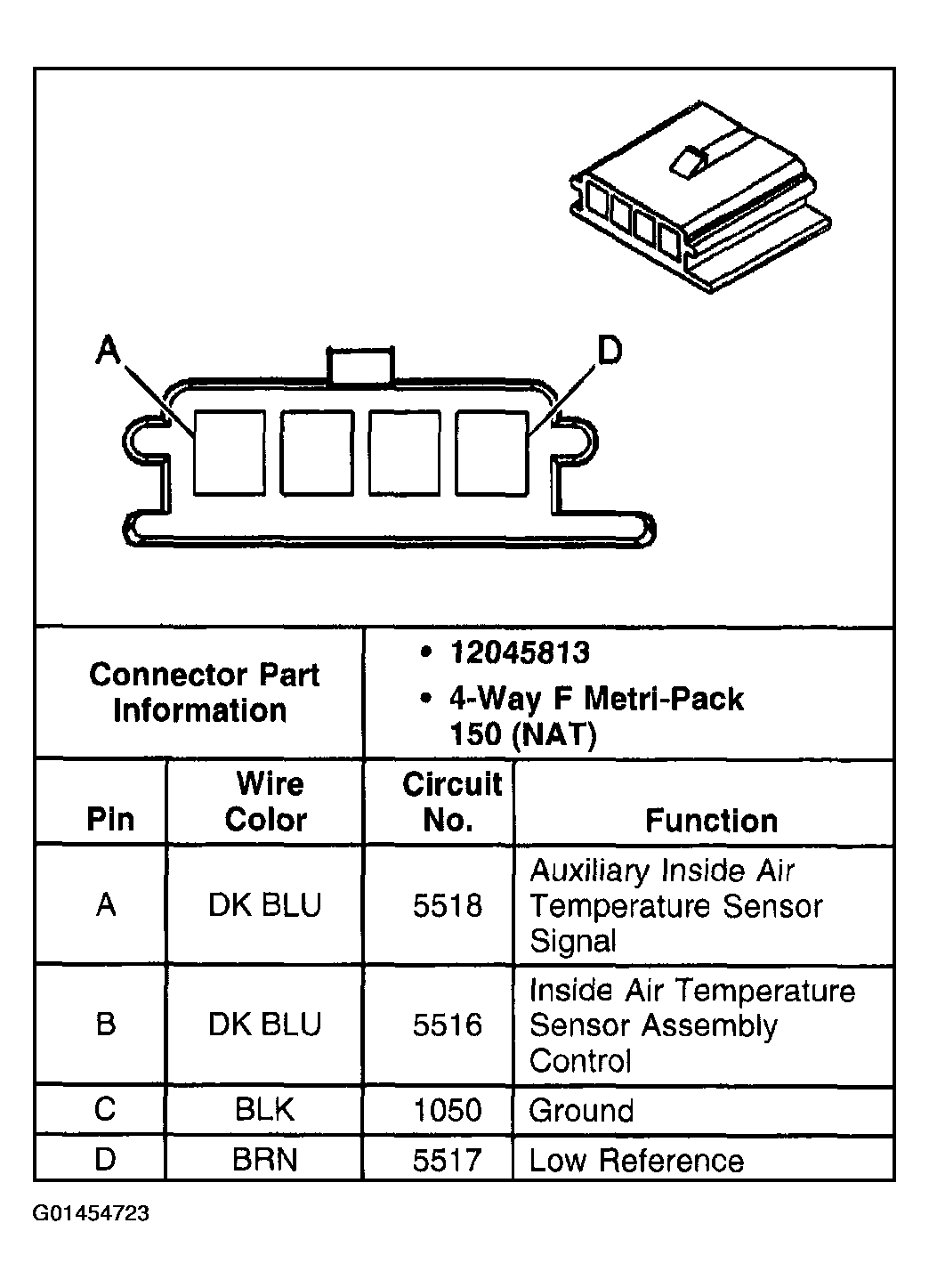

Fig 1: Auxiliary Air Temperature Sensor Assembly Connector End View - Inside

G01454723

Courtesy of GENERAL MOTORS CORP.
