Air Temperature Sensor Connector End View - Upper Right

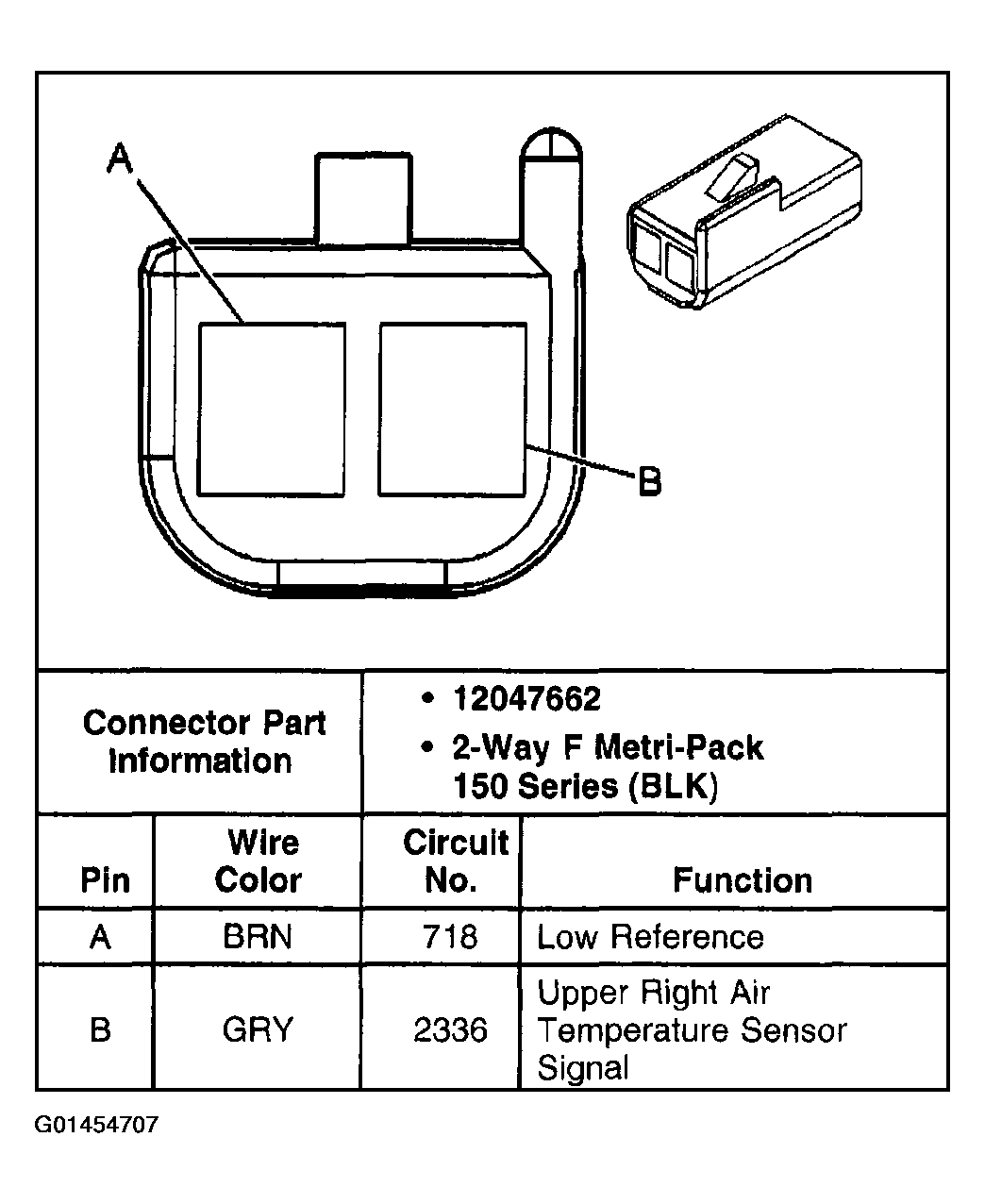

Fig 1: Air Temperature Sensor Connector End View - Upper Right

G01454707

Courtesy of GENERAL MOTORS CORP.
