Air Temperature Sensor Connector End View - Lower Auxiliary

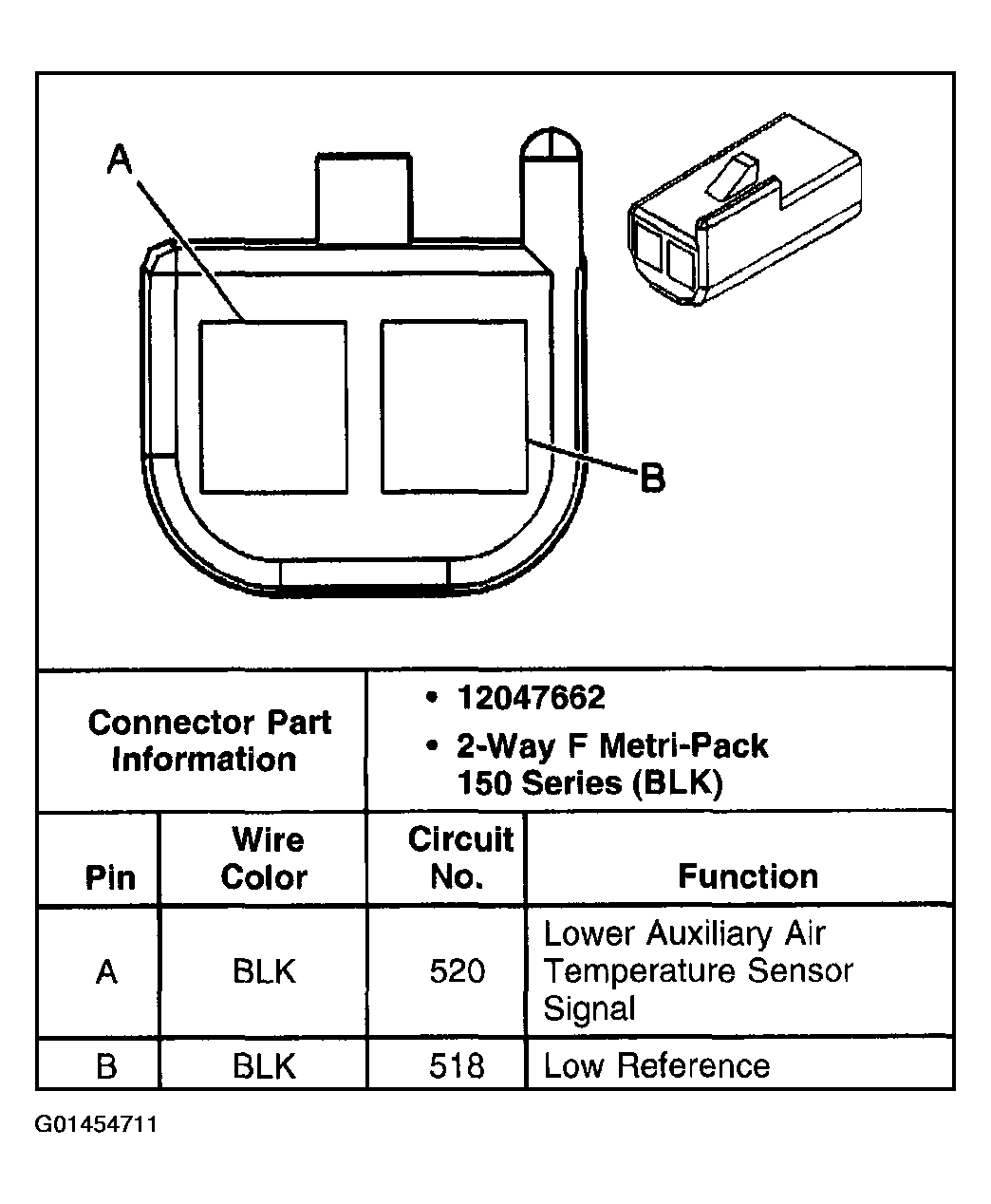

Fig 1: Air Temperature Sensor Connector End View - Lower Auxiliary

G01454711

Courtesy of GENERAL MOTORS CORP.
