Winter Mode Switch/Indicator Always On or Inoperative: Notes

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

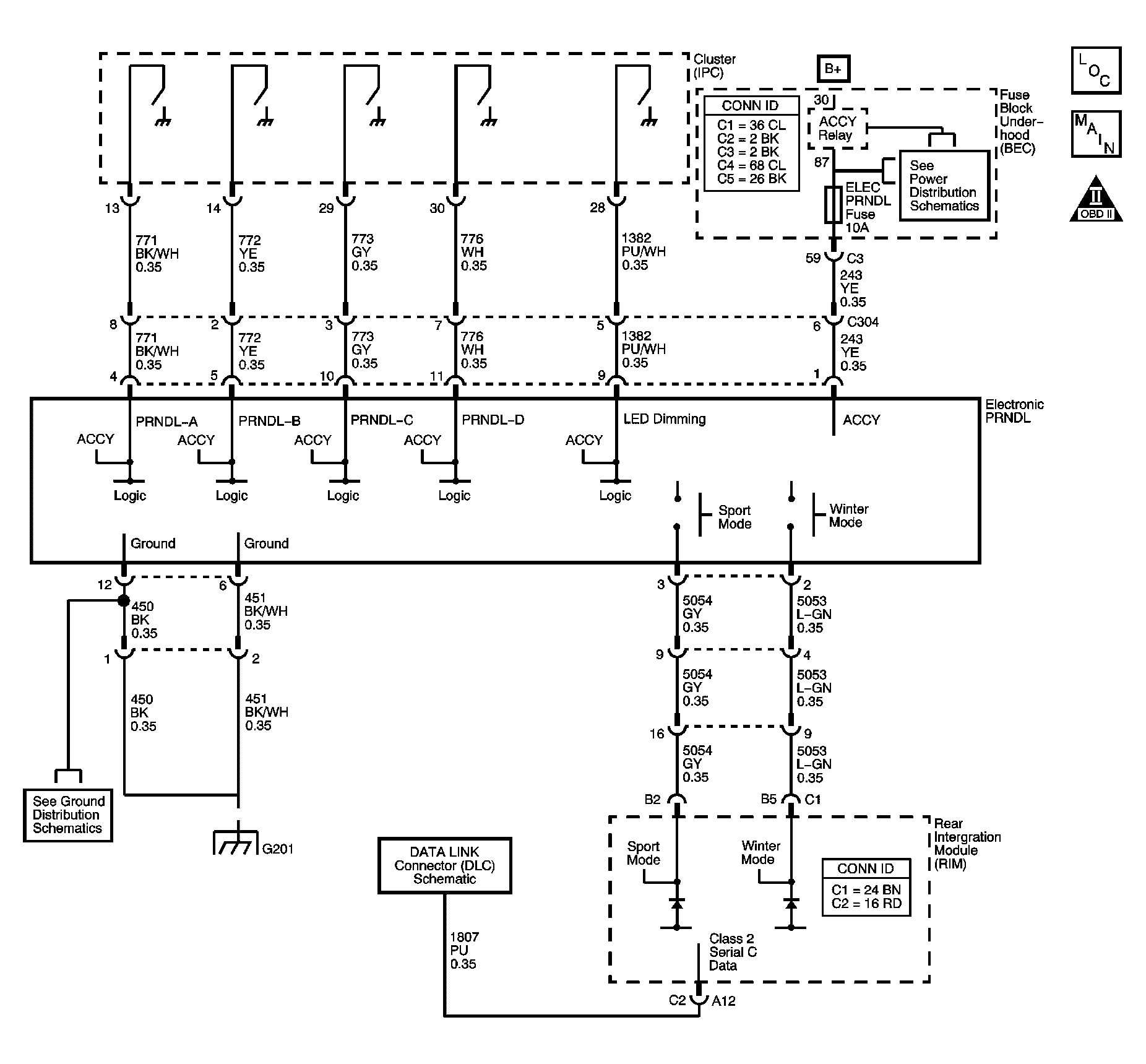

Fig 1: Winter Mode Switch/Indicator Circuit Description
GM1285491Courtesy of GENERAL MOTORS CORP.
