Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

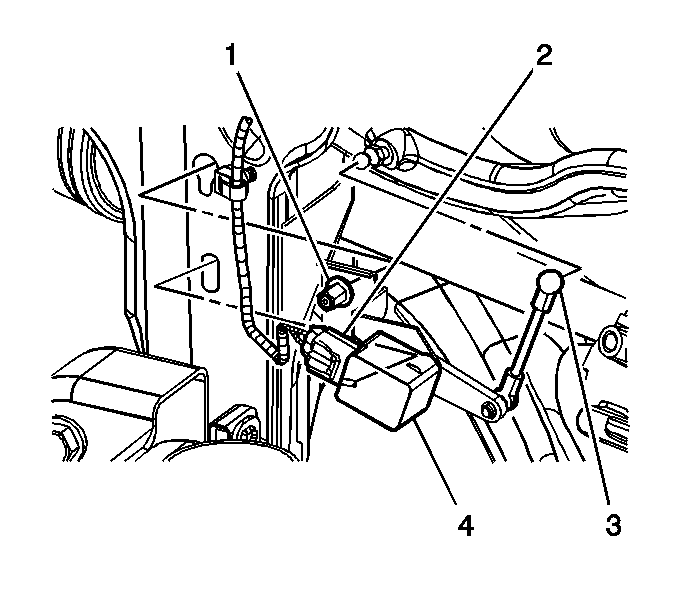

    Fig 1: Identifying Rear Headlamp Leveling Sensor Electrical Connector
    GM802721Courtesy of GENERAL MOTORS CORP.
  1. Position the sensor (3) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt (1) to secure the sensor (4) to the vehicle.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in)

  3. Install ball and socket (3) to sensor (4).
  4. Connect electrical connector (2) to the sensor (4).
  5. Install the right tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
