Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

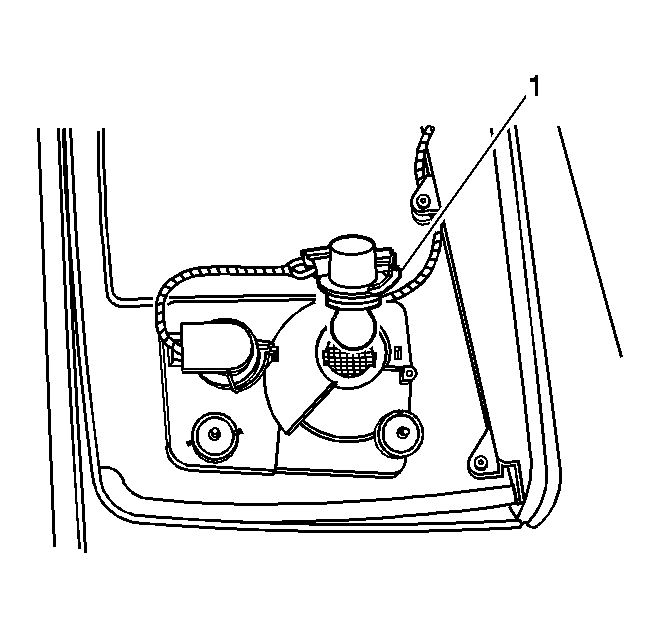

    Fig 1: Removing & Installing Backup Lamp
    GM814400Courtesy of GENERAL MOTORS CORP.
  1. Install the backup lamp bulb into the socket.
  2. Install the backup lamp socket (1) into the rear compartment lid applique by inserting it and turning it clockwise.
  3. Install the rear compartment lid applique to the rear compartment lid. Refer to Compartment Lid Applique Replacement - Rear in Body Rear End.
  4. Close the rear compartment.
