Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Position the battery negative cable to the engine.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

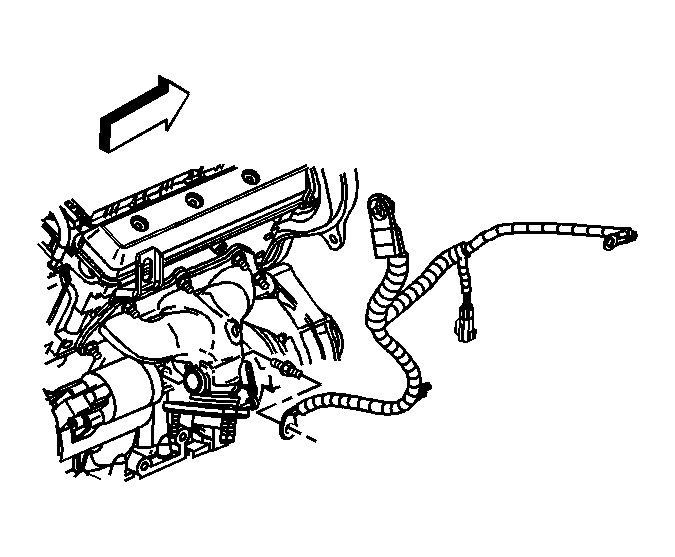

Fig 1: View Of Battery Negative Cable To Engine Block Mounting Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolt securing the battery negative cable to the engine block.
Tighten: Tighten the battery negative cable to engine block bolt to 50 N.m (37 lb ft).
Connect the cable harness clip to the coolant inlet pipe.
Install the starter shield. Refer to Starter Shield Replacement (LA3, LY9) or Starter Shield Replacement (LY7) .
Lower the vehicle.

Fig 2: View Of Battery Area Mounts And Connectors

Courtesy of GENERAL MOTORS CORP.

Install the bolt (1) securing the battery negative cable to the side rail.
Tighten: Tighten the battery negative cable to side rail bolt to 36 N.m (27 lb ft).
Connect the body harness connector (3) to the battery negative cable.
Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
