Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the inside air temperature assembly electrical connector (1).
  2. Connect the inside air temperature assembly tube (3).
  3. Confirm that the foam seal tape is in place and covering the openings on the sides of the grille assembly (2).
  4. Press the inside air temperature assembly (2) into the I/P.

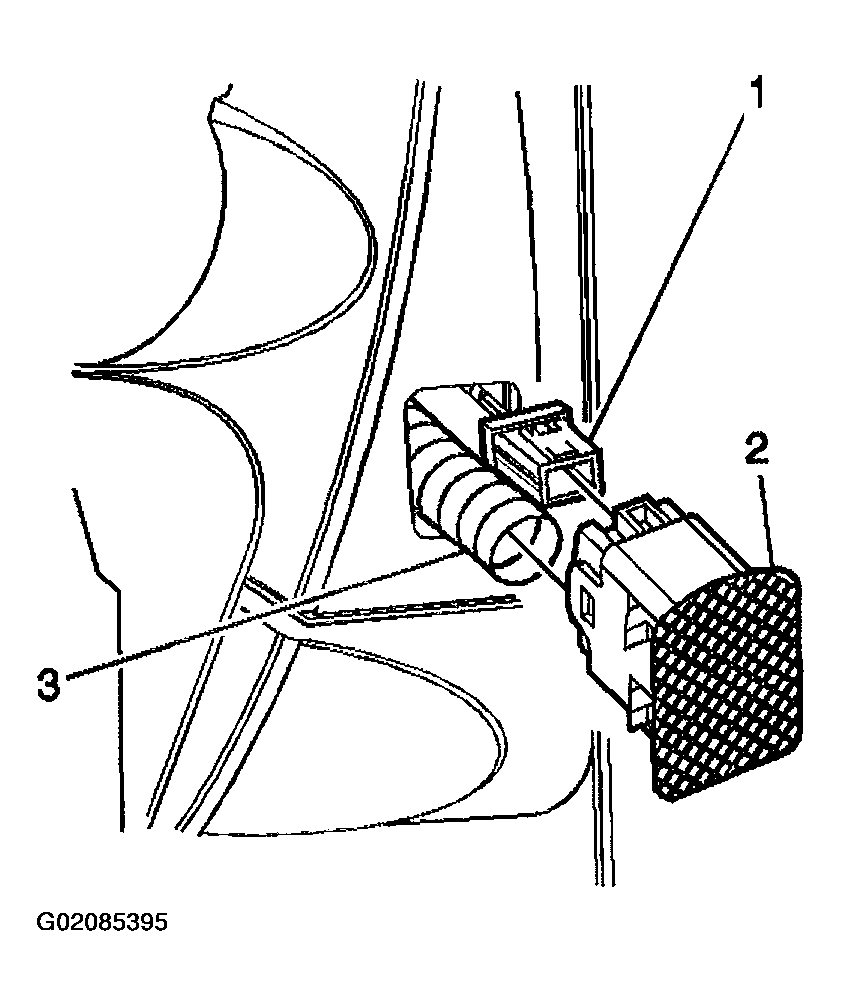

    Fig 1: Inside Air Temperature Assembly Electrical Connector And Tube
    G02085395Courtesy of GENERAL MOTORS CORP.
