Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor control processor.

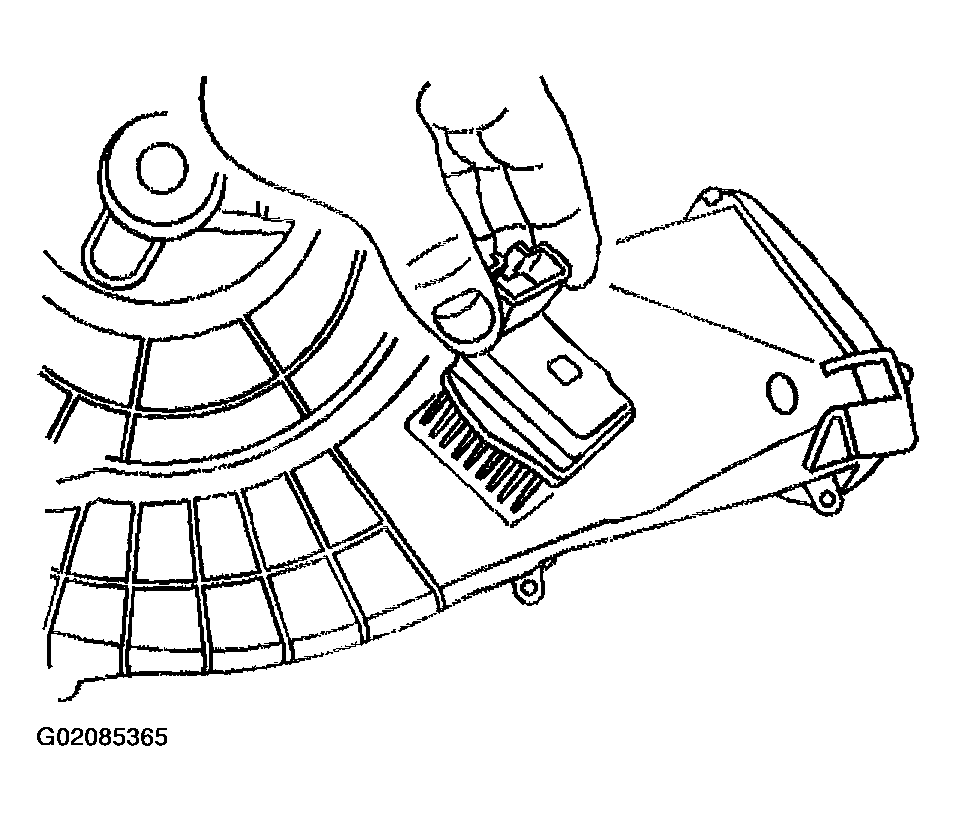

    Fig 1: Blower Motor Control Processor
    G02085365Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the blower motor control processor retaining screw.

    Tighten

    Tighten the screw to 1 N.m (9 lb in).

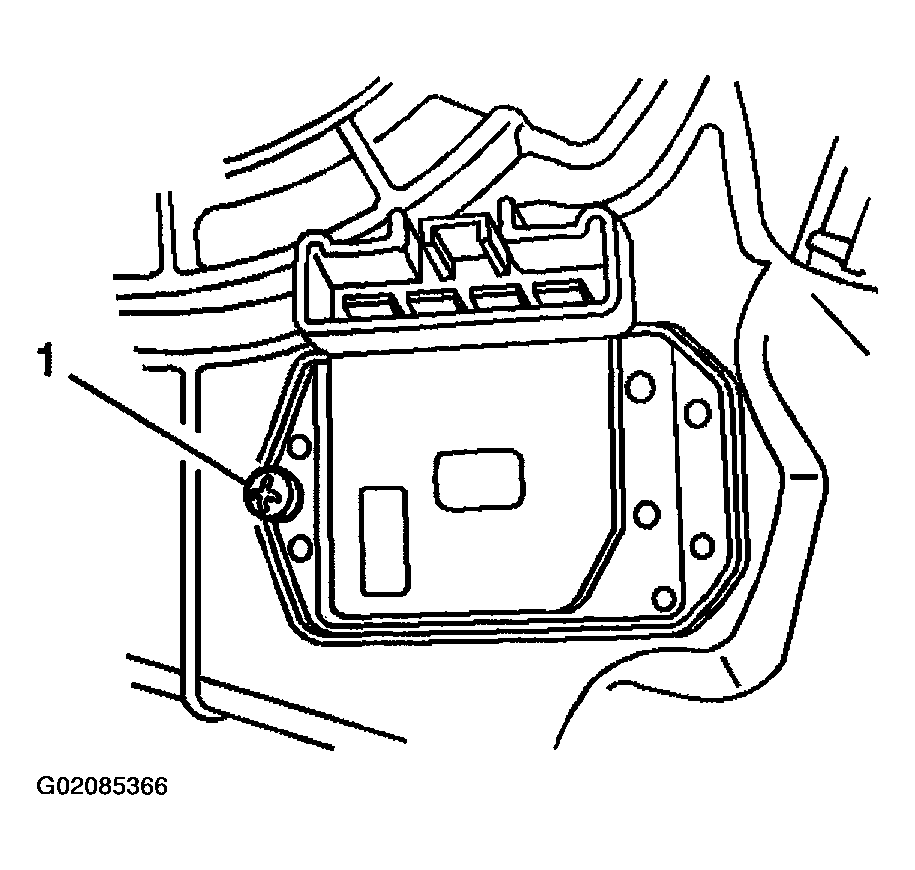

    Fig 2: Blower Motor Control Processor Retaining Screw
    G02085366Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors (1) to the blower motor control processor.
  4. Install the left closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in IP, Gages, and Console.

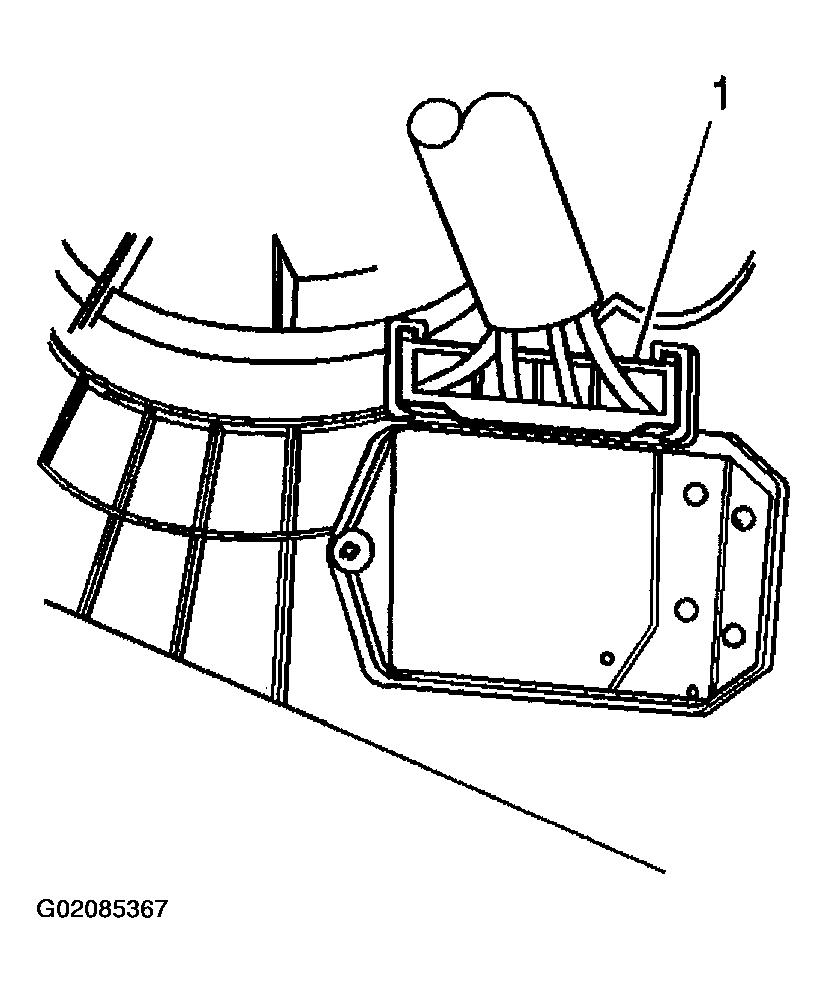

    Fig 3: Blower Motor Control Processor Electrical Connector
    G02085367Courtesy of GENERAL MOTORS CORP.
